Bals 12689 panel socket inclined 125A 5p 1h >50V

Your rating:
Average rating
Rating for Bals 12689 panel socket inclined 125A 5p 1h >50V
( 0 / 5 ) 0 ratings
BALS 12689
This image may differ from the desired article.
1.022,18 EUR
( 1.216,39 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 12689 panel socket inclined 125A 5p 1h >50V
Lieske Part No.:468287
Mfg Part No: 12689
UPC/EAN: 4024941938099
Weight:0.12 kg

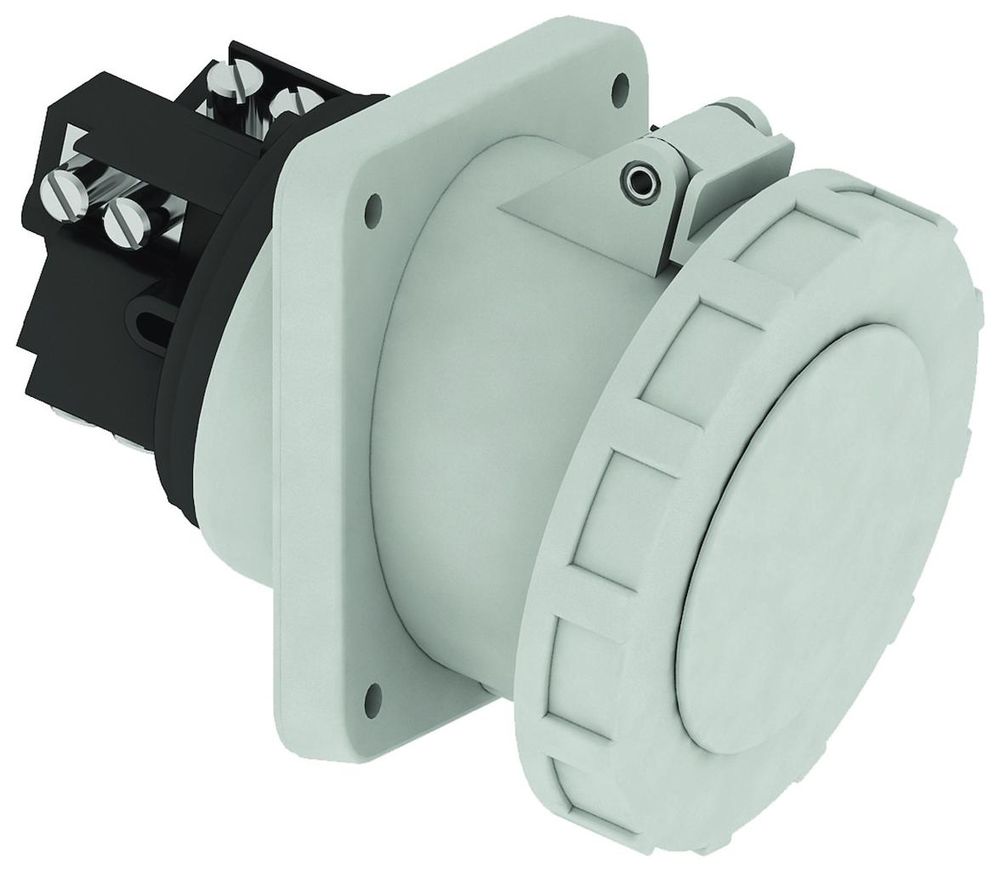

Product information for BALS 12689:

Panel-mounted socket TE inclined
125A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP67
Technical identification colour: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 70.0 qmm (possibly limited by the cable entry used)
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: hinged cover grey RAL 7035, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 135 mm, device width: 125 mm, device depth: 172 mm
Flange dimension vertical: 114 mm, flange dimension horizontal: 114 mm
Hole spacing vertical: 90 mm, Hole spacing horizontal: 90 mm
Type: 12689


Questions & answers

What is the delivery time of Bals 12689 panel socket inclined 125A 5p 1h >50V?

The article Bals 12689 panel socket inclined 125A 5p 1h >50V is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 12689 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 12689 panel socket inclined 125A 5p 1h >50V always at the best possible price. We can give you a discount of 2% on Bals 12689 panel socket inclined 125A 5p 1h >50V if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
