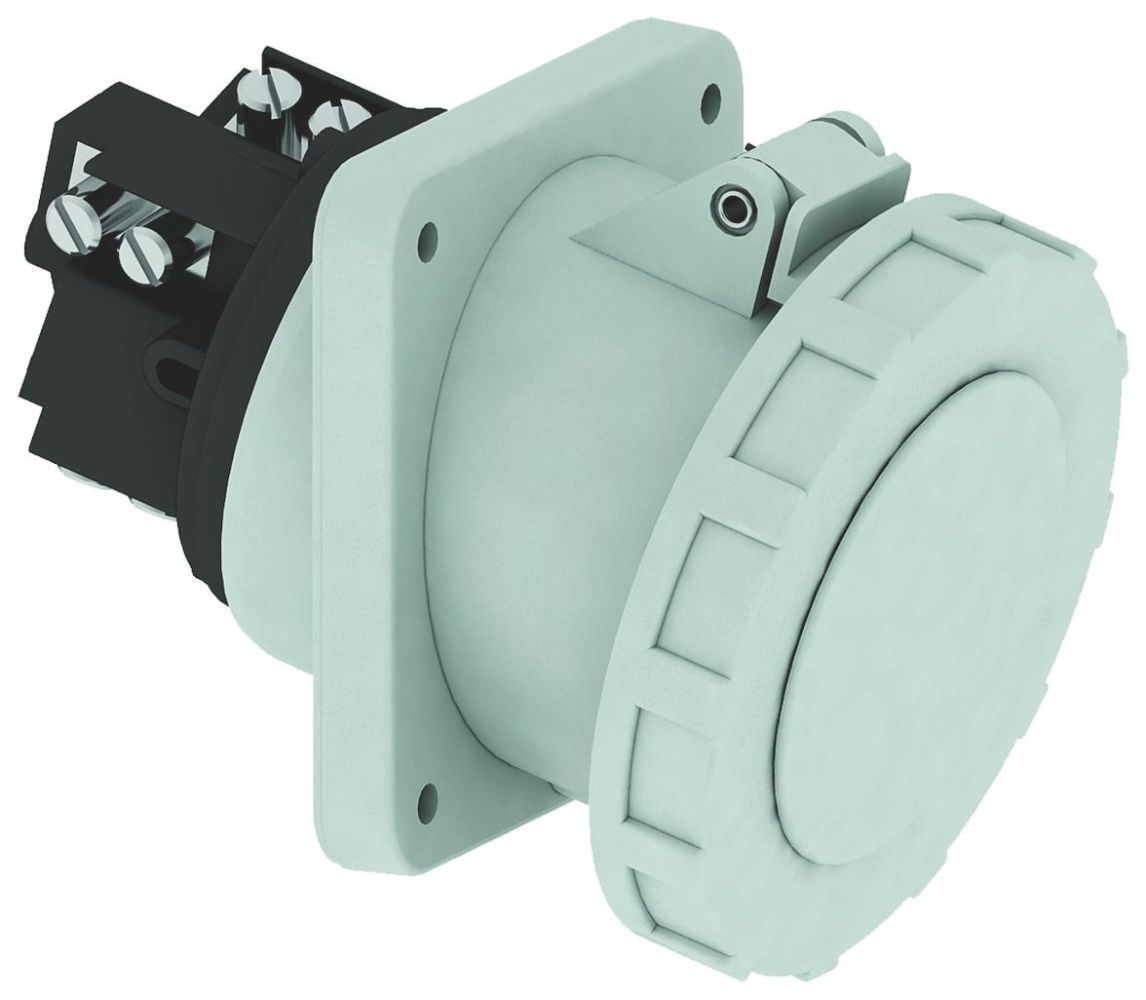

Bals 12689 mounting socket inclined 125 A 5p 1h >50 V
|
1.037,78 EUR |
|||||||||||
|
( 1.234,96 EUR incl. VAT ) ≈ £868.62 | ≈ $1,161.28 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 468287 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 12689 | ||||||||||
| UPC/EAN: | 4024941938099 | ||||||||||
| Weight: | 0.98 kg | ||||||||||
| Type: | 12689 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 12689:
125A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP67
Technical identification colour: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 70.0 qmm (possibly limited by the cable entry used)
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: hinged cover grey RAL 7035, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 135 mm, device width: 125 mm, device depth: 172 mm
Flange dimension vertical: 114 mm, flange dimension horizontal: 114 mm
Hole spacing vertical: 90 mm, Hole spacing horizontal: 90 mm
| General | |
| IEC-amperage | 125 |
| Voltage acc. EN 60309-2 | >50 V grey |
| Number of poles | 5 |
| Clock hour position | 1 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP67 |
| Connection system | Screwed terminal |
| Angle of plug | Angled |
| Material | Plastic |
| Flange size vertical | 114 |
| Drill hole distance vertical | 90 |
| Flange size horizontal | 114 |
| Drill hole distance horizontal | 90 |
| Military model | |
Questions & answers
What is the delivery time of Bals 12689 mounting socket inclined 125 A 5p 1h >50 V?
The article Bals 12689 mounting socket inclined 125 A 5p 1h >50 V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 12689 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 12689 mounting socket inclined 125 A 5p 1h >50 V always at the best possible price. We can give you a discount of 2% on Bals 12689 mounting socket inclined 125 A 5p 1h >50 V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Bals 12689 mounting socket inclined 125 A 5p 1h >50 V we can offer you a price of 991,08 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
