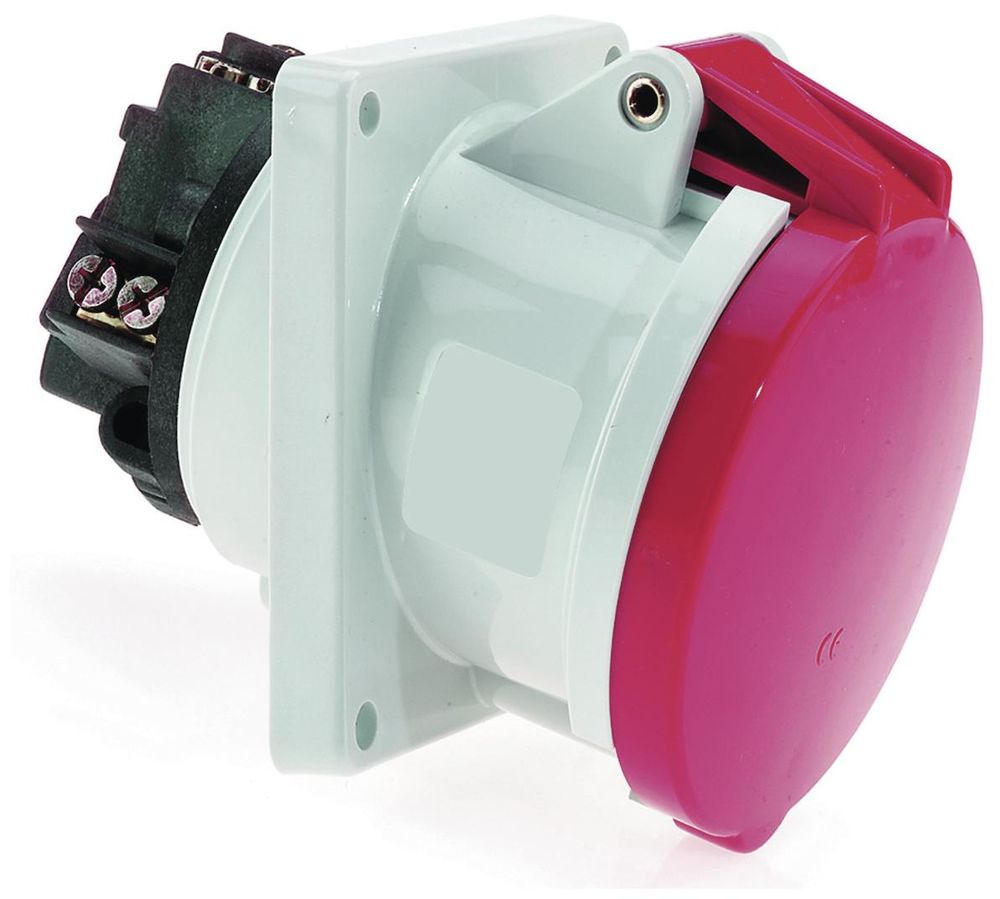

Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44
|
260,20 EUR |
|||||||||||
|
( 309,64 EUR incl. VAT ) ≈ £221.17 | ≈ $292.20 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 227312 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 12567 | ||||||||||
| UPC/EAN: | 4024941125673 | ||||||||||
| Weight: | 0.475 kg | ||||||||||
| Type: | 12567 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 12567:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: hinged lid red RAL 3000, housing grey RAL 7035
Device height: 114 mm, device width: 95 mm, device depth: 147 mm
Flange dimension vertical: 100 mm, flange dimension horizontal: 92 mm
Hole spacing vertical: 85 mm, hole spacing horizontal: 77 mm
Other technical properties: The inclination is 15°
| General | |
| IEC-amperage | 63 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Angle of plug | Angled |
| Material | Plastic |
| Flange size vertical | 100 |
| Drill hole distance vertical | 85 |
| Flange size horizontal | 92 |
| Drill hole distance horizontal | 77 |
| Military model | |
Questions & answers
What is the delivery time of Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44?
The article Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 12567 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44 always at the best possible price. We can give you a discount of 2% on Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44 we can offer you a price of 246,54 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Bals mounting inclined socket 12567, red 63A 5p 6h 200/346 to 240/415V IP44
 |
Bals CEE plug TE 2155, 63A 5p 6h 200/346V-240/415V 50/60Hz IP44
Type: 2155 Lieske Part No.: 212811 Mfg Part No: 2155 |
233,70 EUR
 ≈ £198.64 | ≈ $262.45
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
