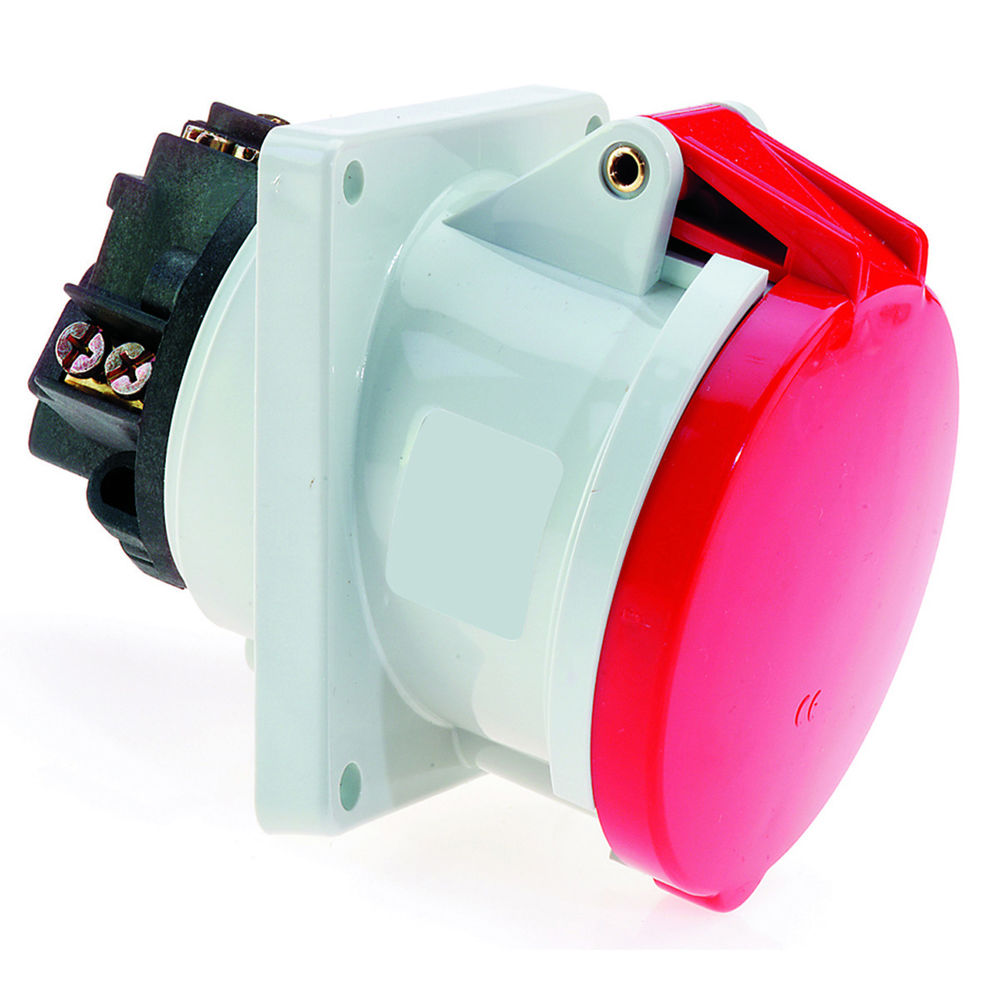

Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red

Your rating:
Average rating
Rating for Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red
( 0 / 5 ) 0 ratings
BALS 12136-P
This image may differ from the desired article.
319,77 EUR
( 380,53 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red
Lieske Part No.:468751
Mfg Part No: 12136-P
UPC/EAN: 4024941876605
Weight:0.12 kg

Product information for BALS 12136-P:

Surface-mounted socket inclined
63A 3p (2P+PE) 400V (380 - 415V~) 9h IP44
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device color: hinged cover red RAL 3000, housing gray RAL 7035
Device height: 119 mm, device width: 114 mm, device depth: 148 mm
Flange dimension vertical: 114 mm, flange dimension horizontal: 114 mm
Drill hole spacing vertical: 90 mm, drill hole spacing horizontal: 90 mm
Other technical properties: The inclination is 15°, a pilot contact is available
Type: 12136-P


Questions & answers

What is the delivery time of Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red?

The article Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 12136-P to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red always at the best possible price. We can give you a discount of 2% on Bals 12136-P panel socket inclined 63A 3p 400V 9h IP44 red if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
