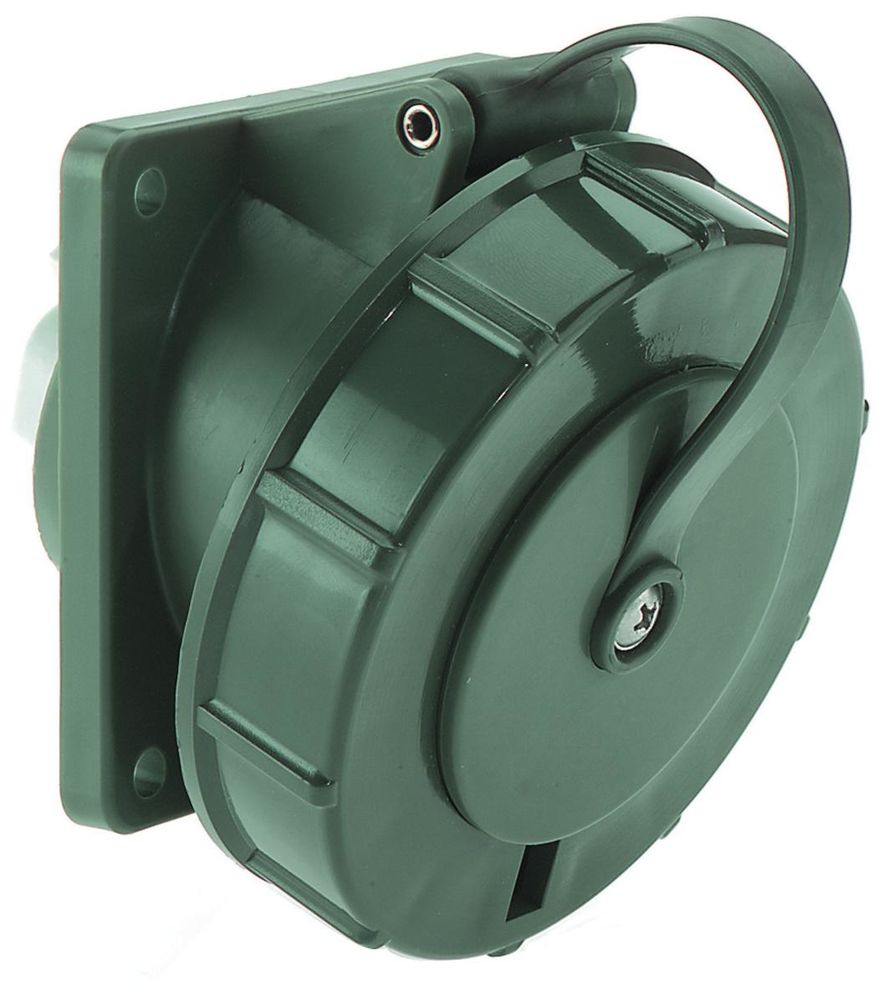

Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67

Your rating:
Average rating
Rating for Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67
( 0 / 5 ) 0 ratings
BALS 12087
This image may differ from the desired article.
203,94 EUR
( 242,69 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67
Lieske Part No.:460825
Mfg Part No: 12087
UPC/EAN: 4024941120876
Weight:0.12 kg

Product information for BALS 12087:

QUICK-CONNECT TN panel socket inclined
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9, housing grey RAL 7035
Device height: 110 mm, device width: 101.5 mm, device depth: 119 mm
Vertical flange dimension: 85 mm, flange dimension horizontal: 85 mm,
hole spacing vertical: 70 mm, hole spacing horizontal: 70 mm
Other technical properties: The inclination is 20°, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 BS 005, supply no.: 5935-12-306-7781
Type: 12087


Questions & answers

What is the delivery time of Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67?

The article Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 12087 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 12087 panel socket TN-QC with NG 32A 5p 400V 6h IP67 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
