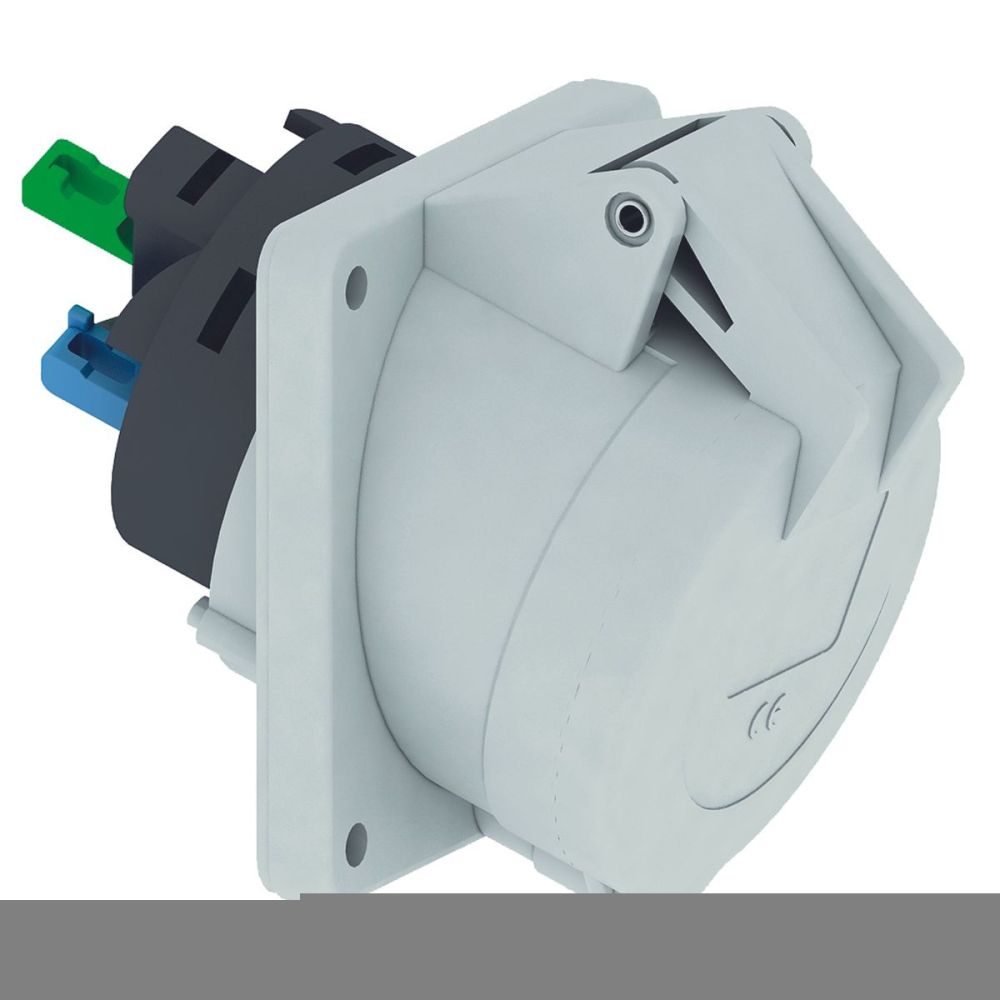

Bals 120256 mounting socket inclined 32 A 5p >50 V 1 h IP44
|
161,21 EUR |
|||||||||||
|
( 191,84 EUR incl. VAT ) ≈ £134.93 | ≈ $180.39 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 466936 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 120256 | ||||||||||
| UPC/EAN: | 4024941938785 | ||||||||||
| Weight: | 0.265 kg | ||||||||||
| Type: | 120256 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 120256:
32A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification color: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device color: hinged cover grey RAL 7035, housing grey RAL 7035
Device height: 102 mm, device width: 85 mm, device depth: 119 mm
Flange dimension vertical: 85 mm, Flange dimension horizontal: 85 mm
Drill hole spacing vertical: 70 mm, Hole spacing horizontal: 70 mm
Other technical characteristics: The inclination is 20°
| General | |
| IEC-amperage | 32 |
| Voltage acc. EN 60309-2 | >50 V grey |
| Number of poles | 5 |
| Clock hour position | 1 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Angled |
| Material | Plastic |
| Flange size vertical | 85 |
| Drill hole distance vertical | 70 |
| Flange size horizontal | 85 |
| Drill hole distance horizontal | 70 |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Military model | |
