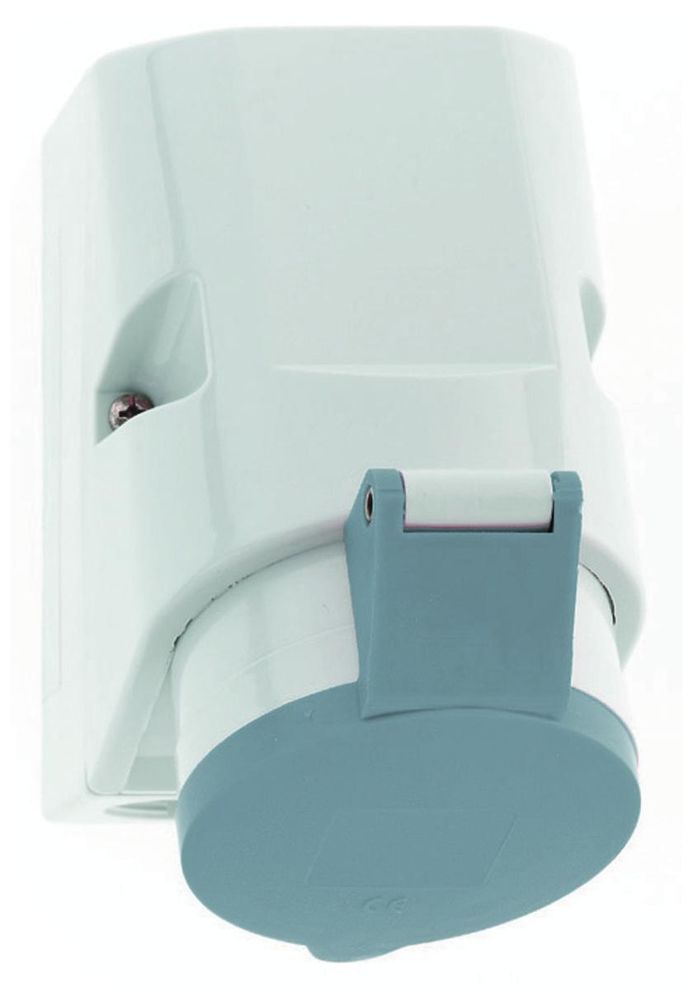

BALS 11977 wall outlet QUICK-CONNECT, TE 32A 3p 230V 6h IP44 Geh.Gr:126x83

Your rating:
Average rating
Rating for BALS 11977 wall outlet QUICK-CONNECT, TE 32A 3p 230V 6h IP44 Geh.Gr:126x83
( 4.5 / 5 ) 8 ratings
BALS 11977
This image may differ from the desired article.
157,21 EUR
( 187,08 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 11977 wall outlet QUICK-CONNECT, TE 32A 3p 230V 6h IP44 Geh.Gr:126x83
Lieske Part No.:958506
Mfg Part No: 11977
UPC/EAN: 4024941119771
Weight:0.12 kg

Product information for BALS 11977:

Wall socket QUICK-CONNECT TE
32A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification color: blue RAL 5015
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 1xM25 top, 2xM25 bottom
Device color: hinged lid blue RAL 5015, housing base gray RAL 7035, housing top gray RAL 7035, collar gray RAL 7035
Device height: 156 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom. The housing base can be rotated by 180°. There are 4 mounting holes in the housing base for breaking out
Type: 11977
