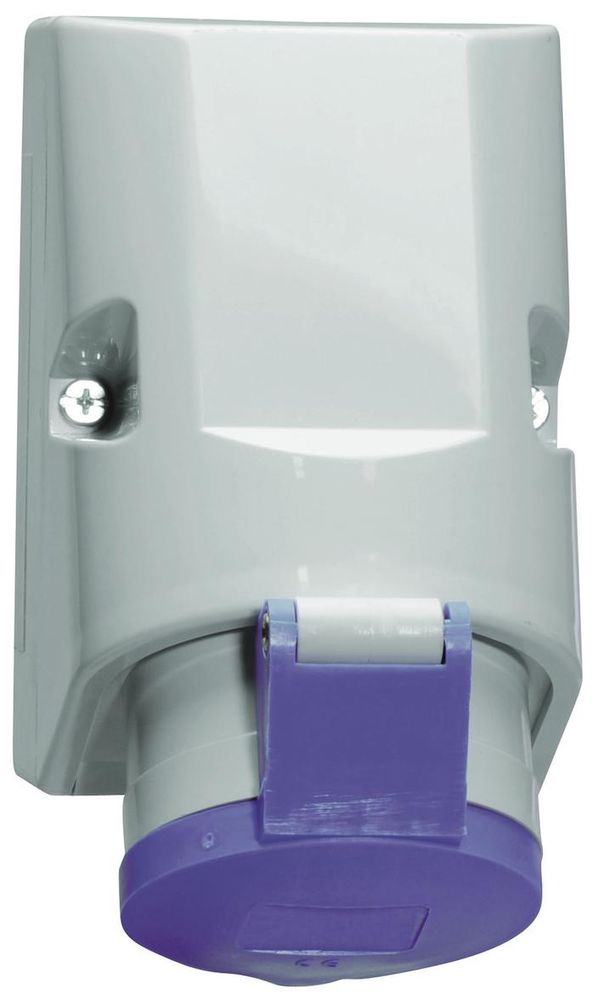

Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz

Your rating:
Average rating
Rating for Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz
( 4.8 / 5 ) 8 ratings
BALS 11949
This image may differ from the desired article.
109,10 EUR
( 129,83 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz
Lieske Part No.:321165
Mfg Part No: 11949
UPC/EAN: 4024941119498
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
6100,92 EUR
1292,74 EUR
2484,55 EUR
3676,37 EUR

Product information for BALS 11949:

Wall socket QUICK-CONNECT
32A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: hinged lid blue RAL 5015, housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 156 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is once at the top open and closed twice at the bottom, the lower part of the housing can be rotated by 180°, there are 4 mounting holes in the housing base for breaking out


Questions & answers

What is the delivery time of Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz?

The article Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 11949 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz always at the best possible price. We can give you a discount of 2% on Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz we can offer you a price of 100,92 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals wall outlet Quick-Connect 11949, 126x83mm blue 32A 3p 6h 200-250V 50-60Hz via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
