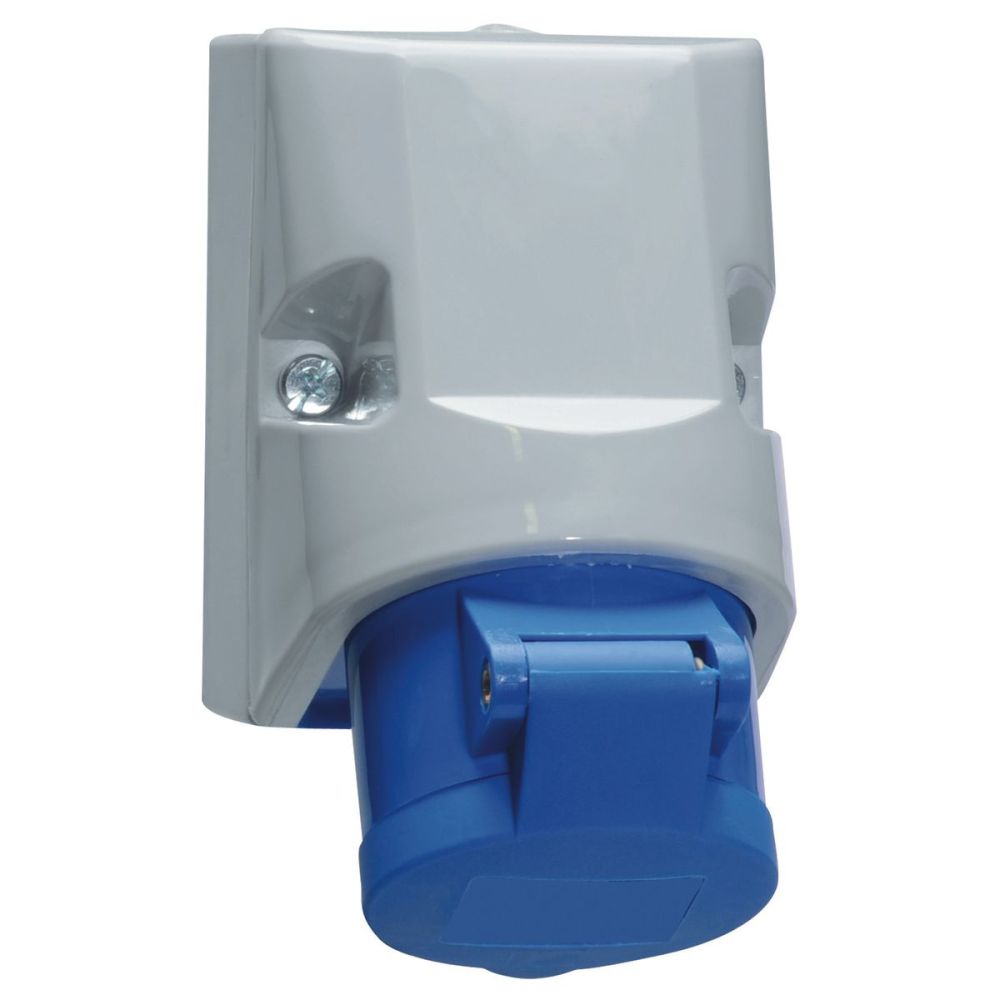

Bals 11930 wall socket QUICK-CONNECT 16 A 3-pole 230 V 6 h IP44 enclosure size: 87x64
|
89,97 EUR |
|||||||||||
|
( 107,06 EUR incl. VAT ) ≈ £75.30 | ≈ $100.68 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 466652 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11930 | ||||||||||
| UPC/EAN: | 4024941119306 | ||||||||||
| Weight: | 0.18 kg | ||||||||||
| Type: | 11930 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 11930:
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Housing size: 87x64 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 1xM20 at the top
Device colour: collar blue RAL 5015, hinged lid blue RAL 5015, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 118 mm, device width: 64 mm, device depth: 104 mm
Other technical properties: The cable entry is open at the top, closed at the bottom and at the back. The housing base can be rotated 180°
| General | |
| IEC-amperage | 16 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Clock hour position | 6 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Mounting method | Surface mounted (plaster) |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 11930 wall socket QUICK-CONNECT 16 A 3-pole 230 V 6 h IP44 enclosure size: 87x64?
The article Bals 11930 wall socket QUICK-CONNECT 16 A 3-pole 230 V 6 h IP44 enclosure size: 87x64 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 11930 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 11930 wall socket QUICK-CONNECT 16 A 3-pole 230 V 6 h IP44 enclosure size: 87x64 always at the best possible price. We can give you a discount of 2% on Bals 11930 wall socket QUICK-CONNECT 16 A 3-pole 230 V 6 h IP44 enclosure size: 87x64 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bals 11930 wall socket QUICK-CONNECT 16 A 3-pole 230 V 6 h IP44 enclosure size: 87x64 we can offer you a price of 77,15 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
