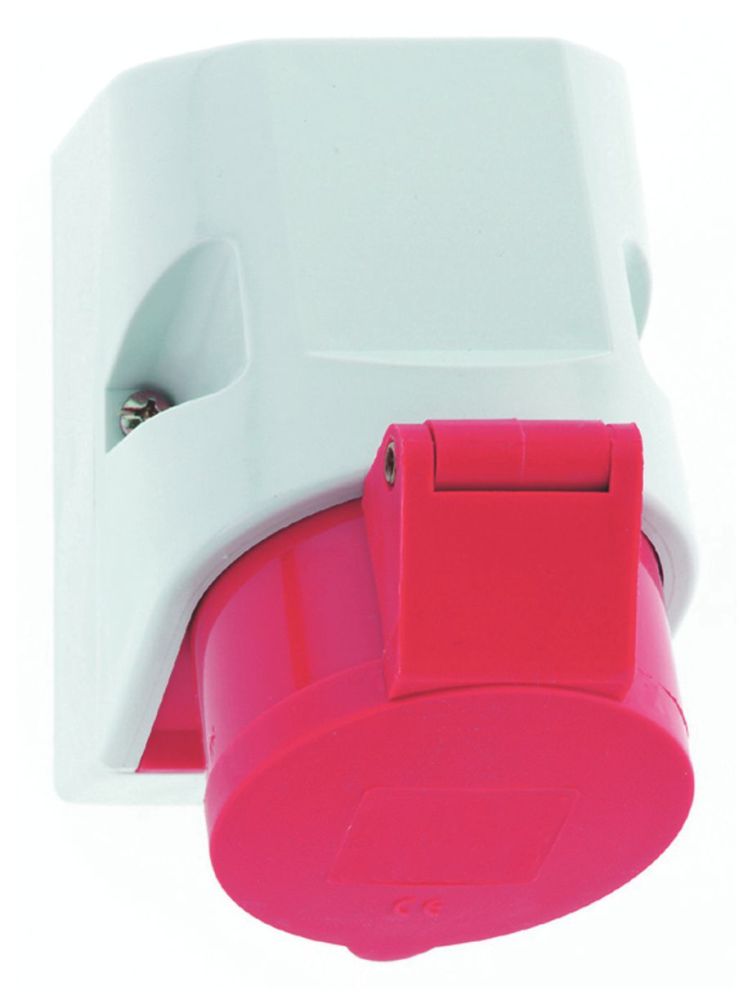

Bals 11907 wall socket QUICK-CONNECT 16A 4p 400V 6h IP44 enclosure size:100x75
|
92,43 EUR |
|||||||||||
|
( 109,99 EUR incl. VAT ) ≈ £77.36 | ≈ $103.43 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 605804 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11907 | ||||||||||
| UPC/EAN: | 4024941119078 | ||||||||||
| Weight: | 0.238 kg | ||||||||||
| Type: | 11907 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 11907:
16A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 100x75 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 1xM20 at the top
Device colour: collar red RAL 3000, hinged lid red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 129 mm, device width: 75 mm, device depth: 108 mm
Other technical properties: The cable entry is open at the top, at the bottom and at the back closed, the housing base can be rotated by 180°
| General | |
| IEC-amperage | 16 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Mounting method | Surface mounted (plaster) |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 11907 wall socket QUICK-CONNECT 16A 4p 400V 6h IP44 enclosure size:100x75?
The article Bals 11907 wall socket QUICK-CONNECT 16A 4p 400V 6h IP44 enclosure size:100x75 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 11907 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 11907 wall socket QUICK-CONNECT 16A 4p 400V 6h IP44 enclosure size:100x75 always at the best possible price. We can give you a discount of 2% on Bals 11907 wall socket QUICK-CONNECT 16A 4p 400V 6h IP44 enclosure size:100x75 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bals 11907 wall socket QUICK-CONNECT 16A 4p 400V 6h IP44 enclosure size:100x75 we can offer you a price of 87,58 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
