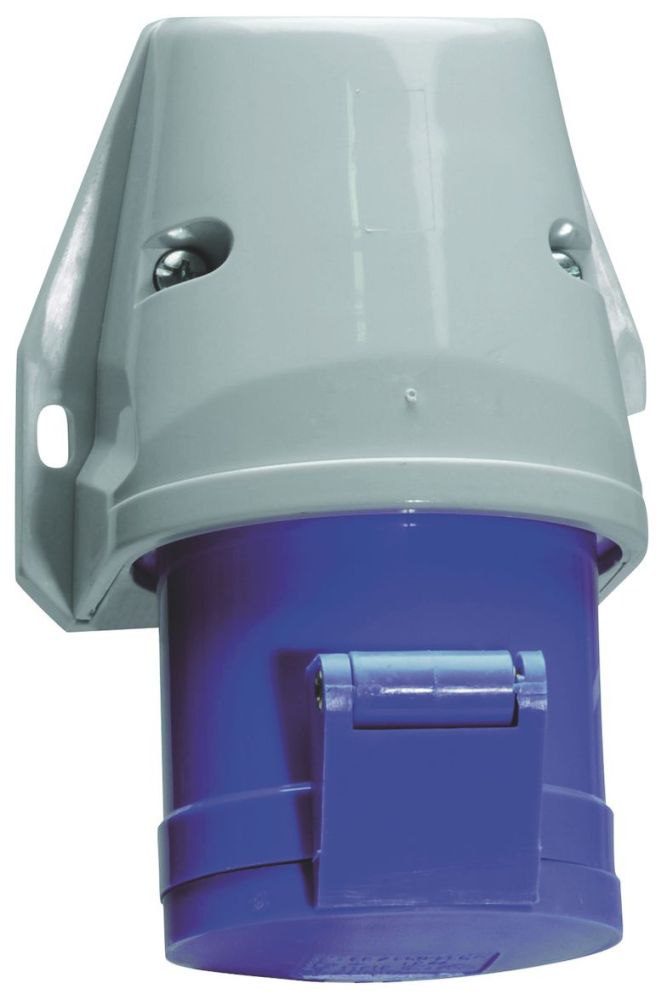

Bals 11725 wall socket 16 A 5p 230 V 9h IP44 blue W x H x D: 131 x 87 x 99 mm
|
102,31 EUR |
|||||||||||
|
( 121,75 EUR incl. VAT ) ≈ £85.63 | ≈ $114.48 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 460919 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11725 | ||||||||||
| UPC/EAN: | 4024941117258 | ||||||||||
| Weight: | 0.236 kg | ||||||||||
| Type: | 11725 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 11725:
16A 5p (3P+N+PE) 230V (120/208 - 144/250V~) 9h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Housing size: 90x87 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 at the top
Device colour: collar blue RAL 5015, hinged lid blue RAL 5015, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 131 mm, device width: 87 mm, device depth: 99 mm
Other technical properties: The cable entry is open at the top and closed at the bottom
| General | |
| IEC-amperage | 16 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Clock hour position | 9 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | External mounting |
| Mounting method | Surface mounted (plaster) |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 11725 wall socket 16 A 5p 230 V 9h IP44 blue W x H x D: 131 x 87 x 99 mm?
The article Bals 11725 wall socket 16 A 5p 230 V 9h IP44 blue W x H x D: 131 x 87 x 99 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 11725 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 11725 wall socket 16 A 5p 230 V 9h IP44 blue W x H x D: 131 x 87 x 99 mm always at the best possible price. We can give you a discount of 2% on Bals 11725 wall socket 16 A 5p 230 V 9h IP44 blue W x H x D: 131 x 87 x 99 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 11725 wall socket 16 A 5p 230 V 9h IP44 blue W x H x D: 131 x 87 x 99 mm we can offer you a price of 96,94 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
