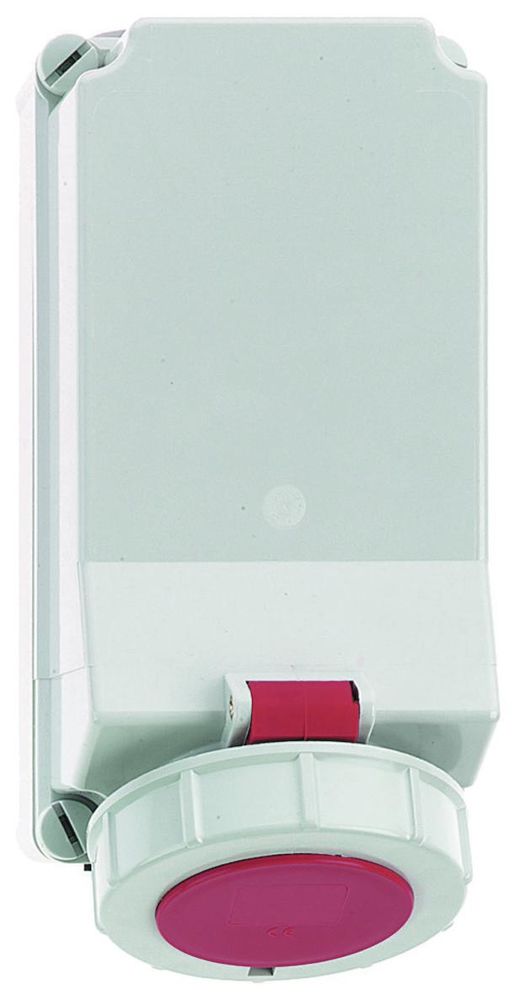

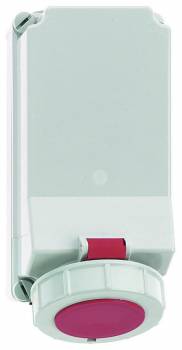

Bals 11556 wall socket TE 32A 4p 380V to 440V 3h IP67 housing size: 225x118
|
260,47 EUR |
|||||||||||
|
( 309,96 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1439717 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11556 | ||||||||||
| UPC/EAN: | 4024941115568 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 11556:
32A 4p (3P+PE) 380 and 440V (380V~(50Hz) 440V~(60Hz) Only for refrigerated containers) 3h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 225x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 2xM25 top, 2xM25 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical properties: The cable entry is open once at the top, closed once at the top, closed twice at the bottom
Type: 11556
