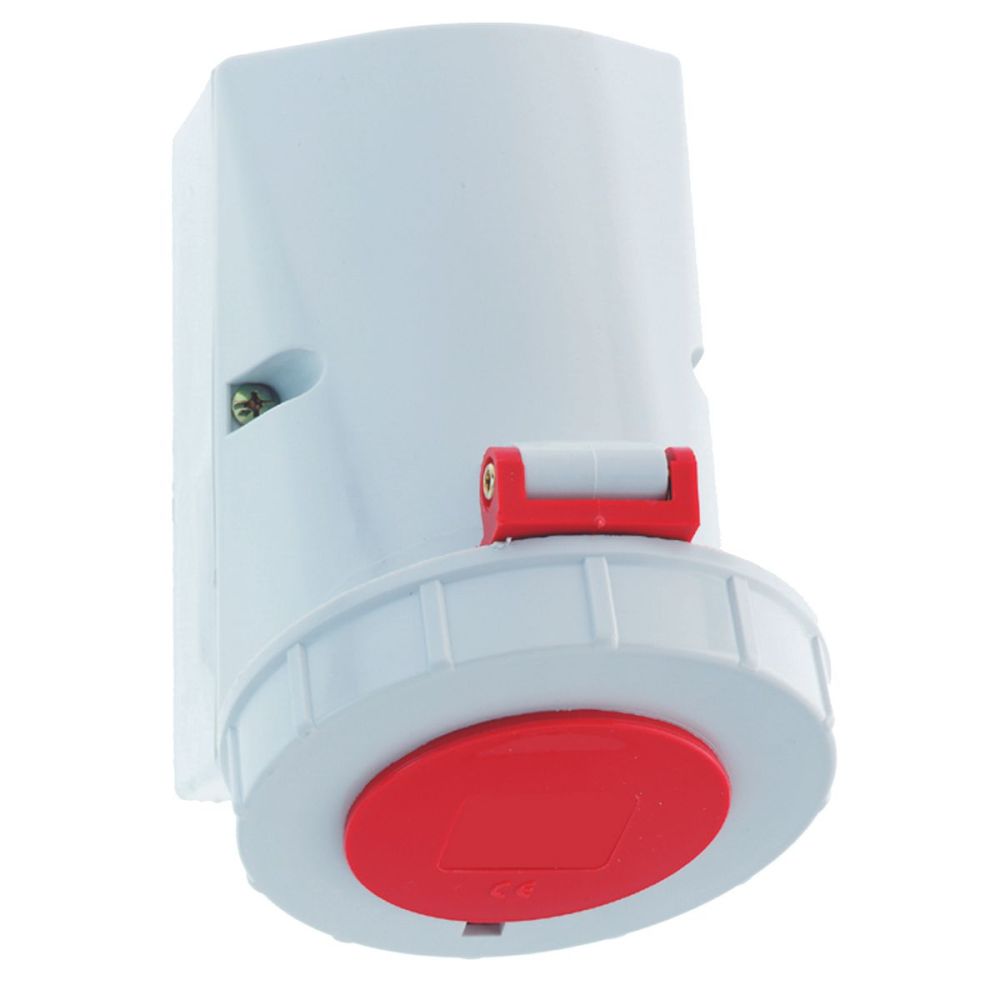

Bals 1155 wall socket 32 A 5p 400 V 6h IP67 enclosure size: 126x83
|
249,28 EUR |
|||||||||||
|
( 296,64 EUR incl. VAT ) ≈ £208.65 | ≈ $278.94 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 296278 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1155 | ||||||||||
| UPC/EAN: | 4024941011556 | ||||||||||
| Weight: | 0.484 kg | ||||||||||
| Type: | 1155 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 1155:
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 161 mm, device width: 101 mm, device depth: 141 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°. There are 4 mounting holes in the housing base for breaking out
| General | |
| IEC-amperage | 32 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Mounting method | Surface mounted (plaster) |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 1155 wall socket 32 A 5p 400 V 6h IP67 enclosure size: 126x83?
The article Bals 1155 wall socket 32 A 5p 400 V 6h IP67 enclosure size: 126x83 is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 1155 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 1155 wall socket 32 A 5p 400 V 6h IP67 enclosure size: 126x83 always at the best possible price. We can give you a discount of 2% on Bals 1155 wall socket 32 A 5p 400 V 6h IP67 enclosure size: 126x83 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 1155 wall socket 32 A 5p 400 V 6h IP67 enclosure size: 126x83 we can offer you a price of 213,76 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
