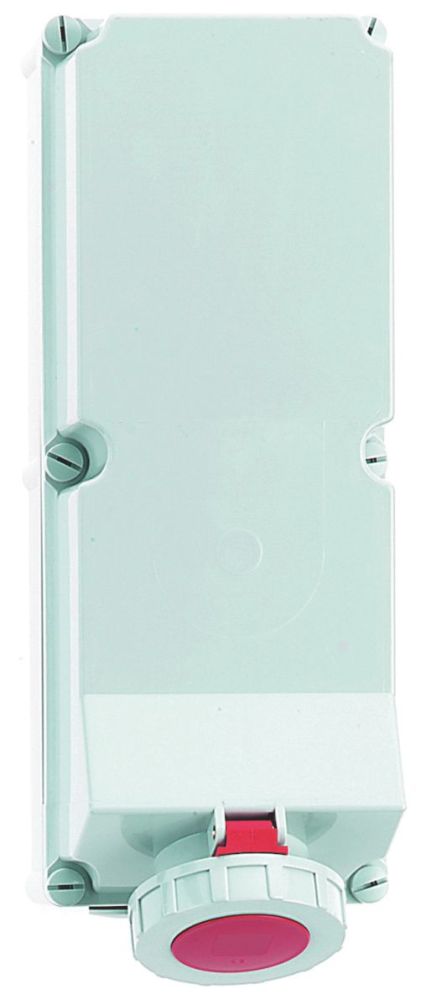

Bals 11479 wall socket GT 125 A 5p 400 V 6h IP67 enclosure size: 460x180
|
1.561,99 EUR |
|||||||||||
|
( 1.858,77 EUR incl. VAT ) ≈ £1,307.39 | ≈ $1,747.87 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 427888 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11479 | ||||||||||
| UPC/EAN: | 4024941114790 | ||||||||||
| Weight: | 3.185 kg | ||||||||||
| Type: | 11479 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 11479:
125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 70.0 mm² (possibly limited by the cable entry used)
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: 1xM40 top, 1xM50/M40 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing bottom part grey RAL 7035, housing top part grey RAL 7035
Device height: 512 mm, device width: 180 mm, device depth: 210 mm
Other technical features: The cable entry is open once at the top and twice at the bottom
| General | |
| IEC-amperage | 125 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP67 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Contact material | CuZn |
| Mounting method | Surface mounted (plaster) |
| Surface finish contacts | Nickel-plated |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
