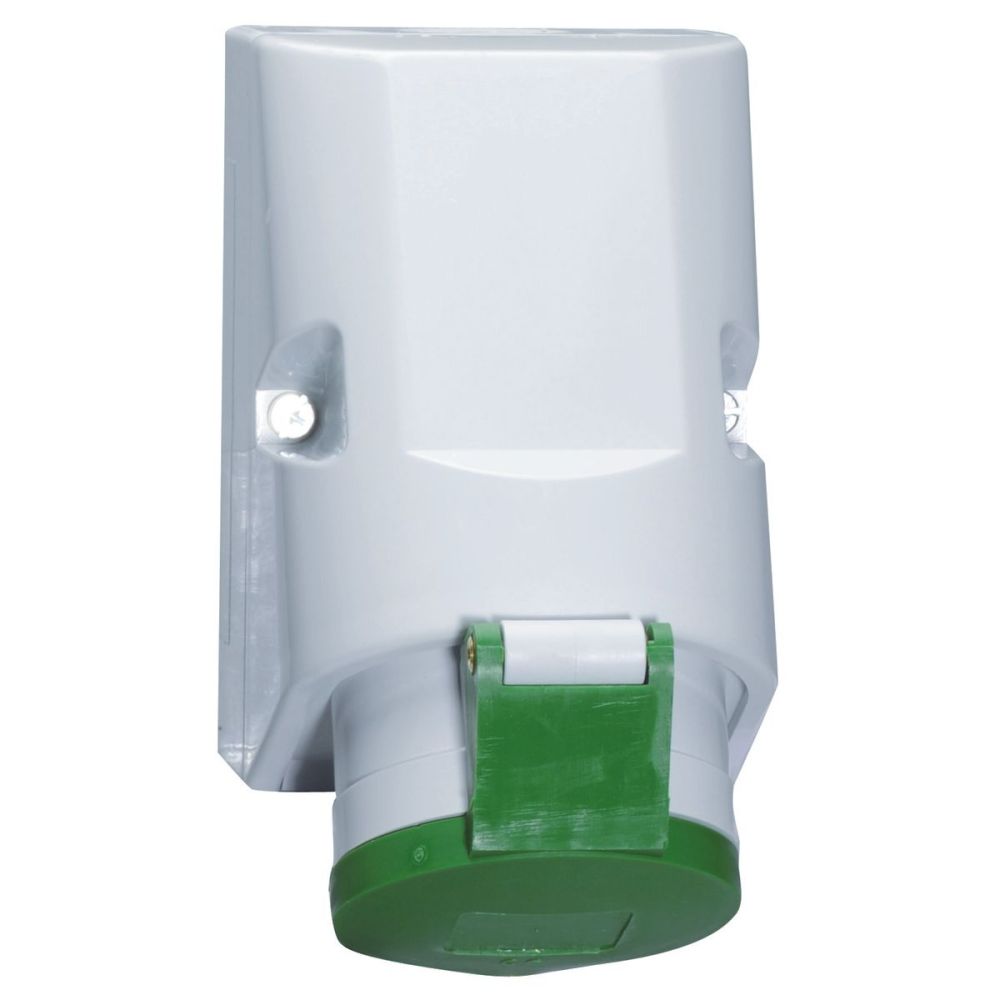

Bals 11426 wall socket GT 32 A 3-pole >50 V 10 h IP44 housing size:126x83
|
157,32 EUR |
|||||||||||
|
( 187,21 EUR incl. VAT ) ≈ £131.83 | ≈ $176.36 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 332252 | ||||||||||
| Mfg Part No: | 11426 | ||||||||||
| UPC/EAN: | 4024941114264 | ||||||||||
| Weight: | 0.37 kg | ||||||||||
| Type: | 11426 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 11426:
32A 3p (2P+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 up to and including 300Hz
Technical identification colour: green RAL 6002
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: hinged lid green RAL 6002, housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 156 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, the housing base is Rotatable by 180°, There are 4 mounting holes in the housing base for breaking out
| General | |
| IEC-amperage | 32 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 50-500 V (100-300 Hz) green |
| Clock hour position | 10 |
| Identification colour | Green |
| RAL-number | 6002 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Contact material | CuZn |
| Mounting method | Surface mounted (plaster) |
| Surface finish contacts | Untreated |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 11426 wall socket GT 32 A 3-pole >50 V 10 h IP44 housing size:126x83?
The article Bals 11426 wall socket GT 32 A 3-pole >50 V 10 h IP44 housing size:126x83 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 11426 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 11426 wall socket GT 32 A 3-pole >50 V 10 h IP44 housing size:126x83 always at the best possible price. We can give you a discount of 2% on Bals 11426 wall socket GT 32 A 3-pole >50 V 10 h IP44 housing size:126x83 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 11426 wall socket GT 32 A 3-pole >50 V 10 h IP44 housing size:126x83 we can offer you a price of 149,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
