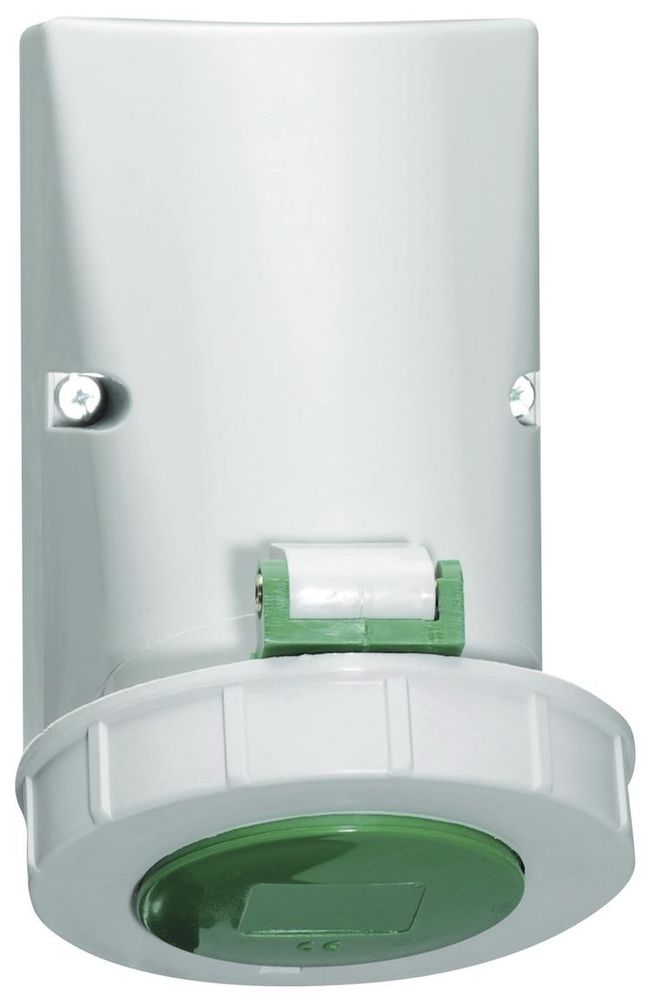

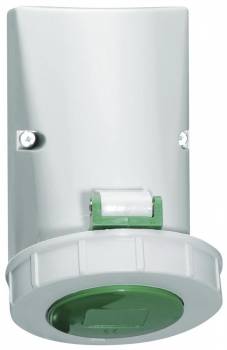

Bals 1139 wall socket 16A 4p >50V 10h IP67 housing size:100x75
|
198,89 EUR |
|
|
( 236,68 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 460915 |
|---|---|
| Mfg Part No: | 1139 |
| UPC/EAN: | 4024941011396 |
| Weight: | 0.12 kg |
Product information for BALS 1139:
16A 4p (3P+PE) >50V green 100-300Hz (> 50V~) 10h IP67
Frequency: 100 up to and including 300Hz
Technical identification colour: green RAL 6002
Housing size: 100x75 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM20 at the top
Device colour: hinged lid green RAL 6002, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 131 mm, device width: 79 mm, device depth: 115 mm
Other technical properties: The cable entry is open at the top, closed at the bottom and at the back. The housing base is Rotatable 180°
Type: 1139
