Bals 11264 32 5 >50 1H W-DO IP67 NI 126x83

Your rating:
Average rating
Rating for Bals 11264 32 5 >50 1H W-DO IP67 NI 126x83
( 0 / 5 ) 0 ratings
BALS 11264

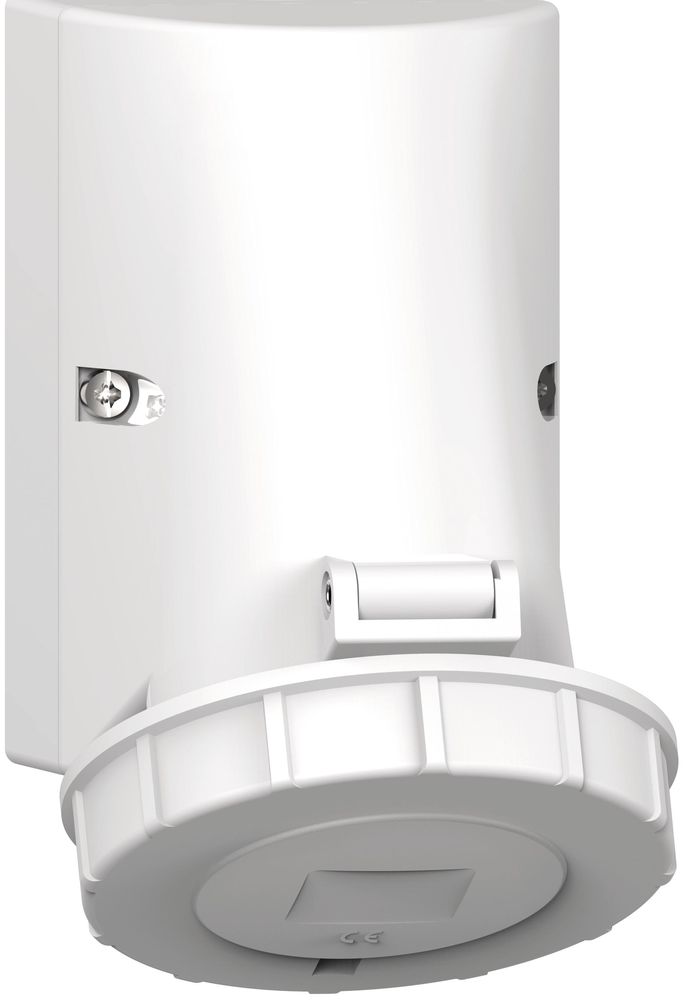

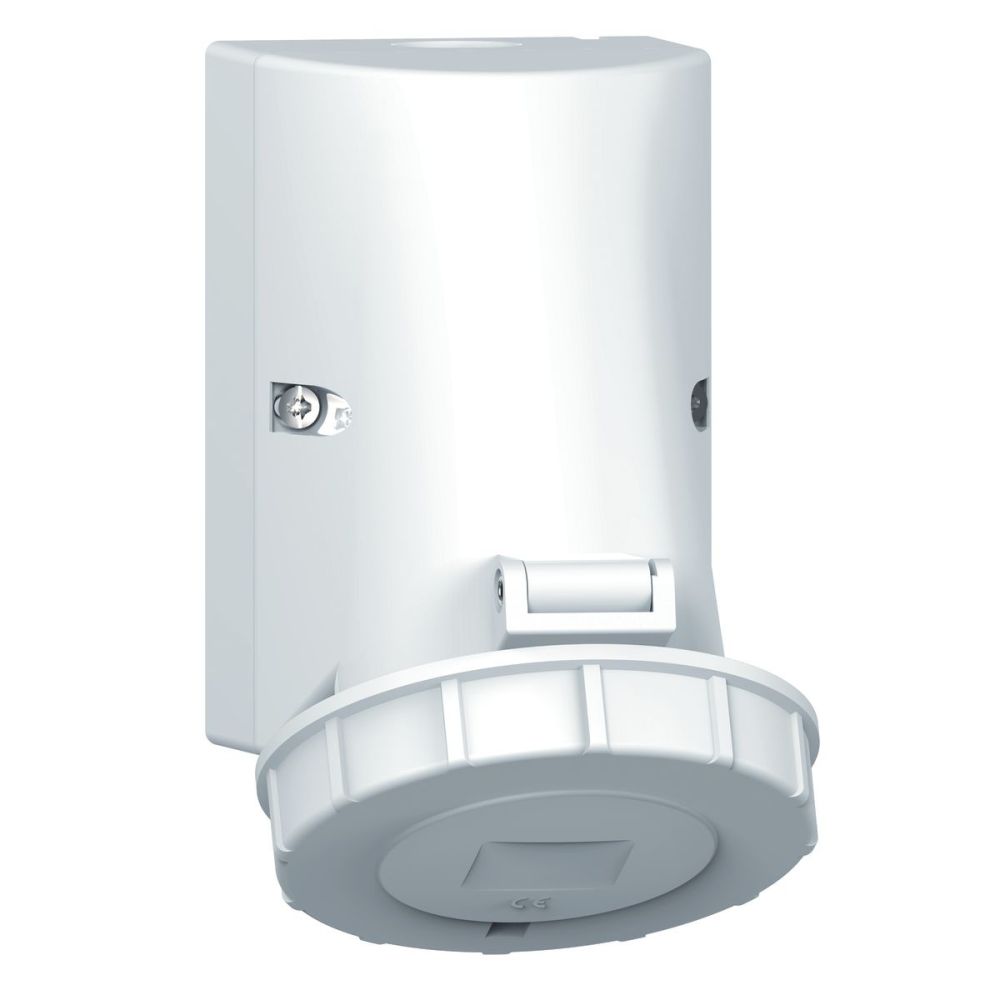

This image may differ from the desired article.
308,78 EUR
( 367,45 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 11264 32 5 >50 1H W-DO IP67 NI 126x83
Lieske Part No.:466833
Mfg Part No: 11264
UPC/EAN: 4024941112642
Weight:0.12 kg

Product information for BALS 11264:

Wall socket
32A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP67
Technical identification color: grey RAL 7035
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device color: hinged lid grey RAL 7035, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 161 mm, device width: 101 mm, device depth: 141 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
Type: 11264
