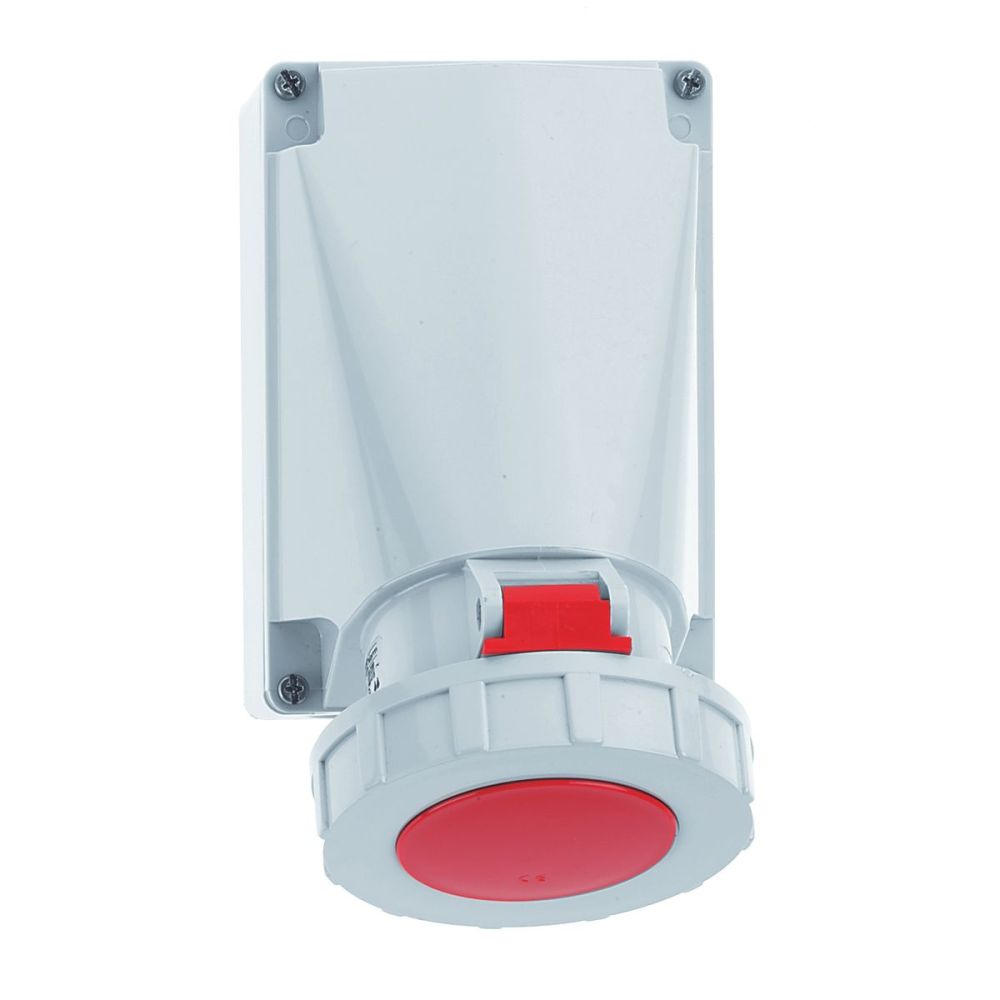

Bals 110413 wall socket QUICK-CONNECT TE 63A 5p 400V 6h IP67 enclosure size:170x118
|
427,50 EUR |
|||||||||||
|
( 508,72 EUR incl. VAT ) ≈ £357.82 | ≈ $478.37 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 828428 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 110413 | ||||||||||
| UPC/EAN: | 4024941146395 | ||||||||||
| Weight: | 1.005 kg | ||||||||||
| Type: | 110413 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 110413:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 170x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology with box terminals and Kontex contact
Cable entry: 1xM40 top, 2xM32 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, the housing base can be rotated by 180°
| General | |
| IEC-amperage | 63 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP67 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Contact material | CuZn |
| Mounting method | Surface mounted (plaster) |
| Surface finish contacts | Nickel-plated |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
