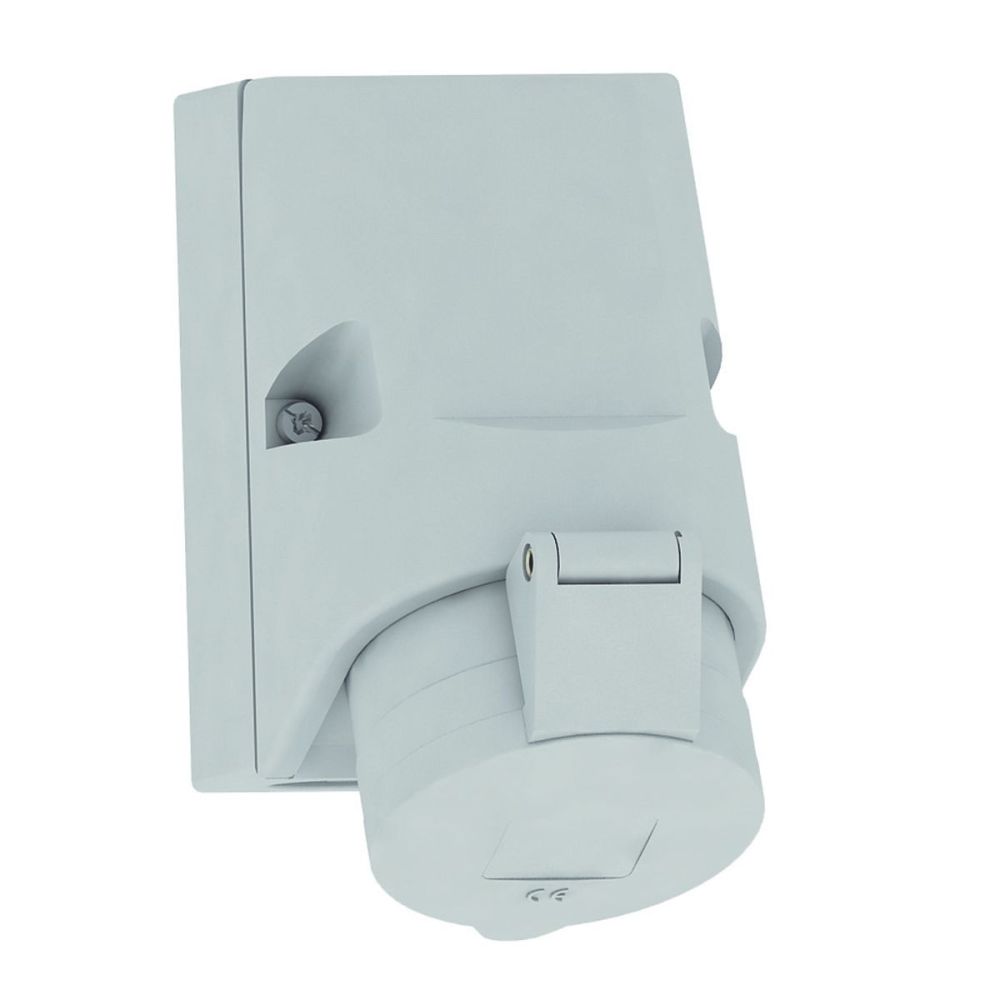

Bals 110394 11039代 wall socket 16 A 5p >50 V 1 h IP44
|
207,00 EUR |
|||||||||||
|
( 246,33 EUR incl. VAT ) ≈ £173.26 | ≈ $231.63 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 809288 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 110394 | ||||||||||
| UPC/EAN: | 4024941144827 | ||||||||||
| Weight: | 0.327 kg | ||||||||||
| Type: | 110394 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 110394:
16A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as a cage clamp with Kontex contact
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: hinged lid grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
| General | |
| IEC-amperage | 16 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | >50 V grey |
| Clock hour position | 1 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | Inner lying mounting |
| Contact material | CuZn |
| Mounting method | Surface mounted (plaster) |
| Surface finish contacts | Nickel-plated |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
