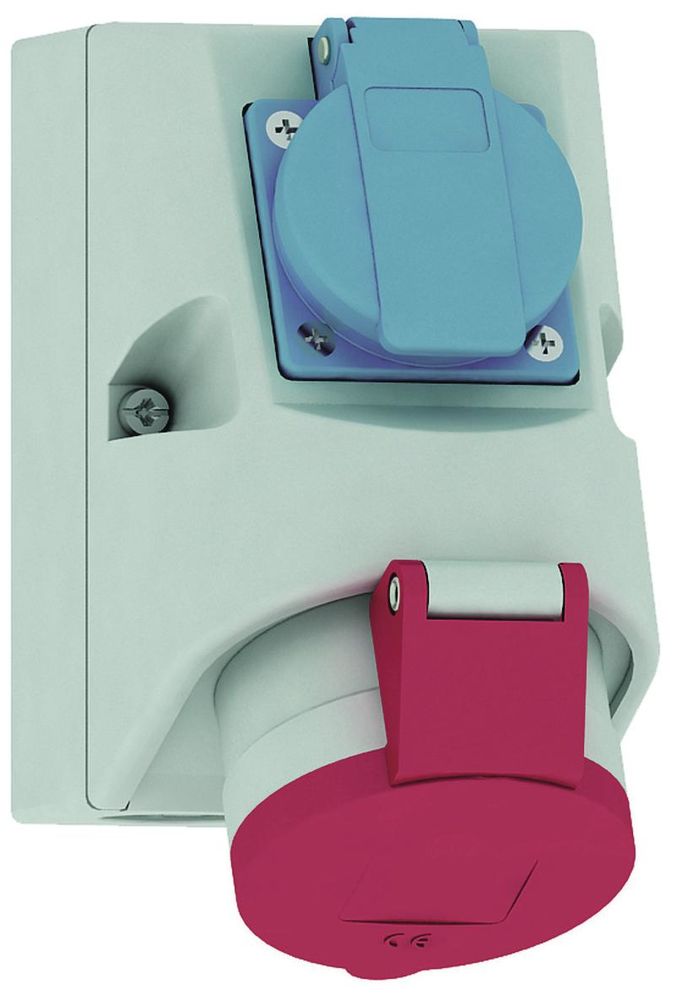

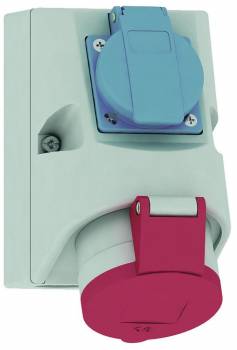

Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44

Your rating:
Average rating
Rating for Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44
( 0 / 5 ) 0 ratings
BALS 109-QC
This image may differ from the desired article.
155,73 EUR
( 185,32 EUR incl. VAT )
2025-10-09Delivery time on requestinfo_outline
1x Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44
Lieske Part No.:468583
Mfg Part No: 109-QC
UPC/EAN: 4024941948845
Weight:0.12 kg

Product information for BALS 109-QC:

Combination wall socket QUICK-CONNECT
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, With integrated protective contact socket 16A 250V AC German system, There are 4 mounting holes in the housing base for breaking out, With fuse insert 6.3 A, With fuse base 5x20 mm DIN 41671, type 1862, With terminals 3x6 mm² and wired ready for connection
Type: 109-QC


Questions & answers

What is the delivery time of Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44?

The article Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 109-QC to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44 always at the best possible price. We can give you a discount of 2% on Bals 109-QC Combined wall socket Quick-Connect 16A 5p 400V 6h IP44 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
