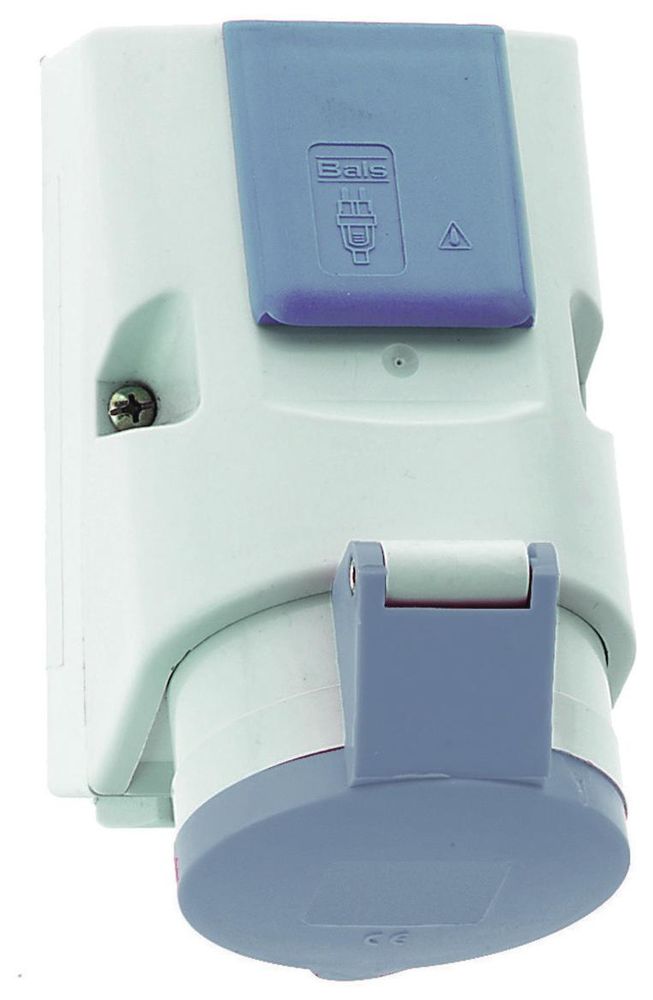

BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83

Your rating:
Average rating
Rating for BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83
( 4.6 / 5 ) 32 ratings
BALS 1012
This image may differ from the desired article.
95,54 EUR
( 113,69 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83
Lieske Part No.:903196
Mfg Part No: 1012
UPC/EAN: 4024941010122
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
688,37 EUR
1281,21 EUR
2474,04 EUR
3666,88 EUR

Product information for BALS 1012:

Combined wall socket
16A 4p (3P+PE) 230V (200 - 250V~) 9h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: with screw terminal
Cable entry: 1xM25 at the top, 2xM25 at the bottom
Device colour: hinged cover of the safety socket blue RAL 5015, hinged cover blue RAL 5015, housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 157 mm, device width: 83 mm, device depth: 128 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom closed, with integrated protective contact socket 16A 250V AC German system, in the housing base there are 4 mounting holes for breaking out, with terminals 3x6 mm² but without wiring


Questions & answers

What is the delivery time of BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83?

The article BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 1012 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83 always at the best possible price. We can give you a discount of 2% on BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83 we can offer you a price of 88,37 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of BALS 1012 Combined wall socket 16A, IP44 housing 1012 size 126x83 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
