BALL Balluff BTL7-V50T-M0800-P-SA447-C00 Magnetostrictive sensors, BTL32E5

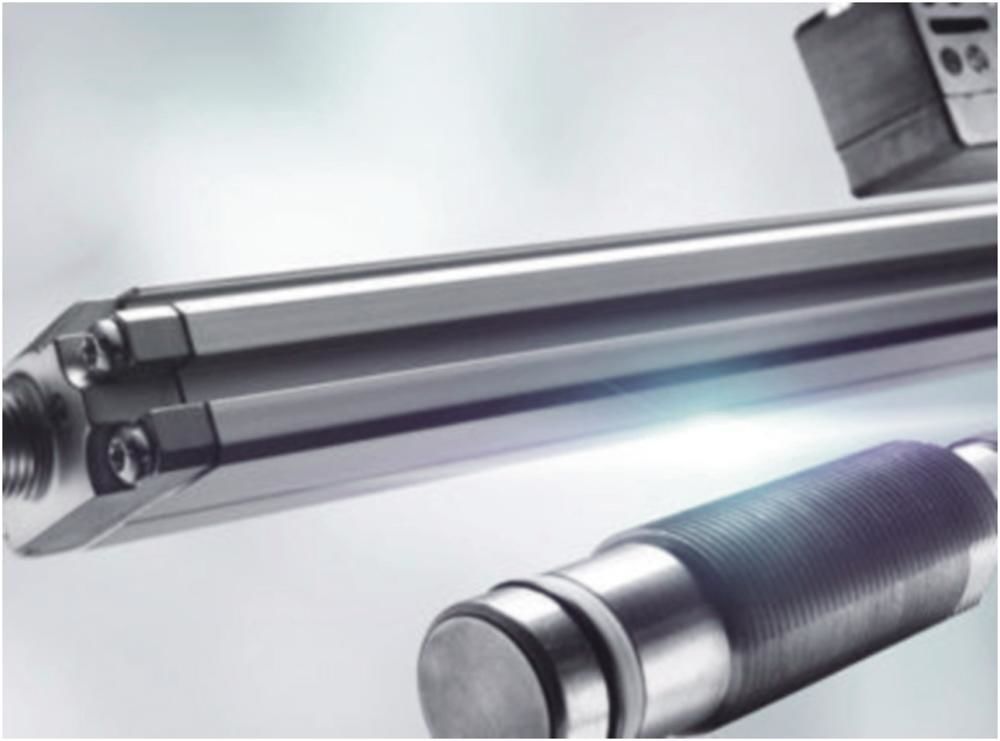

This image may differ from the desired article.

5.058,00 EUR

( 6.019,02 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry

Lieske Part No.:

1919536

Mfg Part No:

BTL32E5

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
2	4.982,13 EUR
4	4.906,26 EUR
6	4.830,39 EUR
8	4.754,52 EUR

All products of Balluff

Product information for Balluff BTL32E5:

Position measuring systems in profile design are non-contact and absolute measuring systems for the precise detection of one or more positions. They are ideal for use in harsh environments, such as presses, injection molding machines or gantry robots, as they consist of a hermetically sealed IP67 aluminum housing. The magnets of the position sensor act on the measuring element through the wall of the profile. Form = Profile series, fastening = fastening clips, housing material = aluminum, anodized, position encoder, max. number = 12, connection = plug connector, M8x1, 4-pin, connection 1 = M8x1, 4-pin, connection 2 = M12x1, 4-pin, D-coded, connection 3 = M12x1, 4-pin, D-coded, interface = Profinet encoder profile V4.1, measuring range = 800 mm, measuring frequency max. = 600 Hz, linearity deviation max. = ±30 µm, repeatability = = ± 5 µm (typically ± 2.5 µm), operating voltage Ub = 10...30 VDC, ambient temperature = -40...85 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
Type: BTL7-V50T-M0800-P-SA447-C003

Questions & answers

What is the delivery time of BALL Balluff BTL7-V50T-M0800-P-SA447-C00 Magnetostrictive sensors, BTL32E5?

The article BALL Balluff BTL7-V50T-M0800-P-SA447-C00 Magnetostrictive sensors, BTL32E5 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Balluff BTL32E5 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALL Balluff BTL7-V50T-M0800-P-SA447-C00 Magnetostrictive sensors, BTL32E5 always at the best possible price. We can give you a discount of 2% on BALL Balluff BTL7-V50T-M0800-P-SA447-C00 Magnetostrictive sensors, BTL32E5 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of BALL Balluff BTL7-V50T-M0800-P-SA447-C00 Magnetostrictive sensors, BTL32E5 we can offer you a price of 4.982,13 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
