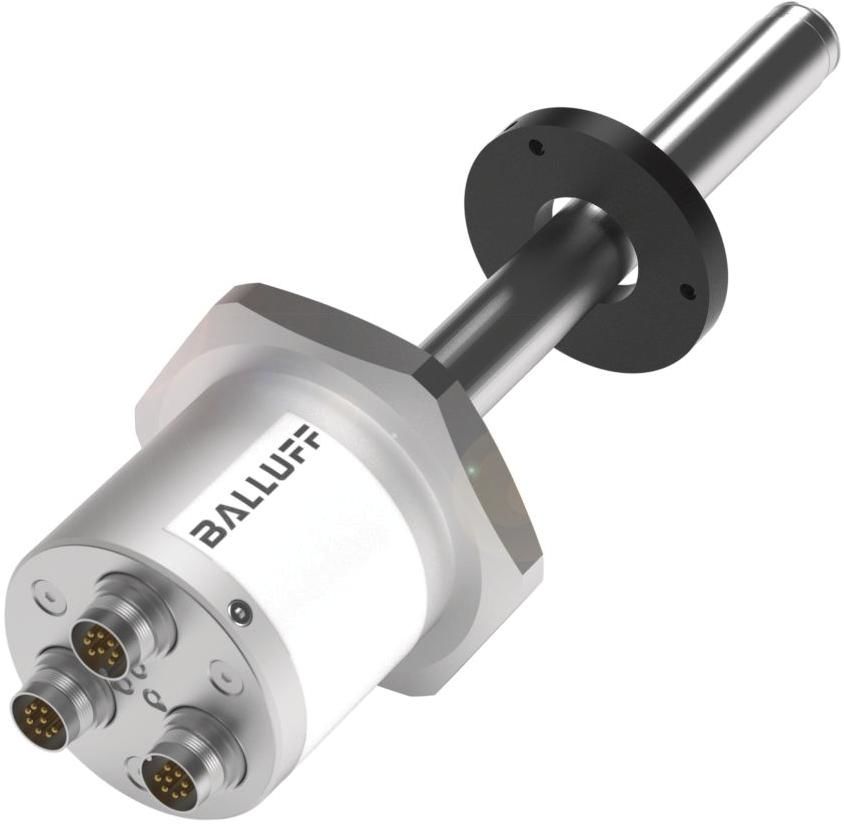

Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF

Your rating:
Average rating
product review for Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF
( 0 / 5 ) 0 ratings
Balluff BTL14CF
This image may differ from the desired article.
4.014,53 EUR
( 4.777,29 EUR incl. VAT )
≈ £3,448.48  |  ≈ $4,664.88
plus delivery charges: 53,00 €
Delivery time on requestinfo_outline
1x Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1876399
Mfg Part No: BTL14CF
Weight:0.12 kg
All products of Balluff

Product information for Balluff BTL14CF:

Our multiple redundant position measuring systems meet the highest requirements for safety and availability, even in difficult environments. For example, when used in safety-relevant valves and hydraulic cylinders. They offer up to three independent measuring systems in the same housing, thus ensuring increased safety during operation. Form = rod series, fastening = threaded flange M30x1.5, housing material = aluminum, anodized, position sensor, max. number = 1, connection = plug connector, M16x0.75, 8-pin, connection 1 = M16x0.75, 8-pin, connection 2 = M16x0.75, 8-pin, connection 3 = M16x0.75, 8-pin, analog output = 3x analog, current 20.4 mA, measuring range = 100 mm, measuring frequency max. = 500 Hz, linearity deviation max. = ±200 µm, repeatability = ± 5 µm, operating voltage Ub = 10...30 VDC, ambient temperature = -40...85 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
Type: BTL7-E505-M0100-TT3-SA348-S32


Questions & answers

What is the delivery time of Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF?

The article Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Balluff BTL14CF to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF always at the best possible price. We can give you a discount of 2% on Balluff BTL7-E505-M0100-TT3-SA348-S32 Magnetostrictive sensors BTL14CF if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
