Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448

Your rating:
Average rating
Rating for Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448
( 0 / 5 ) 0 ratings

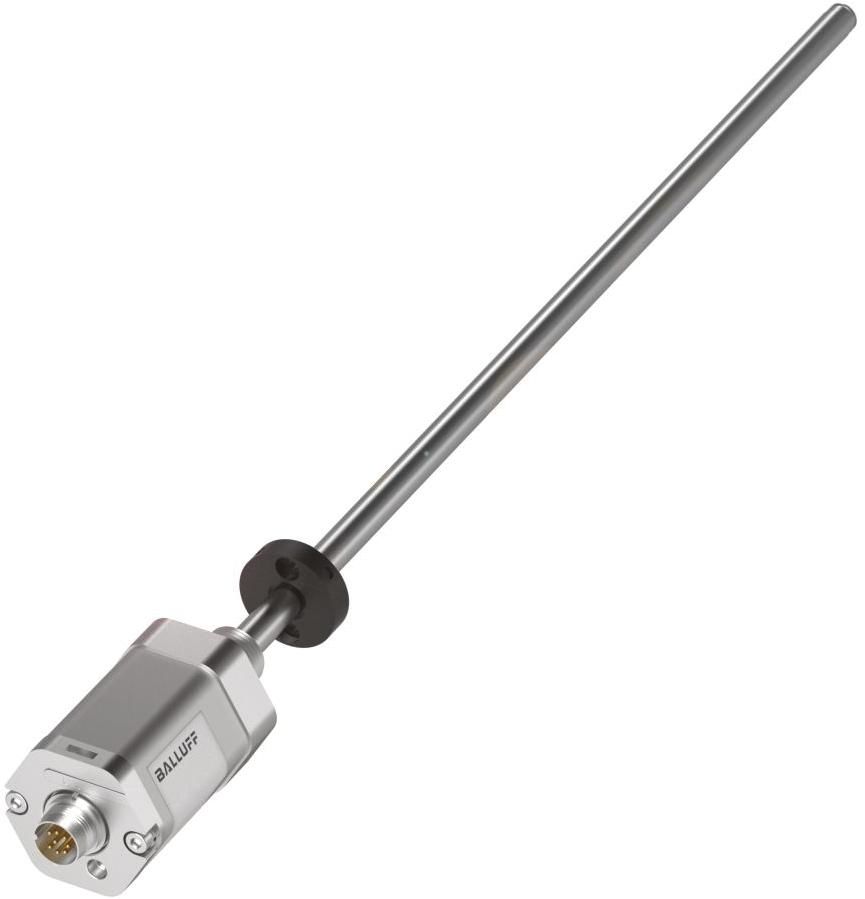

Balluff BTL1448
This image may differ from the desired article.
1.964,50 EUR
( 2.337,76 EUR incl. VAT )
plus delivery charges
2025-09-13Delivery time on requestinfo_outline
1x Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1908092
Mfg Part No: BTL1448
Weight:0 kg
All products of Balluff

Product information for Balluff BTL1448:

Position measuring systems in rod design are most commonly used in hydraulic drives. They are ideal for use in hydraulic cylinders for position feedback, for forming and rolling systems or for lift and hoisting technology. The sensors are installed in the pressure area of the hydraulic cylinder and have the same pressure resistance as the cylinder itself. Form=rod series, fastening=threaded flange 3/4'-16UNF, housing material=aluminum, position sensor, max. number=1, connection=plug connector, M16x0.75, 8-pin, analog output=analog, voltage 0.10 V Analog, voltage 10.0 V, measuring range=2761 mm, measuring frequency max.=250 Hz, linearity deviation max.=±0.01 %FS, repeat accuracy=± 10 µm, operating voltage Ub=10...30 VDC, ambient temperature=-40...85 °C, protection class=IP67, approval/conformity=CEcULusEACWEEE
Type: BTL7-A510-M2761-Z-MA341-S32


Questions & answers

What is the delivery time of Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448?

The article Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Balluff BTL1448 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448 always at the best possible price. We can give you a discount of 2% on Balluff BTL7-A510-M2761-Z-MA341-S32 Magnetostrictive system BTL1448 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
