Our light sensors with background suppression detect objects within a set switching distance without being affected by the reflective background. And this is almost independent of the color and surface of the object. Object and background can be reliably distinguished, especially since these light sensors are characterized by their low gray value shift and hysteresis. Since the transmitter and receiver are housed in a space-saving housing, our light sensors are easy to install and quickly align. The clearly visible light beam of the red light and laser versions also supports you. With teach-in or via potentiometer, you can easily adjust many sensor versions. Versions with a fixed switching distance are also available. Series = 21M, Dimensions = 15 x 51 x 42.5 mm, Interface = PNP normally open (NO) PNP normally closed (NC), Functional principle = Optoelectronic sensor, Optical functional principle = Light sensor, triangulation, Optical feature = Background suppression, Beam characteristics = Focus typically at 200 mm, Light type = LED red light, Light spot size = 6 x 6 mm at 200 mm, Range = 1...400 mm, Connection = Plug connector, M12x1 plug, 4-pin, Housing material = Zinc, die-cast, powder-coated aluminum, Active surface, Material = Glass, Operating voltage Ub = 10...30 VDC, Approval/Conformity = CE, UKCA, cULus, WEEE

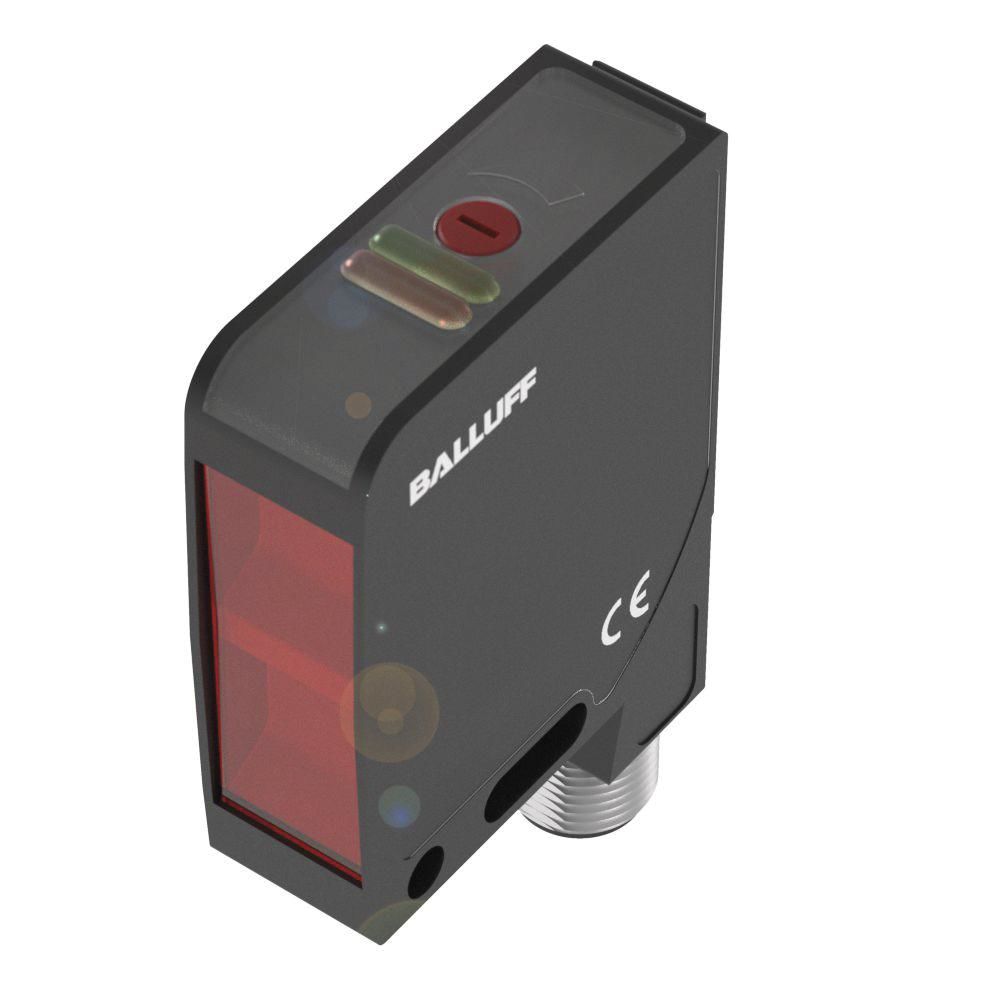

Type: BOS 21M-PA-RH22-S4
Questions & answers
What is the delivery time of Balluff BOS 21M-PA-RH22-S4 Photoelectronic sensors BOS01Z8?
The article Balluff BOS 21M-PA-RH22-S4 Photoelectronic sensors BOS01Z8 is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 11 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Balluff BOS01Z8 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Balluff BOS 21M-PA-RH22-S4 Photoelectronic sensors BOS01Z8 always at the best possible price. We can give you a discount of 2% on
Balluff BOS 21M-PA-RH22-S4 Photoelectronic sensors BOS01Z8 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
