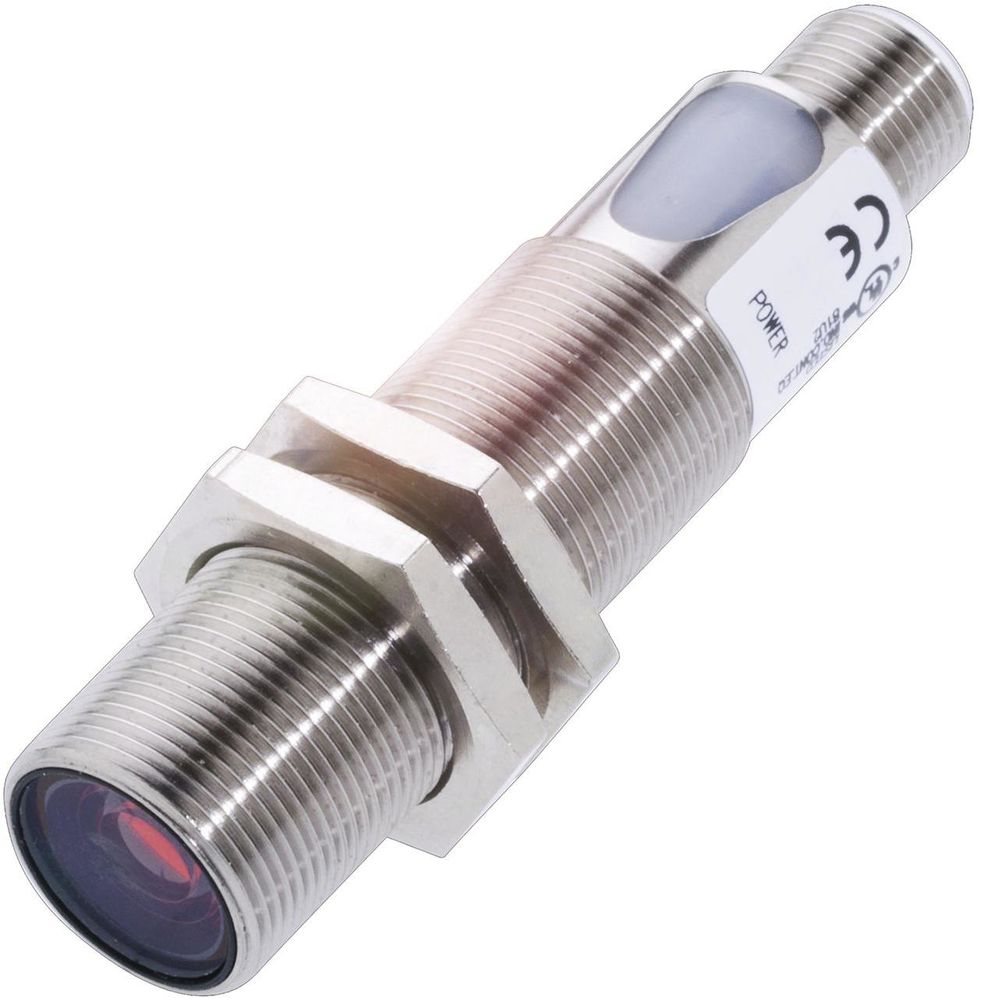

Balluff BOS 18M-PS-IR23-S4 reflection light barrier BOS01HK

Whatever application you want to implement, Balluff offers you a wide range of reflective sensors. These enable you to reliably detect objects regardless of their surface, color and material. If you use a polarizing filter, our reflective sensors even enable you to detect shiny objects. The transmitter and receiver are housed in one housing, so that you can easily mount this light barrier and align it easily thanks to generous mounting tolerances. You can choose the right type of light depending on your requirements. Depending on the type, our reflective sensors work with clearly visible red light, invisible infrared light or very precise laser light that is ideal for detecting small parts. Series = 18M, Dimensions = Ø 18 x 75 mm, Interface = PNP normally open (NO), Functional principle = Optoelectronic sensor, Optical functional principle = Reflection light barrier, Beam characteristics = divergent, Light type = LED infrared, Light spot size = Ø 300 mm at 7 m, Range = 0...6 m, Connection = Plug connector, M12x1 plug, 4-pin, Housing material = Brass, nickel-plated, Active surface, Material = Glass, anti-reflective, Operating voltage Ub = 10...30 VDC, Approval/Conformity = cULus, CE, UKCA, WEEE, Scope of delivery = Nut M18x1 (2x), Operating instructions
Type: BOS 18M-PS-IR23-S4
