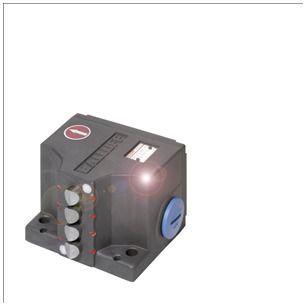

Balluff BNS 813-B03-L12-61-A-55-1020 position switch BNS02JT content_copy

For safety functions such as emergency stop or end position limitation with safety switches according to DIN EN 60204-1/VDE 0113. The switching process is triggered by a rigid plunger that actuates a mechanical switching element with positive opening. Switching is ensured even with welded contacts. The number of safety switching points is arbitrary and can be combined with standard switching elements. Dimensions = 79 x 48 x 63 mm, housing material = aluminum, number of switching points = 3x roller bearings, design = safety DIN EN 60204-1, operating principle = 1-3. Switching point: mechanical, continuous current = 1-3. Switching point: 6 A, rated operating voltage Ue = 1-3. Switching point: 250 V AC, installation = vertical, approach direction = lengthwise, parallel to the screwing surface, approach speed = 1-3. Switching point: 120 m/min, Switching point distance=12 mm, Connection type=1-3. Switching point: screw connection, Ambient temperature=-5...85 °C, Protection class=IP67, Approval/Conformity=CECSAWEEE
Type: BNS 813-B03-L12-61-A-55-1020
