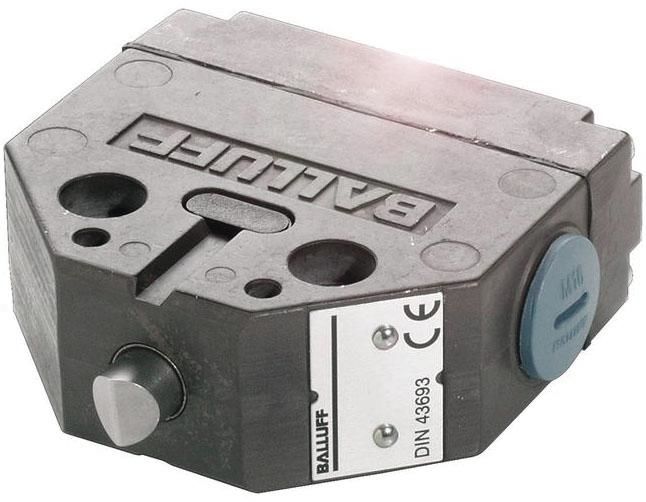

Balluff BNS0003 Balluf f BNS 819-FD-60-101, initiator _alt content_copy

In mechanical single-position switches without forced separation, a telescopic plunger carries out the switching process. With its help, a mechanical switching element is switched in a separate, sealed chamber. The decisive factor in each individual case is the optimal choice of plunger shape in combination with our cams. This guarantees a long service life for your application. Dimensions = 74 x 28 x 61 mm, housing material = aluminum, anodized, number of switching points = 1x roof, design = snap contact, operating principle = 1st switching point: mechanical, continuous current = 1st switching point: 6 A, rated operating voltage Ue = 1st switching point: 250 V AC, installation = any, approach direction = lengthways or across the screwing surface, approach speed = 1st switching point: 40 m/min, connection type = 1st switching point: screw connection, ambient temperature = -5...85 °C, protection class = IP67, approval/conformity = CE, UKCA, CCC, WEEE
