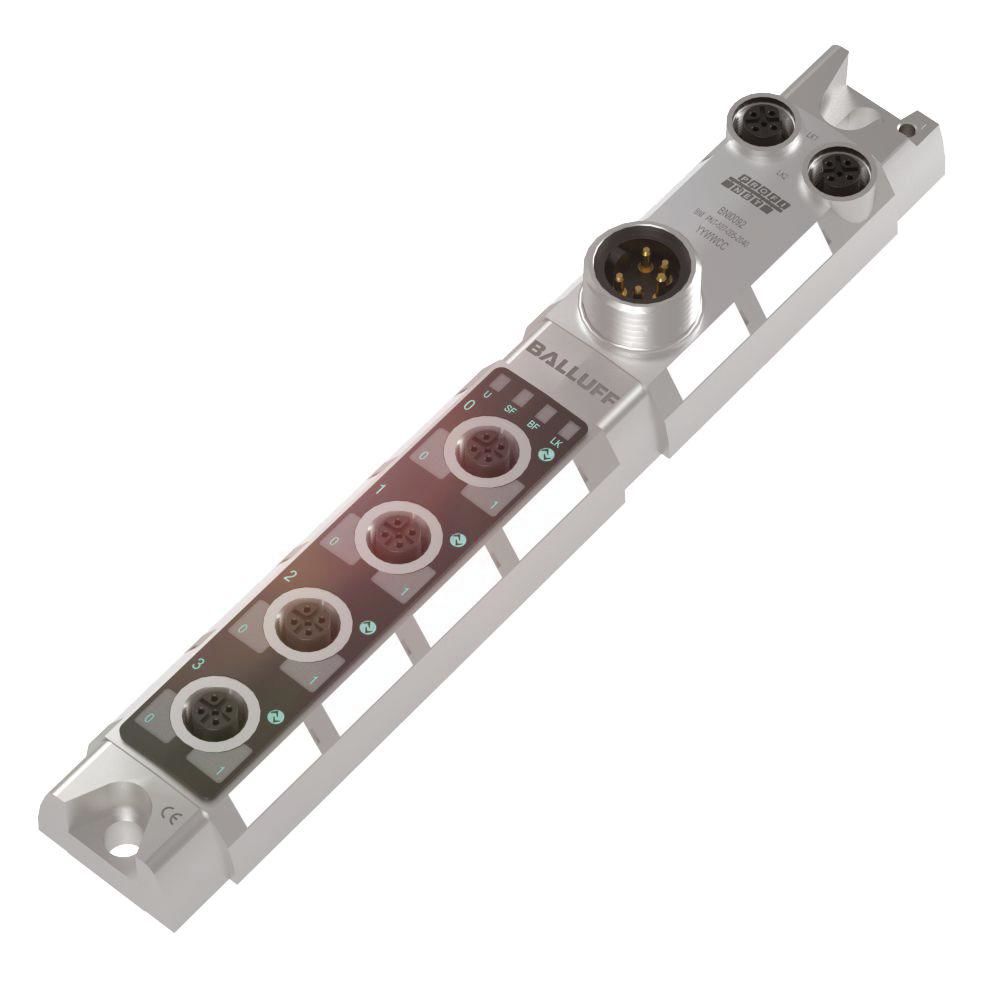

Balluff BNI0092 BNI PNT-507-005-Z040 active distributor content_copy

It is understandable that industrial automation has developed significantly thanks to Profinet. With Profinet, you can integrate drives and safety technology directly into the network world. The Ethernet-based system is significantly faster than Profibus, but can be easily combined with it. Functional principle=Active distributor, Interface=Profinet I/O, Fast Start-Up (FSU)=yes, Operating voltage Ub=18...30.2 VDC, Connection (COM 1)=M12x1 socket, 4-pin, D-coded, Connection (COM 2)=M12x1 socket, 4-pin, D-coded, Connection (power supply IN)=7/8' plug, 5-pin, Connection slots=4x M12x1 socket, 5-pin, A-coded, Digital inputs=8x PNP, Type 3, Digital outputs=8x PNP, Inputs/outputs configurable=yes, Output current max.=2 A, Total current US, sensor=9.0 A, Total current UA, actuator=9.0 A, Housing material=Zinc, die-cast, Dimensions=37 x 32.6 x 224 mm, Ambient temperature=-40...70 °C, protection class=IP67, additional interfaces=4x IO-Link, IO-Link version=1.1, port class=Type A
