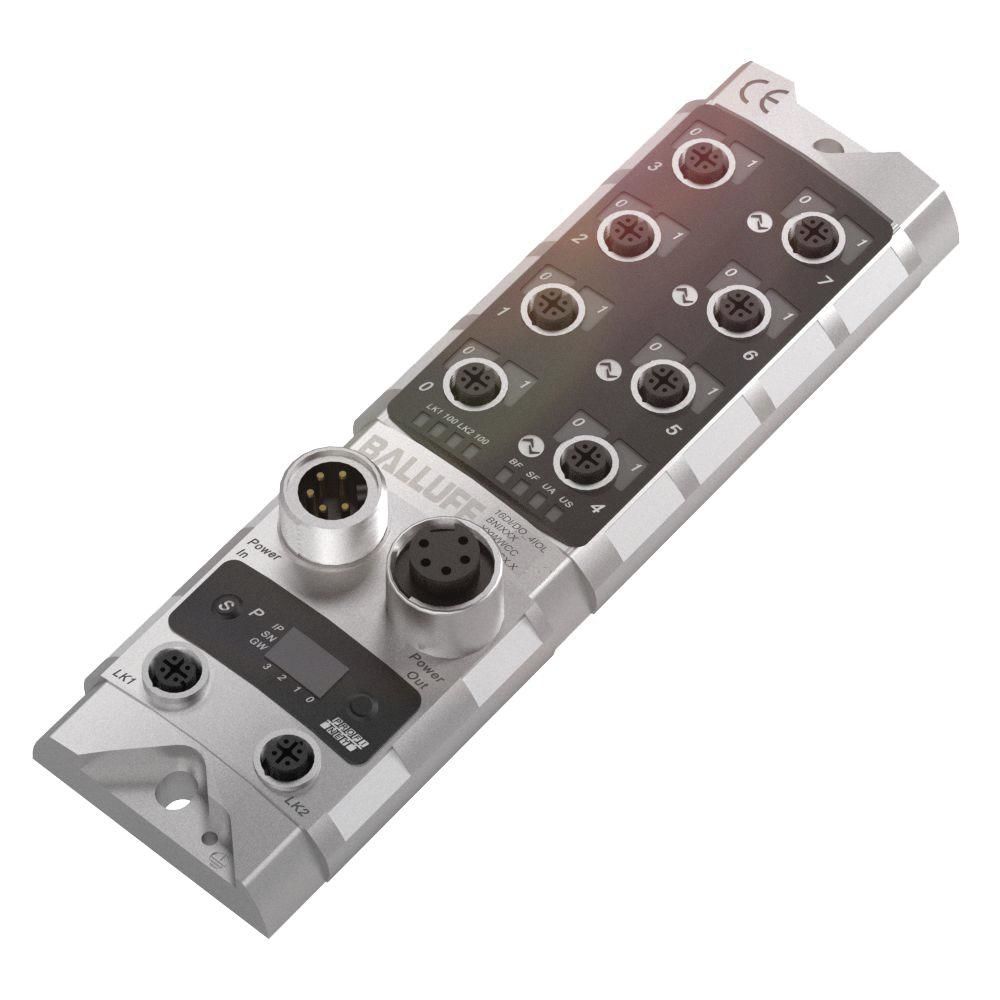

Balluff BNI PNT-502-102-Z015 Active distributor BNI006C

It is understandable that industrial automation has developed significantly thanks to Profinet. With Profinet, you can integrate drives and safety technology directly into the network world. The Ethernet-based system is significantly faster than Profibus, but can be easily combined with it. Functional principle, =, Active, distributor, |, Interface, =, Profinet, I/O, |, Fast, Start-Up, (FSU), =, yes, |, Operating voltage, Ub, =, 18...30.2, VDC, |, Connection, (COM, 1), =, M12x1 socket,, 4-pin,, D-coded, |, Connection, (COM, 2), =, M12x1 socket,, 4-pin,, D-coded, |, Connection, (power supply, IN), =, 7/8' plug,, 5-pin, |, Connection, (power supply, OUT), =, 7/8' socket,, 5-pin, |, Connection, slots, =, 8x, M12x1 socket,, 5-pin,, A-coded, |, Digital, inputs, =, 16x, PNP,, Type3, |, Digital, outputs, =, 16x, PNP, |, Inputs/outputs, configurable, =, yes, |, Output current, max., =, 2, A, |, Total current, US,, sensor, =, 9.0, A, |, Total current, UA,, actuator, =, 9.0, A, |, Housing material, =, zinc,, die-cast, |, Dimensions, =, 68, x, 37.9, x, 224, mm, |, Ambient temperature, =, -5...70, °C, |, Protection class, =, IP67, |, Additional interfaces, =, 4x, IO-Link, |, IO-Link, version, =, 1.1, |, Port class, =, Type, A
Type: BNI PNT-502-102-Z015
