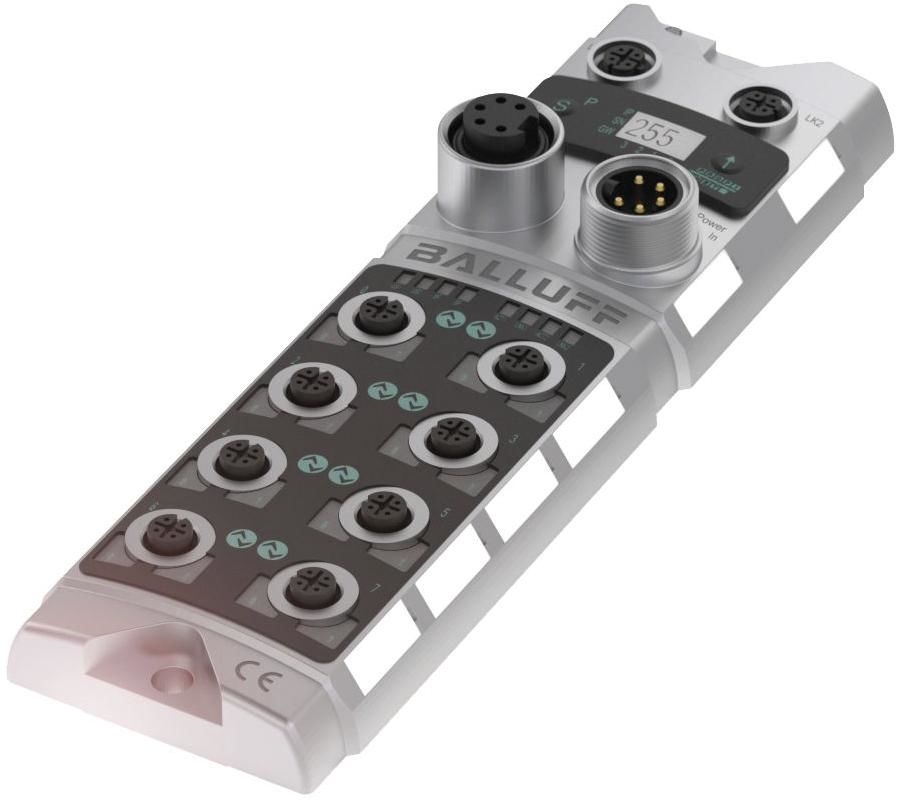

Balluff BNI PNT 508-105-Z015 ProfiNet, distributor M12 - IO-Link BNI005H

It is easy to understand that industrial automation has developed significantly thanks to Profinet. With Profinet, you can integrate drives and safety technology directly into the network world. The Ethernet-based system is significantly faster than Profibus, but can be easily combined with it. The same applies to the connection with IO-Link. You save time and money and ensure an improvement in process quality through connectivity. With our network modules, Profinet can be integrated consistently - from the control level to the drive. Even in harsh environments. Interface = Profinet I/O, Fast Start-Up (FSU) = yes, Display = yes, Operating voltage Ub = 18...30.2 VDC, Connection (COM 1) = M12x1 socket, 4-pin, D-coded, Connection (COM 2) = M12x1 socket, 4-pin, D-coded, Connection (power supply IN) = 7/8' plug, 5-pin, Connection (power supply OUT) = 7/8' socket, 5-pin, Connection slots = 8x M12x1 socket, 5-pin, A-coded, Digital inputs = 16x PNP, Type3, Digital outputs = 16x PNP, Inputs/outputs configurable = yes, Output current max. = 2 A short-circuit and overload proof, Total current US, Sensor = 9.0 A, Total current UA, Actuator = 9.0 A, Housing material = Zinc, die-cast, Dimensions = 68 x 37.9 x 224 mm, Ambient temperature = -5...70 °C, Protection class = IP67, Additional interfaces = 8x IO-Link, IO-Link version = 1.1, Port class = Type A, Safety Hub Support = yes
Type: BNI PNT-508-105-Z015
