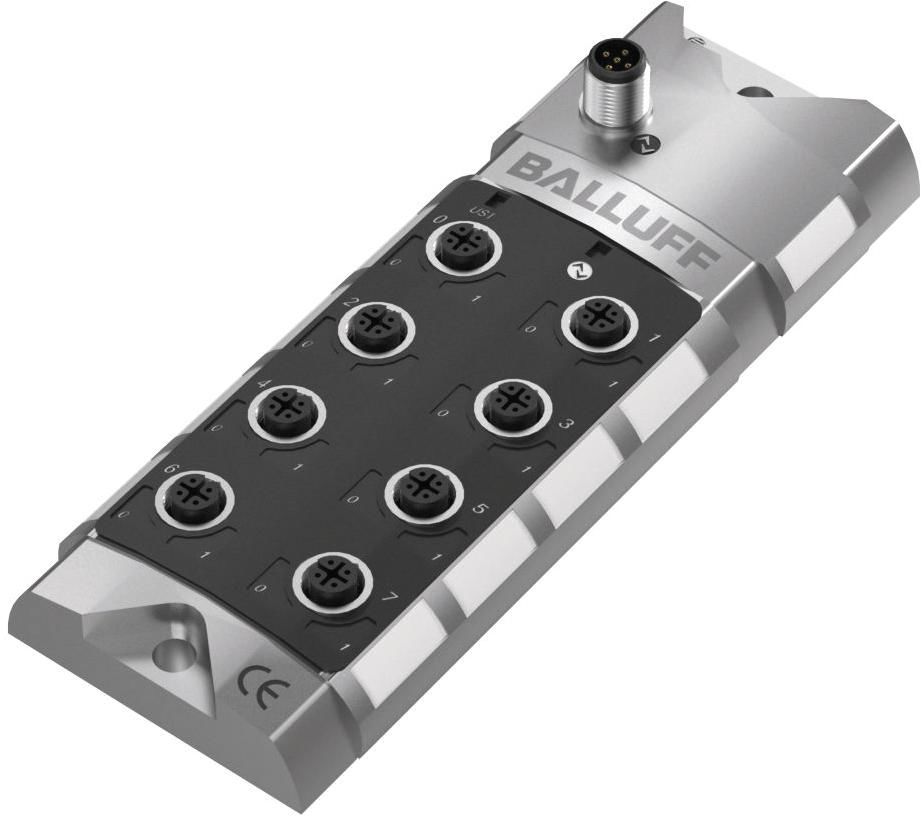

Balluff BNI IOL-104-S01-Z012-C01 Network Interface BNI003T

Our IO-Link sensor/actuator hubs BNI, with their robust housing, are ideal for use in harsh industrial environments. The I/O modules are based on M12 or M8 connectors and are easy and cost-effective to install and maintain. The port-specific single-channel monitoring detects short circuits and overloads as well as cable breaks at the port. This level of selective diagnostics is unique among I/O modules. Our various variants of sensor/actuator hubs BNI offer the highest functionality with the best flexibility. These product families offer variants for digital inputs/outputs and for analog input signals. Choose the right device according to your needs and requirements. Depending on the application, you can manage up to 16 digital inputs and outputs (with or without a separate power supply for high loads) or up to 8 analog signals. Depending on the area of application, we offer different housing designs, including plastic and metal. As well as different IP protection classes. Interface = IO-Link 1.0, operating voltage Ub = 18...30.2 VDC, connection (COM 1) = M12x1 plug, 4-pin, A-coded, connection slots = 8x M12x1 socket, 5-pin, A-coded, digital inputs = 16x PNP, type 2, inputs/outputs configurable = no, individual channel monitoring = yes, additional function = identification 2 bytes, total current US, sensor = 4 A, housing material = zinc, die-cast, dimensions = 68 x 31.8 x 181.5 mm, ambient temperature = -5...70 °C, protection class = IP67, screwed state, transmission rate = COM2 (38.4 kBaud), process data cycle min. = 18 ms, process data IN = 6 bytes
Type: BNI IOL-104-S01-Z012-C01
