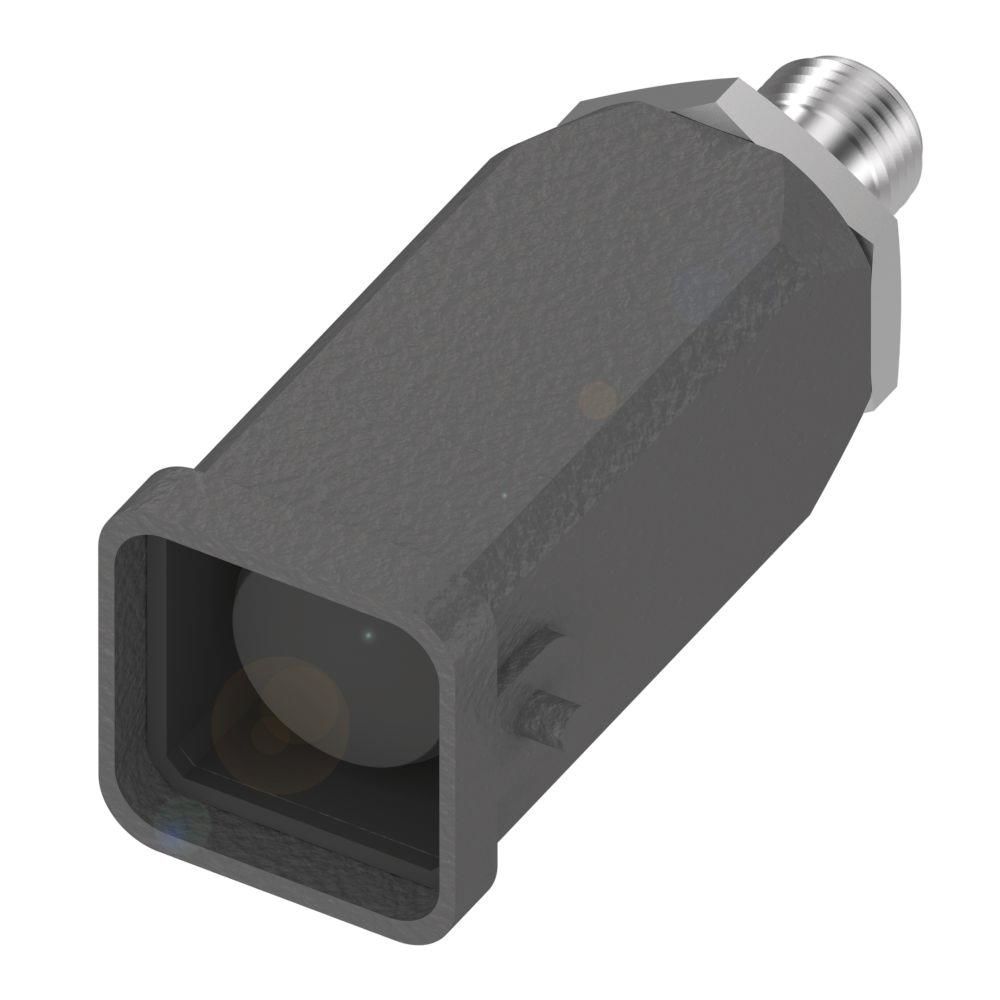

Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz)

Your rating:
Average rating
product review for Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz)
( 0 / 5 ) 0 ratings
Balluff BIS018E
This image may differ from the desired article.
592,39 EUR 618,14 EUR
( 704,94 EUR incl. VAT )
≈ £495.83  |  ≈ $662.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz)
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:1907814
Mfg Part No: BIS018E
Weight:0.123 kg
Type:BIS M-404-045-401-07-S4-SA1
All products of Balluff

Product information for Balluff BIS018E:

HF read/write heads with integrated evaluation unit are the intermediaries between the data carrier and the PC or the control system. Your advantage: Since the antenna, electronics and interface are in one housing, an additional evaluation unit is not required. In addition, the simple integration saves a lot of installation work. Versions with separate electronics are also suitable for tight installation conditions and create flexibility during installation. Product group = HF (13.56 MHz), Dimensions = 28 x 60 x 33.4 mm, Installation = metal-free (free zone) on metal, flush in metal, Antenna shape = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Plug connector, M12x1 plug, 4-pin, Housing material = Die-cast nickel-plated brass, Nuts nickel-plated brass, Interface = IO-Link 1.1, Transfer rate = COM2 (38.4 kBaud), Process data IN = 10 bytes, Process data OUT = 10 bytes, Operating voltage Ub = 18...30 VDC Only supports LPS/Class 2, Ambient temperature = -20...80 °C, Protection class = IP67, Approval/Conformity = CE, UKCA, FCC Part 15, IC (Radio), WEEE


Questions & answers

What is the delivery time of Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz) ?

The article Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz) is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Balluff BIS018E to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz) always at the best possible price. We can give you a discount of 2% on Balluff BIS018E BIS M-404-045-401-07-S4-SA1 HF (13.56 MHz) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
