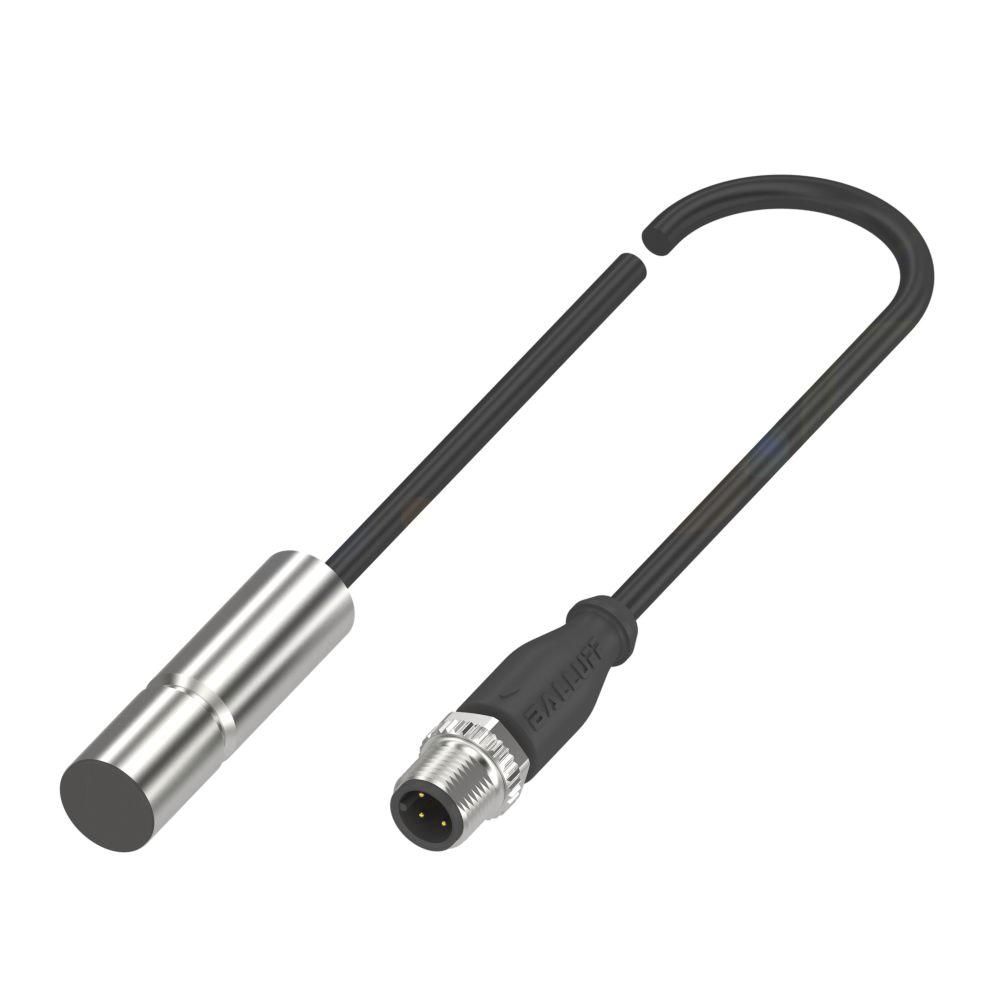

Balluff BIS VM-343-401-S4 identification system read/write heads content_copy

Application-specific HF read/write heads and antennas from Balluff in an industrial design can be easily integrated into your system. They support the globally standardized ISO 15693 and partially ISO 14443A. Thanks to a robust housing that meets protection class IP67, they are also suitable for use in harsh environments. Their range depends on the combination of read/write head and data carrier used. HF read/write heads with IO-Link interface are also available. For applications in which production progress, batch number or quality data must be recorded cost-effectively with little data. Product group = HF (13.56 MHz), Dimensions = Ø 14.5 x 55 mm, Installation = metal-free (free zone) on metal, flush in metal, Antenna shape = round, Supported data carrier types = DIN ISO 15693, DIN ISO 15693 (High Memory), Connection = Plug, 4-pin, 0.30 m, PU, Housing material = Brass, nickel-plated, Ambient temperature = 0...70 °C, Protection class = IP67, Approval/Conformity = CE, UKCA, cULus, FCC, IC (Radio), WEEE, NCC, KC, MIC
Type: BIS VM-343-401-S4
