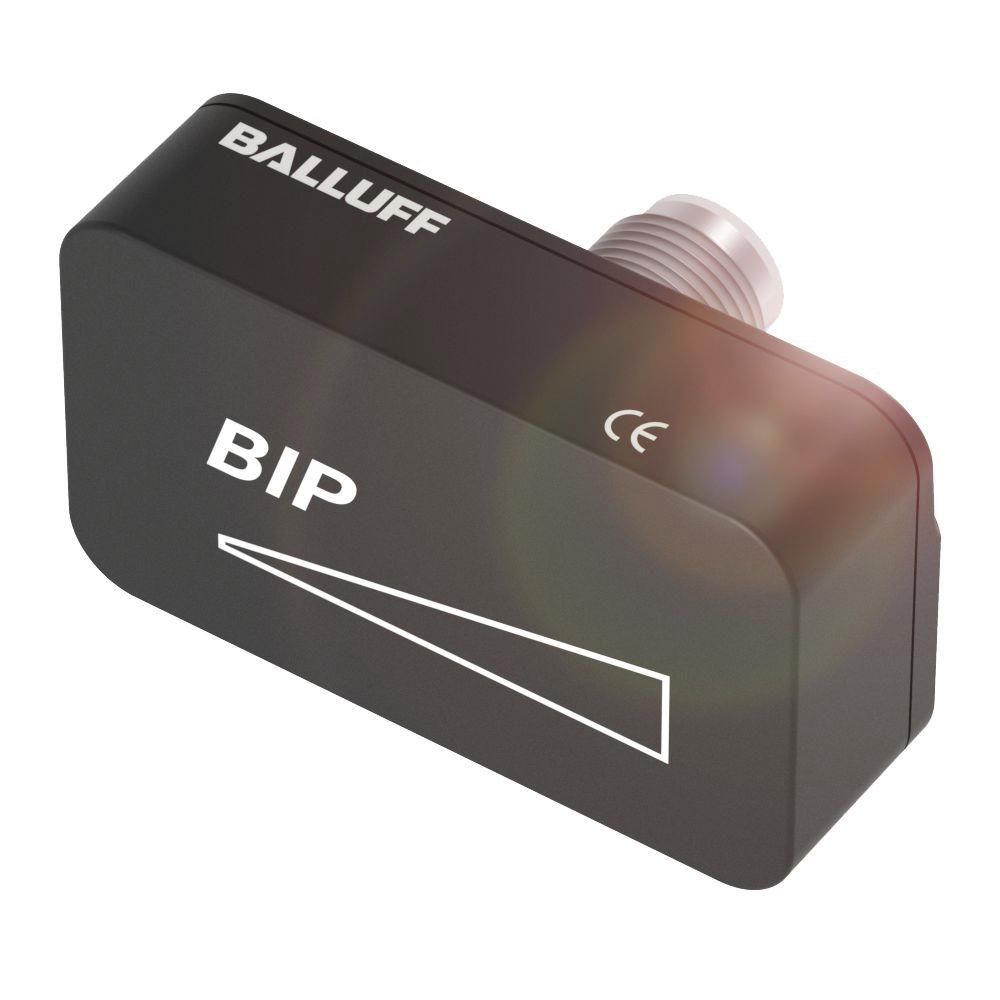

Balluff BIP AD2-T030-02-S4 inductive positioning system voltage BIP000L

The BIP inductive position measuring systems are impressive even in tight installation conditions: Perfectly integrated, they measure the position of metal objects with the highest precision without contact and therefore without wear. They reliably record linear measuring paths using a simple target. A simple component of the machine, such as the rotating disk, can already function as a target. Depending on the version, the measured values are output via IO-Link or as an analog output signal. The main area of application for the sensors is the monitoring of drive spindles and clamping devices. Here, the inductive position measuring systems ensure an error-free clamping process. In addition, the positioning system can be used in mechanical engineering for many other applications with linear movements, e.g. to record the punching depth, gripper positions, roller positions, valve positions, etc. The high repeatability ensures optimal process quality. Dimensions = 52 x 30 x 16 mm, design = cuboid, connection = plug connector, M12x1 plug, 3-pin, housing material = PA, measuring range = 0...30 mm, analog output = analog, voltage 0...10 V, output characteristic = adjustable, repeatability according to BWN = ±100 µm, linearity deviation max. = ±500 µm, operating voltage Ub = 15...30 VDC, ambient temperature = -25...85 °C, protection class = IP67, approval/conformity = CE, UKCA, cURus, WEEE
Type: BIP AD2-T030-02-S4
