Balluff BIC 1B0-ITA50-M30MF1-SM4A5A connector/connection cable BIC007L content_copy

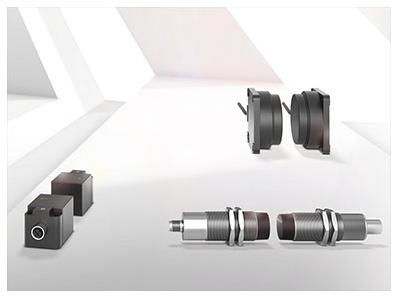

Inductive couplers for IO-Link signal transmission are used for the contactless transmission of energy and data across an air gap. This makes mechanical plug contacts superfluous. And when using our bidirectional coupling system with IO-Link, data exchange even works in both directions.The contactless signal transmission based on the IO-Link standard is transparent: the system is 'invisible' and does not need to be parameterized. You can easily integrate it between the IO-Link master and IO-Link device and communicate immediately.The system has a full IO-Link interface, regardless of the IO-Link revision level. Events, parameters and process data can thus be exchanged directly between the master and device. Function = IO-Link signal transmission, signal form = bidirectional, transmission distance = 0...10 mm, component = base, interface = IO-Link 1.1, connection = connector, M12x1 plug, 5-pin, rated operating voltage Ue = 24 VDC, housing material = brass, coated, dimensions = Ø 30 x 66.2 mm, ambient temperature = -5...55 °C, protection class = IP67, transmission rate = COM2 (38.4 kBaud), additive cycle time = device + 2.0 ms, process data IN = 0.32 bytes, process data OUT = 0.32 bytes, SIO mode = yes
Type: BIC 1B0-ITA50-M30MF1-SM4A5A
