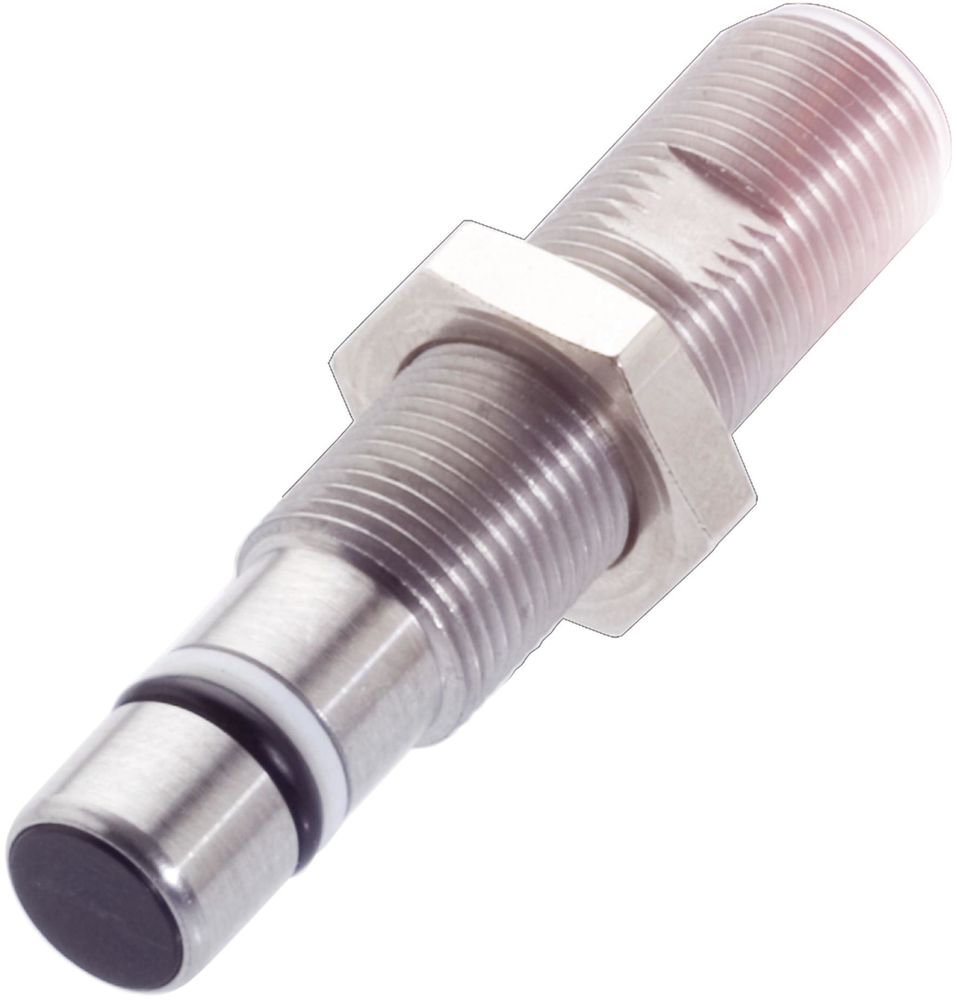

Balluff BES 516-300-S315-S4-N sensors inductive BHS004K content_copy

We offer inductive sensors for all Ex zones. The application area of these wear-free switches ranges from areas in Zones 2/22, where an explosive atmosphere rarely occurs (category 3G/3D), to areas in Zones 0/20, where the highest risk of explosion exists. With a wide range of sensor variants, we offer a broad range of applications so that you can meet a wide variety of requirements. The extensive portfolio includes, for example, high-pressure-resistant sensors up to 500 bar or sensors with an extended temperature range - and these in different designs. Of course, we also provide you with the appropriate accessories, such as NAMUR isolating amplifiers or connecting cables. Dimensions = Ø 12 x 56 mm, design = M12x1, installation = flush, range = 1.5 mm, switching frequency = 1000 Hz, housing material = stainless steel, active surface, material = POM, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 7.7...9 VDC, ambient temperature = -25...70 °C, pressure resistance max. = 500 bar, protection class = IP68, approval/conformity = CE, UKCA, CCC Ex, IECEx, ATEX, WEEE
Type: BES 516-300-S315-S4-N
