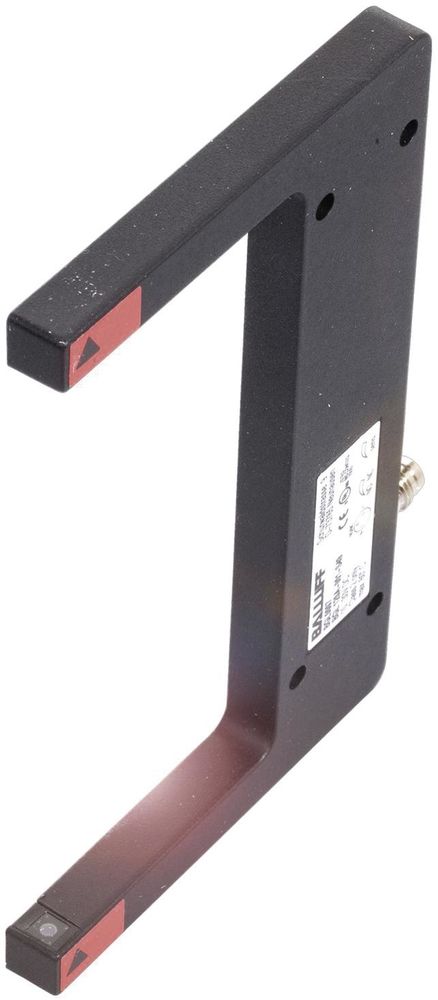

Balluff BGL 120A-005-S49, fork sensors BGL000C content_copy

Our fork light barriers with transmitter and receiver in one housing are already adjusted. This reduces your effort, saves valuable time during commissioning and supports a reliable process. In terms of accuracy, Balluff's fork light barriers are unmatched. Our comprehensive portfolio offers reliable solutions. Also for special applications such as transparency detection, water detection and web edge control. Series=A, dimensions=10 x 140 x 93 mm, fork width=120 mm, interface=PNP normally open/closed (NO/NC), functional principle=fork light barrier, optical functional principle=through-beam light barrier, beam characteristics=divergent, light type=red light, light spot size=Ø 2.5 mm light emission, connection=plug connector, M8x1 connector, 3-pin, housing material=zinc, die-cast, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE
Type: BGL 120A-005-S49
