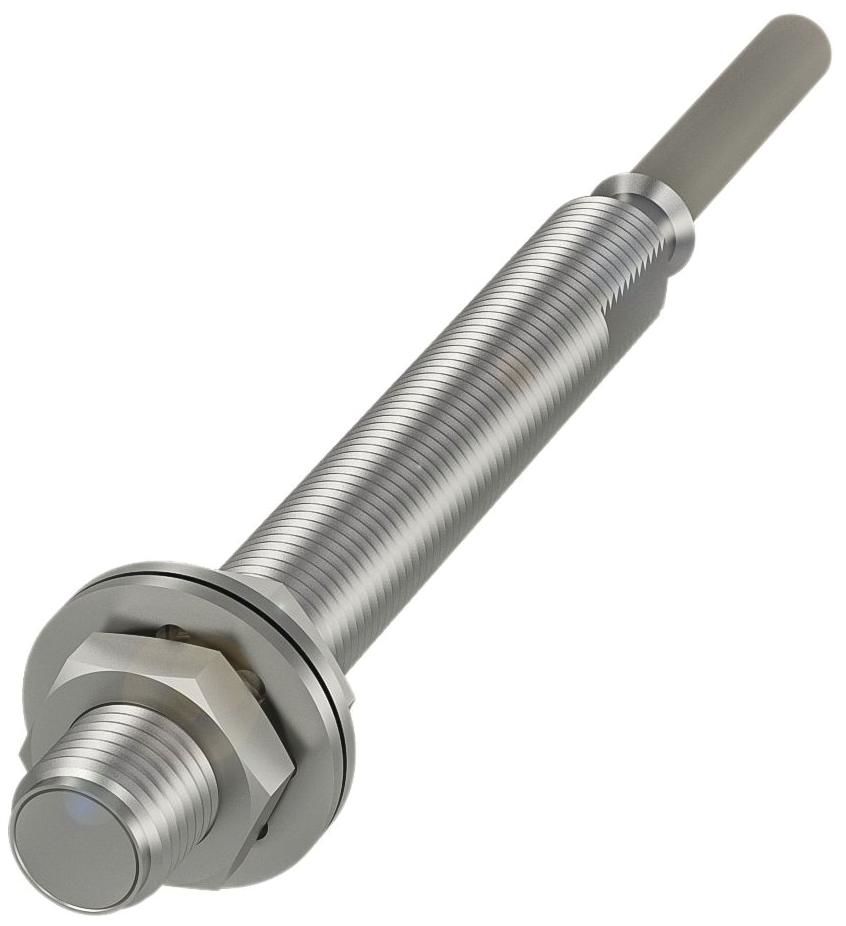

BALL Balluff BES M05EG-PSD08B-ES05-T inductive sensors, BES05RH content_copy

Our temperature-resistant inductive sensors BES can handle ultra-high temperature ranges up to 230 °C. Depending on the variant, both the housing and the cable construction are designed for increased temperatures. Their electronics are fully integrated or can be easily connected with suitable accessories. Thanks to different designs, you can easily integrate our ultra-high temperature-resistant inductive sensors in a wide variety of situations and thus optimally solve space restrictions. Some variants are also available as high-pressure sensors. This significantly expands the range of applications. Dimensions = Ø 5 x 42 mm, design = M5x0.5, installation = flush, range = 0.8 mm, switching output = PNP normally open (NO), switching frequency = 1.5 kHz, housing material = stainless steel (1.4104), active surface, material = ceramic, connection = cable, 5 m, silicone, operating voltage Ub = 10...30 VDC, ambient temperature = 0...135 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
Type: BES M05EG-PSD08B-ES05-T
