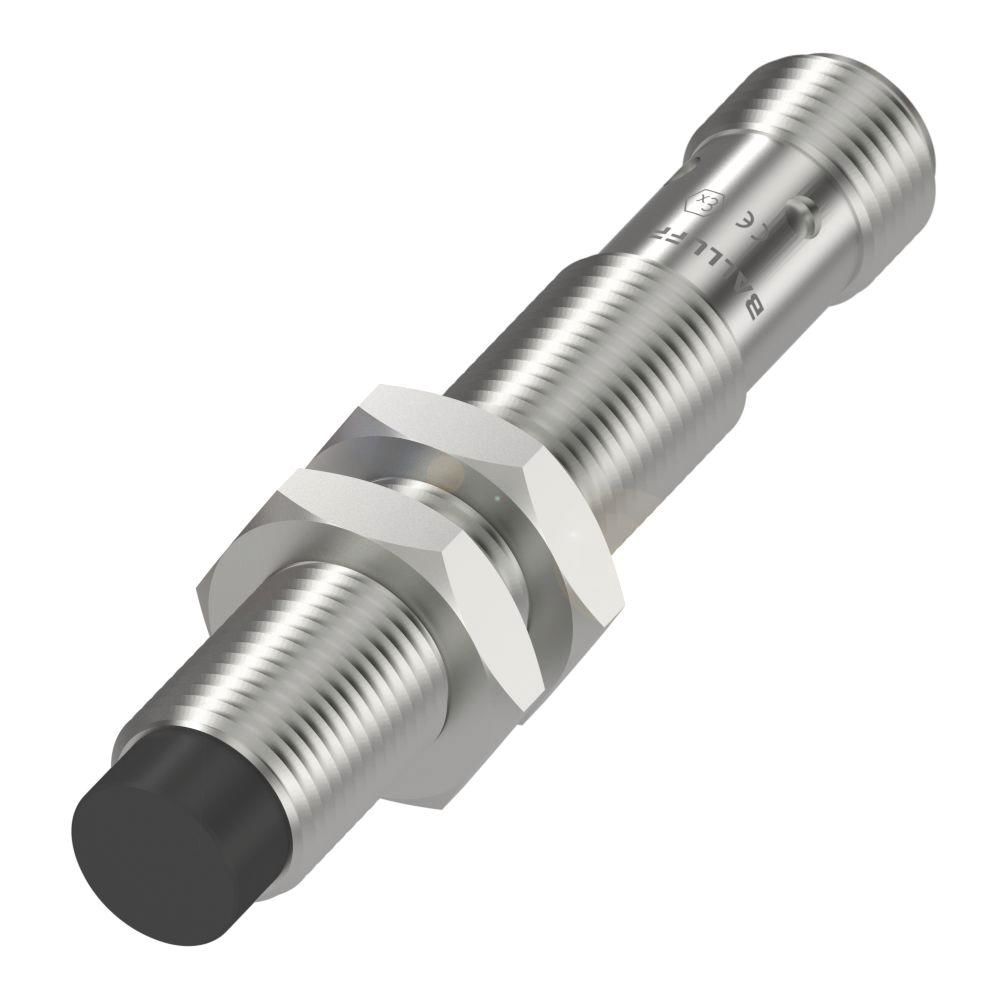

Balluff BES M12MG2-GNX40F-S04G-EXC inductive sensor BES05MY content_copy

Balluff offers you a wide range of wear-free inductive sensors with which you can cover all Ex zones.You get solutions for different applications: for areas in which an explosive atmosphere rarely occurs (category 3G/3D) and for areas (zone 0/20) in which there is a high risk of explosion.Our extensive portfolio includes both high-pressure-resistant sensors up to 500 bar and sensors with an extended temperature range and in different designs. With suitable accessories, such as NAMUR isolating amplifiers or connecting cables, you have a wide range of solutions for your individual requirements. Dimensions=Ø 12 x 70 mm, design=M12x1, installation=not flush, range=4 mm, interface=NAMUR, housing material=brass, surface protection=nickel-plated, active surface, material=PA, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=7.7...9 VDC, ambient temperature=-20...60 °C, depending on Ex category, protection class=IP67, approval/conformity=CEEACIECExATEXWEEE
Type: BES M12MG2-GNX40F-S04G-EXC
