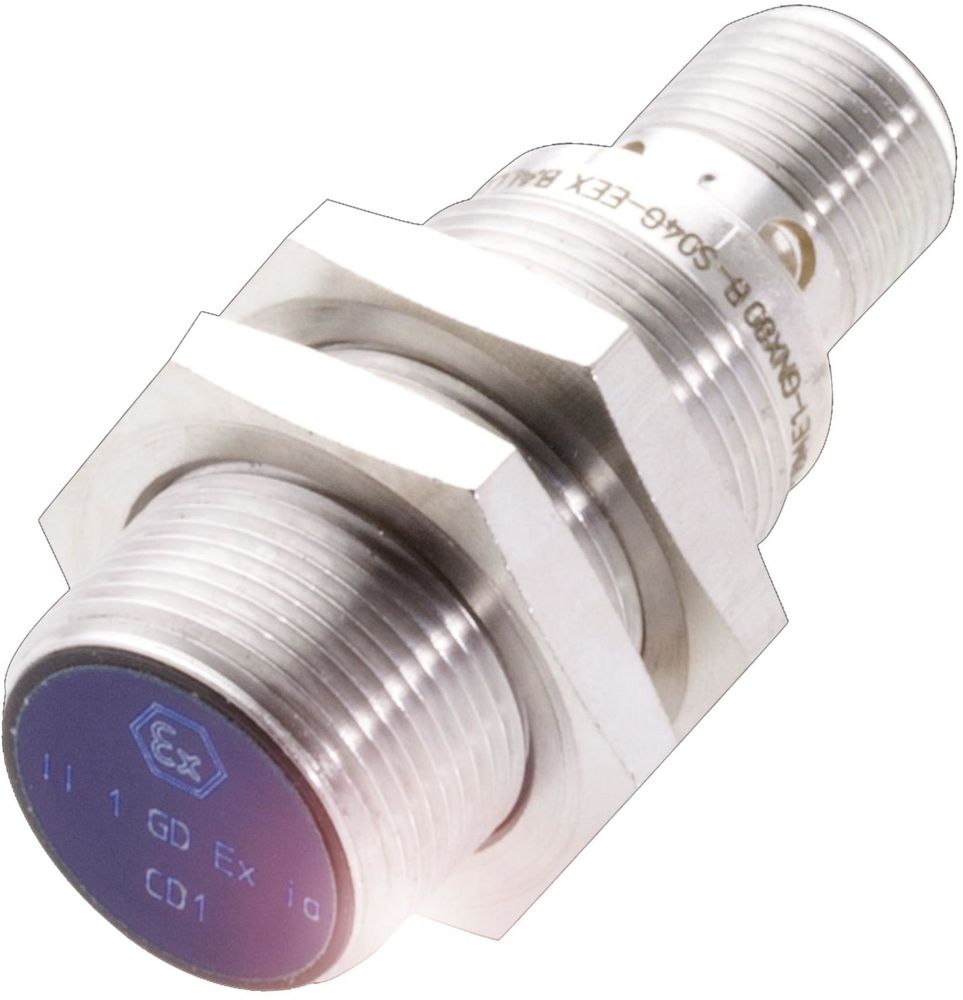

Balluff BES M18ME1-GNX80B-S04G-EEX sensors inductive BES02ZW content_copy

We offer inductive sensors for all Ex zones. The application area of these wear-free switches ranges from areas in Zones 2/22, where an explosive atmosphere rarely occurs (category 3G/3D), to areas in Zones 0/20, where the highest risk of explosion exists. With a wide range of sensor variants, we offer a broad range of applications so that you can meet a wide variety of requirements. The extensive portfolio includes, for example, high-pressure-resistant sensors up to 500 bar or sensors with an extended temperature range - and these in different designs. Of course, we also provide you with the appropriate accessories, such as NAMUR isolating amplifiers or connecting cables. Dimensions = Ø 18 x 46 mm, design = M18x1, installation = flush, range = 8 mm, interface = NAMUR, switching frequency = 400 Hz, housing material = brass, nickel-free coated, active surface, material = PBT, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 7.7...9 VDC, ambient temperature = -20...70 °C, Ex category = ATEX: 1D (EPL Da), ATEX: 1G (EPL Ga), ATEX: 2D (EPL Db), ATEX: 2G (EPL Gb), ATEX: 3D (EPL Dc), ATEX: 3G (EPL Gc), protection class = IP67, approval/conformity = CE, ATEX, IECEx, FM, cCSAus, WEEE, CCC Ex
Type: BES M18ME1-GNX80B-S04G-EEX
