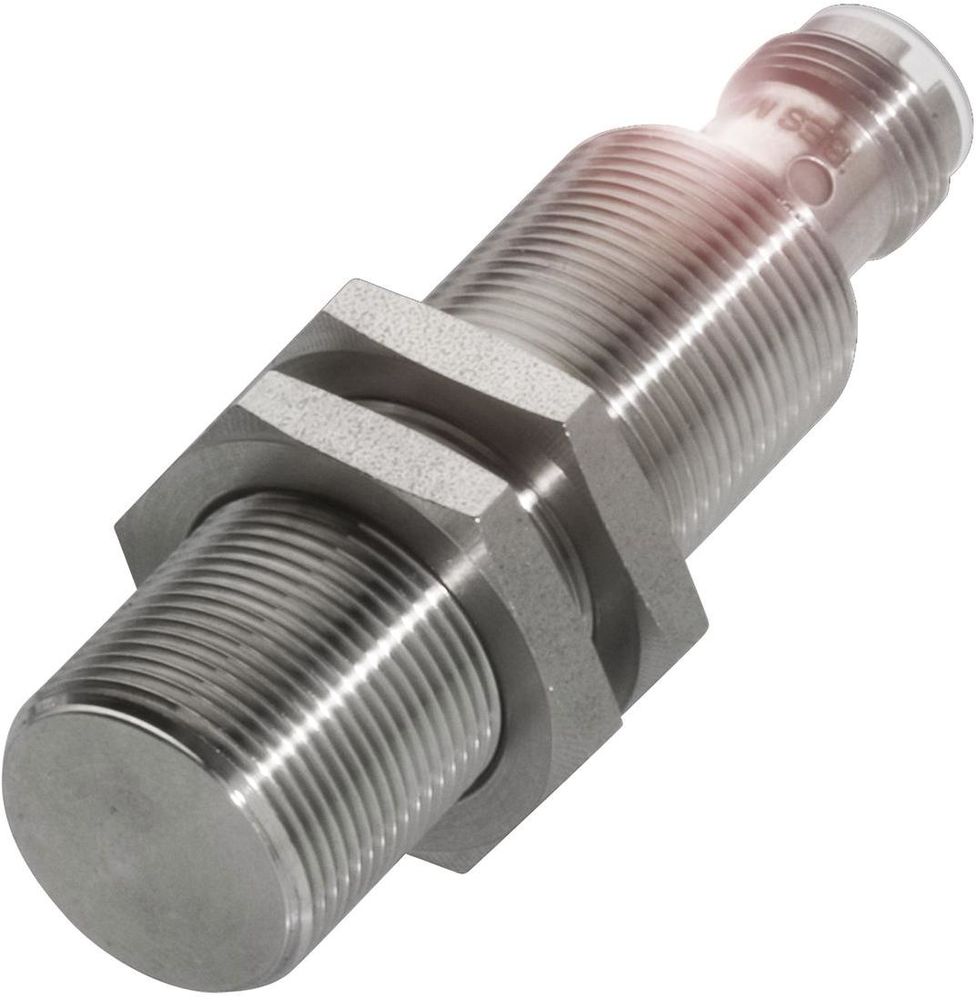

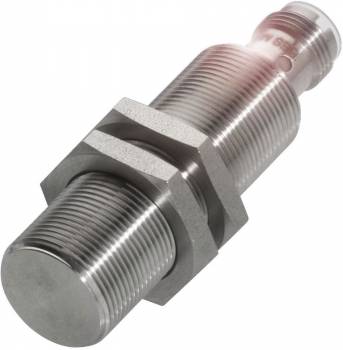

Balluff BES M18EI-PSC72B-S04G-S sensors inductive BES02NJ content_copy

Our high-pressure-resistant BHS inductive sensors can withstand pressures of up to 500 bar. They are therefore perfectly suited for position monitoring of your hydraulics, such as end position control on hydraulic cylinders or monitoring valve positions. Their resilience is made possible by media-resistant housing materials and a special sealing process. For your individual applications, we offer you various designs and a comprehensive range with different housing diameters and thread sizes. Dimensions = Ø 18 x 65 mm, design = M18x1, installation = flush, range = 7.2 mm, switching output = PNP normally open (NO), switching frequency = 350 Hz, housing material = stainless steel, active surface, material = stainless steel, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, pressure resistance max. = 40 bar, protection class = IP67, approval/conformity = cULus, CE, UKCA, WEEE
Type: BES M18EI-PSC72B-S04G-S
