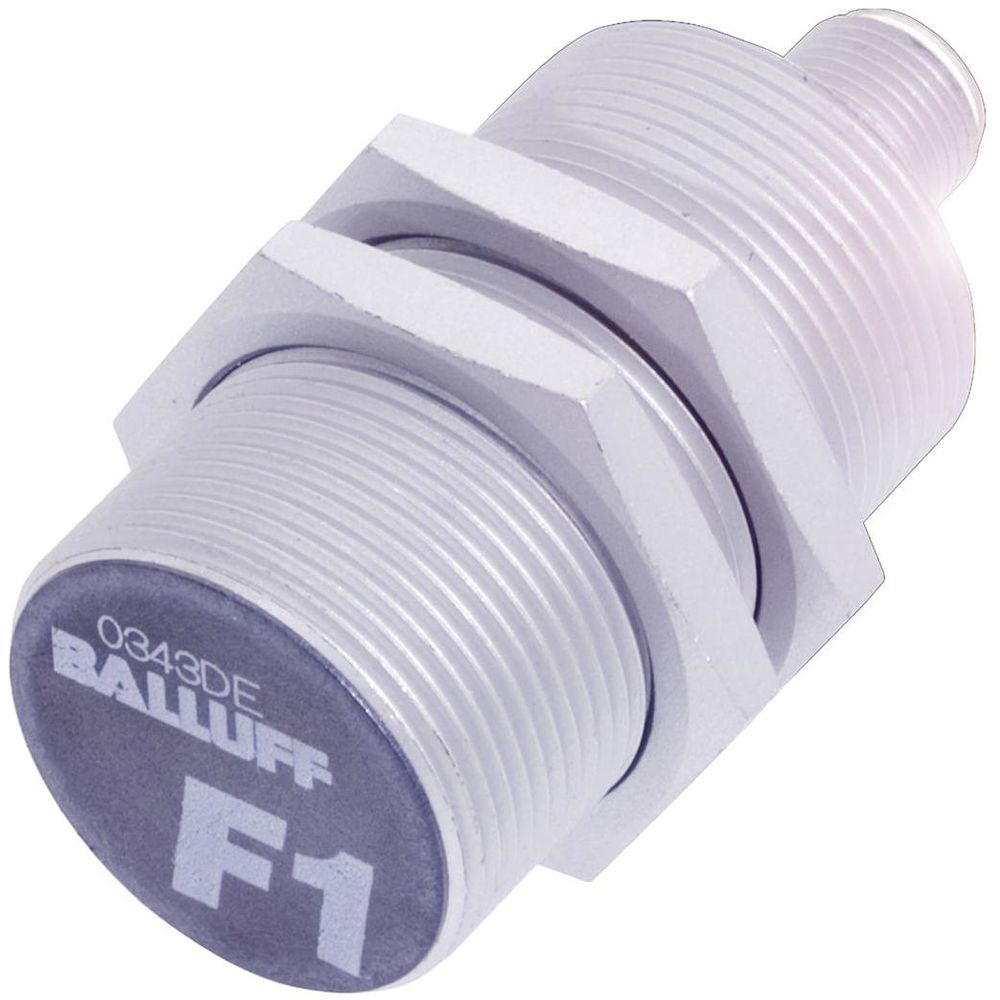

Balluff BES M30ML-PSC10A-S04G-W01 Indu. Sensor DC 3/4 wire BES02KN content_copy

The inductive factor 1 sensors from Balluff detect all metals with high precision and are particularly impressive where different types of metal are being worked with. They offer long switching distances without a reduction factor and are resistant to magnetic fields, making them suitable for areas with strong electromagnetic fields - for example in welding systems. For these harsh environments, you can also get corresponding versions with an extremely resistant coating against welding spatter. Dimensions=Ø 30 x 65 mm, design=M30x1.5, installation=flush, range=10 mm, switching output=PNP normally open (NO), switching frequency=600 Hz, housing material=brass, surface protection=coated, PTFE, active surface, material=ceramic coated, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, magnetic field resistant=magnetic field resistant (AC/DC), protection class=IP67, approval/conformity=CEcULusEACWEEE, additional properties=factor 1 weld-proof
Type: BES M30ML-PSC10A-S04G-W01
