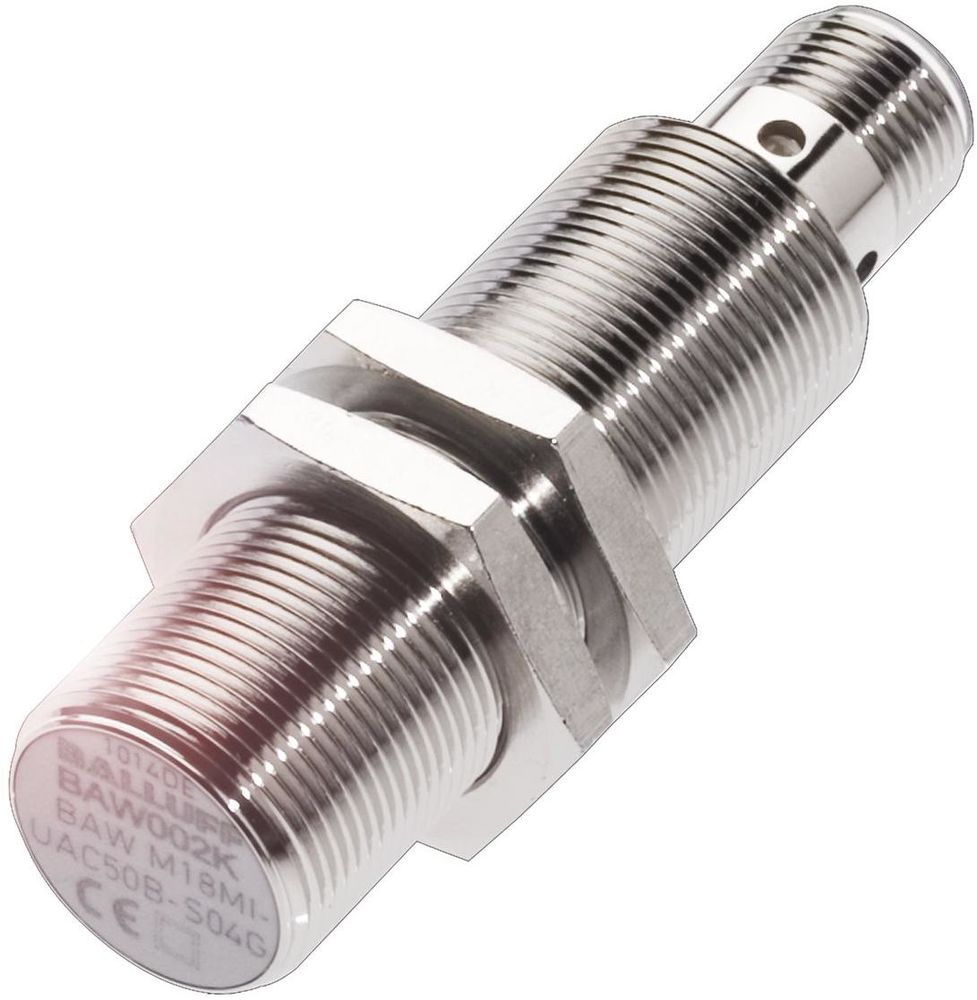

Balluff BAW M18MI-ICC50B-S04G distance sensors inductive BAW002J content_copy

Our BAW inductive distance sensors measure different positions and distances and can also differentiate between different material variants. They work without contact, are therefore wear-free and have a long service life. Their teach function has an adjustable linearity range, which enables quick commissioning during initial installation and ensures minimal downtime when replacing sensors. The variety of available designs means that the inductive distance sensors can be easily integrated into any application. Important areas of application include monitoring movements in joining, punching or clamping devices in mechanical engineering or detecting imbalances and expansions of axes. The inductive distance sensors deliver an absolute analog voltage, current or IO-Link signal. Dimensions = Ø 18 x 65 mm, design = M18x1, installation = flush, range = 1...5 mm, analog output = analog, current 4...20 mA, output characteristic = falling when approaching, limit frequency -3 dB = 500 Hz, repeat accuracy according to BWN = ±8 µm, linearity deviation max. = ±120 µm, housing material = brass, nickel-plated, active surface, material = PBT, connection = plug connector, M12x1 plug, 3-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -10...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
Type: BAW M18MI-ICC50B-S04G
