Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black,

Your rating:
Average rating
product review for Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black,
( 4.7 / 5 ) 3 ratings

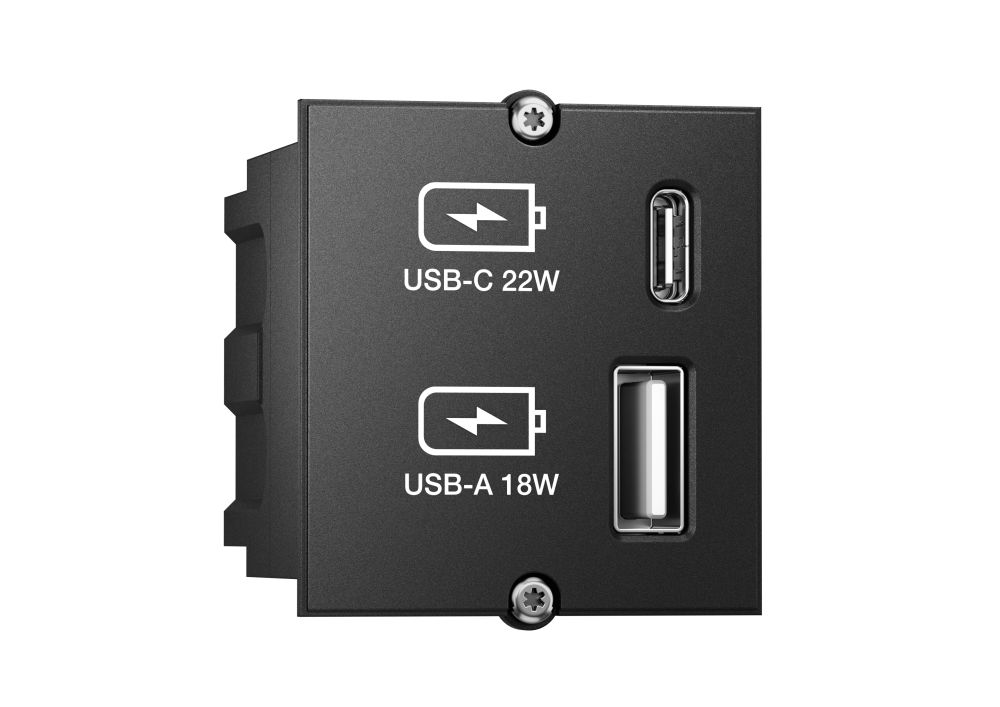

Bachmann 917.227
This image may differ from the desired article.
Bachmann 917.227Bachmann 917.227
69,00 EUR 71,90 EUR
( 82,11 EUR incl. VAT )
≈ £57.75  |  ≈ $75.83
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black,
Lieske Part No.:1778701
Mfg Part No: 917.227
UPC/EAN: 4057298081149
Weight:0.2 kg
Type:917.227
Graduated prices net
From piecesPrice per pieces
666,41 EUR
1263,83 EUR
2461,24 EUR
3658,65 EUR

Product information for Bachmann 917.227:

The Bachmann Custom Module 917.227 is an integrated charging module for installation in electrical installations, featuring USB-A and USB-C sockets. It is designed to power mobile devices such as smartphones, tablets, or other USB-powered devices. The module is specifically designed for use in enclosures, wall sockets, or other installation scenarios where direct power supply via USB connections is required. It is finished in black, with sockets designed for compatible use with various devices.

Applications
This module is intended for indoor use, particularly in areas where continuous power supply for mobile devices is necessary, such as offices, hotels, hospitals, or public facilities. The installation solution allows for discreet and integrated mounting, eliminating the need for external chargers or cables distributed throughout the space. Power supply is provided via an installation plug connector directly integrated into the electrical installation.

Functions and Equipment in Detail
The module features two separate USB connections: one USB-A port and one USB-C port. The USB-A port supports multiple voltage and current combinations: 5 V/3.0 A, 9 V/2.0 A, and 12 V/1.5 A. The USB-C port also offers multiple output power levels: 5 V/3.0 A, 9 V/2.3 A, and 15 V/1.5 A. Additionally, a combination of USB-C and USB-A (C+A) is available, providing an output power of 5 V/3.5 A. This configuration allows flexible use depending on the device's connection type. Power supply is provided via a 0.2 m long GST18 plug connector, designed for integration into the electrical installation.

Technology Explained Simply
The various voltage and current values enable compatible charging of many modern devices. The 5-volt option is the standard voltage for USB devices, while higher voltages (9 V and 12 V, or 15 V) are suitable for faster charging, especially for devices supporting Quick Charge technology. The current (in amperes) determines how quickly the device can be charged. The combination of USB-A and USB-C expands compatibility, as many current devices use USB-C connectors, while older devices often require USB-A connectors. Power supply is provided via the installation plug connector, directly connected to the electrical supply.

Compatibility and Accessories
The module is compatible with devices featuring USB-A or USB-C connectors. The specified voltage and current values correspond to common standards for USB chargers. The use of the GST18 plug connector enables direct integration into existing electrical installations. The delivery includes the module and two screws for mounting.

Installation and Mounting
Mounting is performed using the included screws, with the module installed into a suitable mounting frame or wall socket. Power connection is made via the 0.2 m long GST18 plug connector, integrated into the electrical installation. Installation must comply with applicable electrical standards and regulations. Packaging is in a poly bag.

Operational Advantages
The module provides a compact and integrated solution for powering mobile devices. The combination of USB-A and USB-C ensures broad compatibility. The various output power levels support both standard and fast charging. The built-in solution reduces the number of external chargers and cables in the space, contributing to a tidier and safer environment. Power supply is directly from the electrical installation, eliminating the need for additional power sources.

General
ManufacturerBachmann
Product typeCustom Module
USB-A output5V/3,0A, 9V/2,0A, 12V/1,5A
USB-C output5V/3,0A, 9V/2,3A, 15V/1,5A
C+A output5V/3,5A
Power input0.2m GST18
Scope of deliveryModule, 2 screws
Packagingpoly bag


Questions & answers

What is the delivery time of Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black, ?

The article Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black, is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bachmann 917.227 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black, always at the best possible price. We can give you a discount of 2% on Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black, if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bachmann 917.227 zbh. USB A&C Charger Custom Modul, Black, we can offer you a price of 66,41 EUR per piece. The more you buy, the cheaper the article will be.
