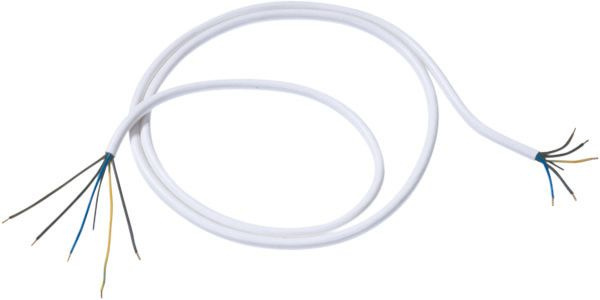

Bachmann 116.271 appliance cord H05VV-F 5G1.5 2m white AEH/AEH content_copy

The Bachmann hobart connection cable type 116.271 is a connection cable specifically designed for connecting electric cookers and similar household appliances. The product is delivered in a 10-piece bundle and corresponds to cable type H05VV-F with a cross-section rating of 5G1.5 mm². The total length is 2.0 meters, and the color is white. This version is suitable for use in residential and commercial spaces where a safe and durable connection between the appliance and the socket is required.

Applications
This cooker cable is intended for connecting electric cookers, hob units, and other high-power household appliances that are plugged into the power grid via a socket. Cable type H05VV-F is designed for indoor use and offers sufficient mechanical and thermal load capacity. The white color blends visually into typical kitchen environments. The cable is used in conjunction with suitable sockets and grounded sockets to ensure the required power supply.

Functions and Equipment in Detail
The cable features five conductors, with three for phase and neutral lines and the green-yellow protective conductor for grounding. The protective conductor has a length of 140 mm and is designed for a secure connection to the grounding contact of the socket. At both ends of the cable, wire end ferrules are stripped: 50 mm on side 1 and 110 mm on side 2. These dimensions allow for a secure and clean connection with the corresponding terminals or screw connections in the socket and at the appliance. The cables are delivered in a 10-piece bundle, which is advantageous for use in larger installations or for multiple appliances.

Technology Explained Simply
The designation H05VV-F describes the cable type according to DIN VDE 0815. Here, H stands for household cable, 05 for a rated voltage of 300/500 V, VV for PVC (polyvinyl chloride) insulation, and F for flat-shaped conductors. The specification 5G1.5 mm² indicates a 5-conductor cable, with each conductor having a cross-section of 1.5 mm². This cross-section size is sufficient for powering electric cookers with a power up to approximately 10.5 kW at 230 V. The white color is standard for kitchen cables and supports visual integration into the environment.

Compatibility and Accessories
The cooker cable is compatible with sockets and grounded sockets designed for a rated voltage of 230 V. Suitable accessories available in the range include cooker cables with similar specifications, but with a length of 3 meters (item 119.272) or 2 meters (item 119.271), also in white color and with the same cable type H05VV-F 5G2.5 mm². These variants can be selected according to the required installation length. The use of AEH/AEH (wire end ferrules) is standard to ensure a secure and durable connection.

Installation and Mounting
Installation is carried out by connecting to the socket and the electric appliance. The wire end ferrules at both ends are already stripped, allowing direct connection to the terminals or screw connections. The lengths of the wire end ferrules (50 mm and 110 mm) are chosen to enable a secure connection without damaging the insulation. Installation should be performed by a qualified electrician to ensure safety.

Operational Advantages
The use of a dedicated cooker connection cable provides a safe and reliable power supply for high-power appliances. Cable type H05VV-F is designed for indoor use and offers sufficient mechanical strength. The white color blends visually into kitchens. Delivery in a 10-piece bundle enables efficient use in multiple installations. The pre-fabricated wire end ferrules reduce installation time and increase the safety of the connection.

General
Cable type	H05VV-F
Cross section	5G1,5 mm²
Colour	White
Ferrules side 1	50 mm
Ferrules side 2	110 mm
Protective conductor length	140 mm
Type of delivery	10-piece bundle

---
