Baaske Medical 2011542
Baaske power strip MEDX ZPA 8 compartment 3m

Modular 8-socket power strip TÜV certified
Modular. Customizable. Unique.

The MEDX ZPA power strip provides a tailored solution for your individual systems. This 8-socket power strip perfectly adapts to the specific requirements and space constraints of your setup. With its modular design, up to eight sockets can be incorporated without compromising on essential safety features. Each module is equipped with an additional potential equalization (ZPA) and two G-fuses, ensuring the highest level of safety. Furthermore, the strip includes an additional potential equalization on the housing, allowing it to serve as a local ZPA distributor.

The MEDX ZPA power strip is specifically designed for medical use and TÜV-certified for applications with anesthesia equipment. Each outlet module is double-protected, and the robust 2.5 mm² power cable with kink protection enhances safety. The pull-off protection ensures that the electrical system is not accidentally altered. The strip can be mounted on standard rails or IV stands for added flexibility. Made in Germany, this product comes with a 5-year warranty, representing top-quality craftsmanship.

Technical data:

• Number of outlets: 8

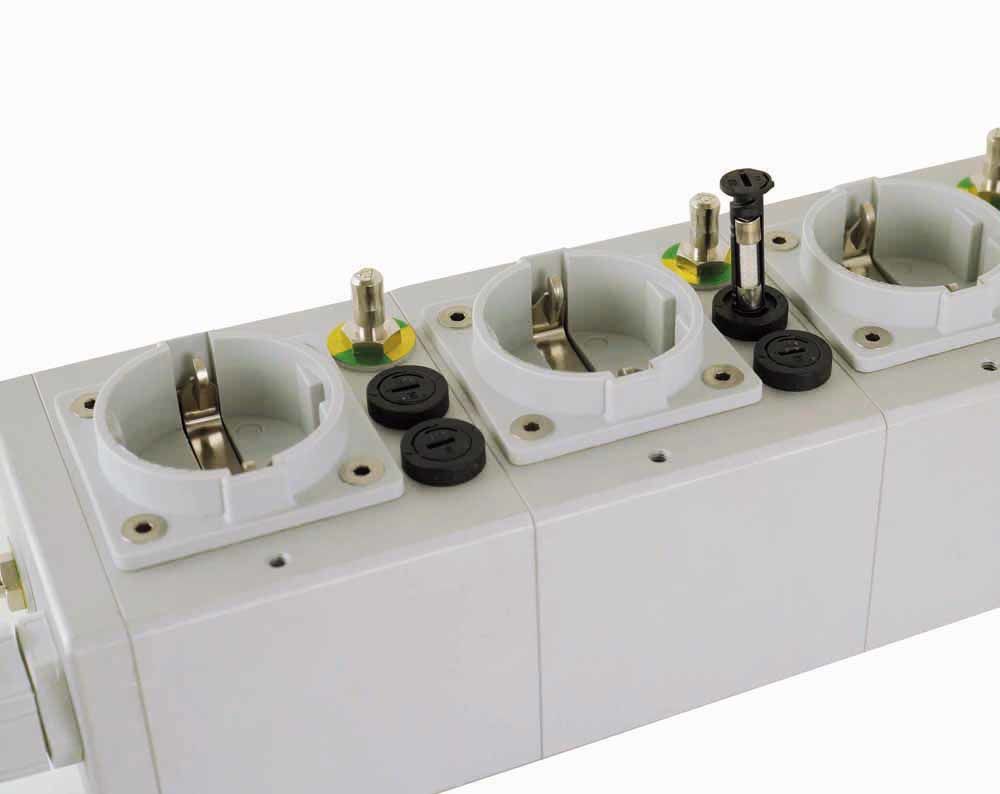

• Fuses: 2 fine fuses 5x 20 mm per module
• Potential equalization: Additional ZPA per module and on the housing
• ZPA plug: According to DIN 42801

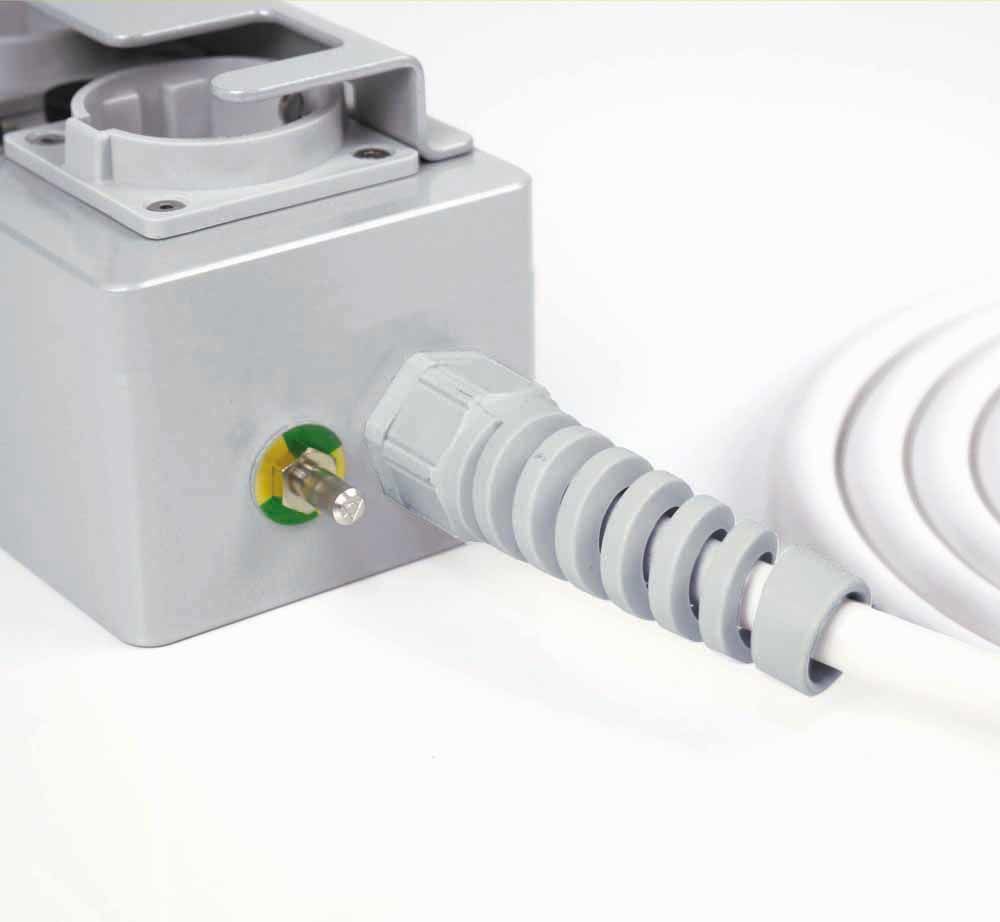

• Power cable: 2.5 mm² with kink protection
• Cable length: 3 m
• Load per outlet: Max. 2000 W
• Total power strip load: Max. 3600 W
• Dimensions per module (LWH): 90 x 78 x 60 mm
• Housing: Anodized aluminum
• Certifications: TÜV-certified, VDE outlets with VDE mark
• Standards: IEC 60601-1:2005 + A1:2012, IEC 60601-1:2005 + A1:2012/AMD1:2012, ISO 80601-2-13:2011/AMD1:2005
• Warranty: 5 years

Included items:

• 1x MEDX ZPA 8-socket power strip (custom-built to customer specifications)

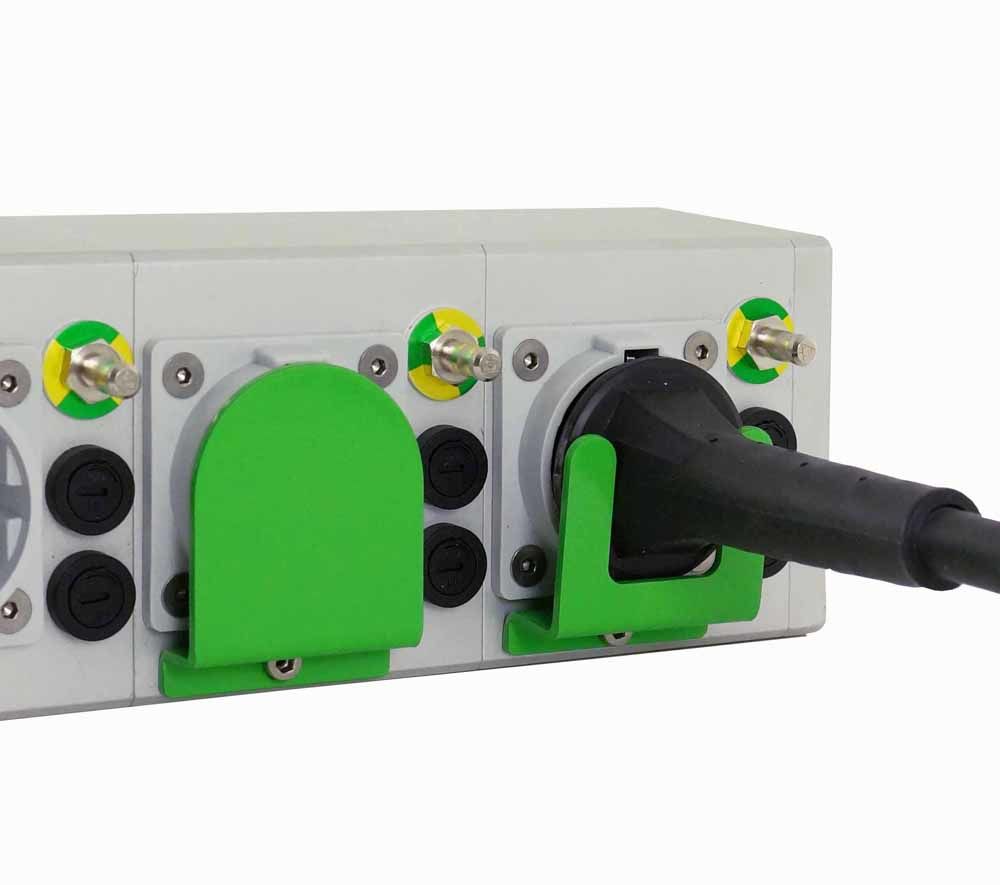

• 1x MEDX pull-off protection green kit
• 1x socket wrench

*Custom-built – not user-modifiable.
Patent pending.
