Baaske Medical 2011541
Baaske power strip MEDX ZPA 7 compartment 5m

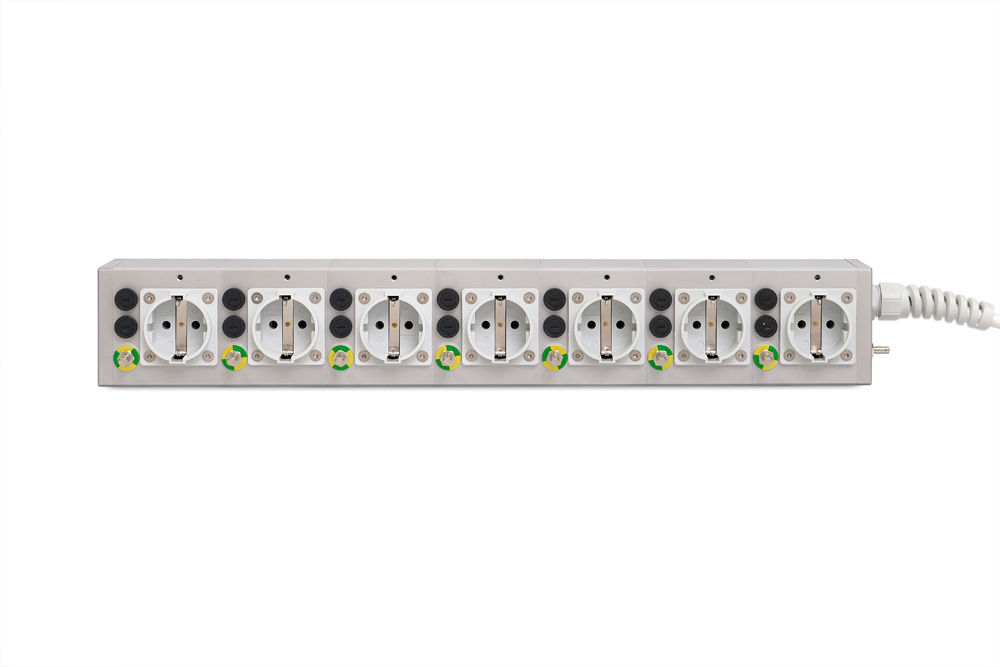

Modular 7-socket power strip TÜV certified
Modular. Customizable. Unique.

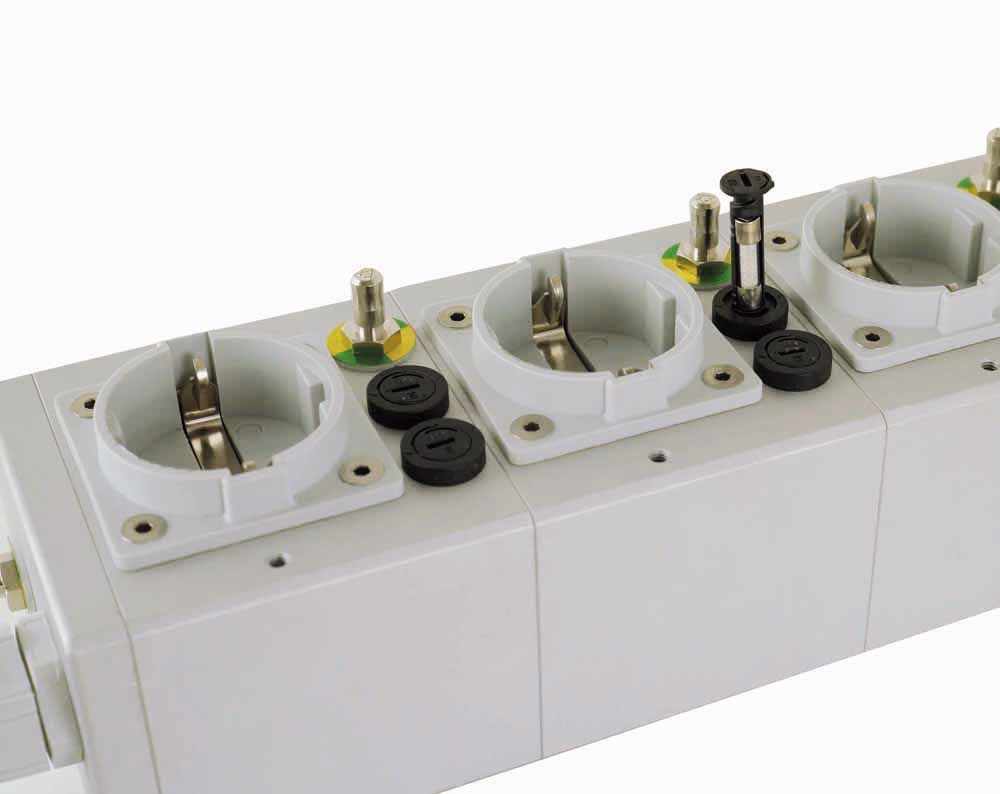

The MEDX ZPA power strip is the ideal solution for systems requiring flexible and safe power distribution. This 7-socket power strip perfectly adapts to the specific requirements and space constraints of your system. Thanks to its modular design, the power strip can be tailored to your needs without compromising on essential safety features. Each module is equipped with an additional potential equalization (ZPA) and two G-fuses, ensuring the highest level of safety. Moreover, the additional potential equalization on the housing provides extra security, allowing the strip to also function as a local ZPA distributor.

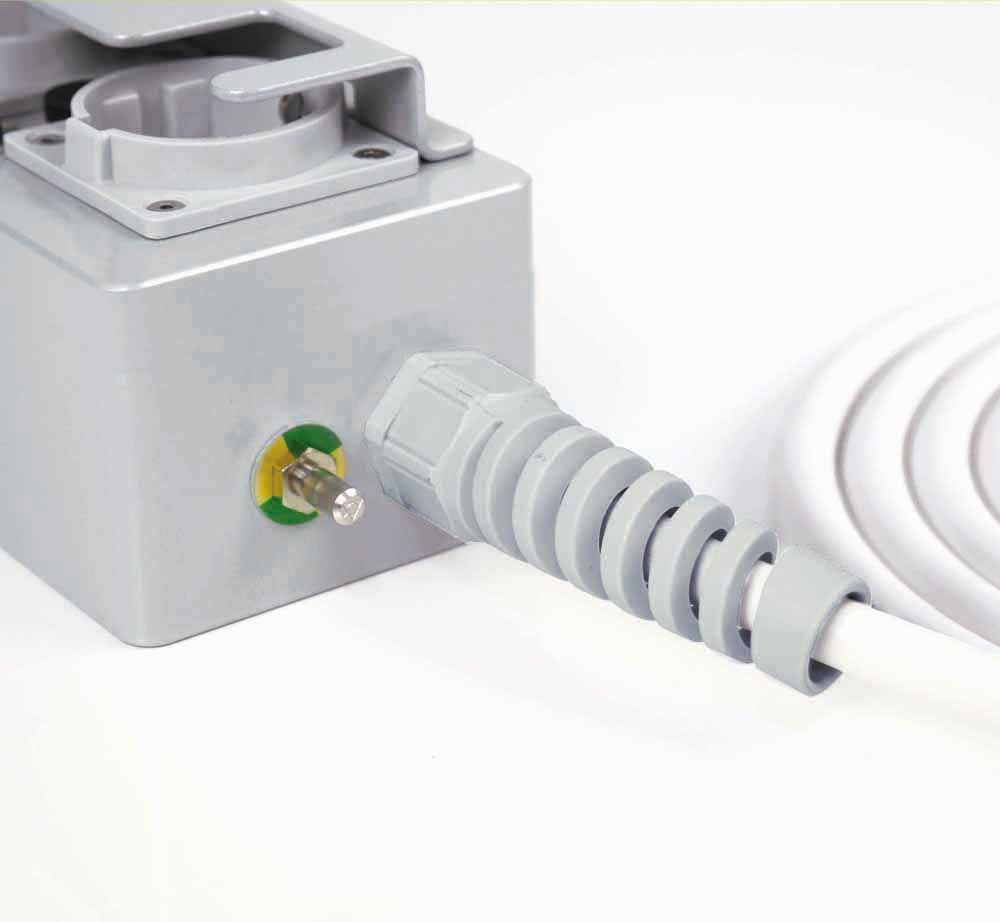

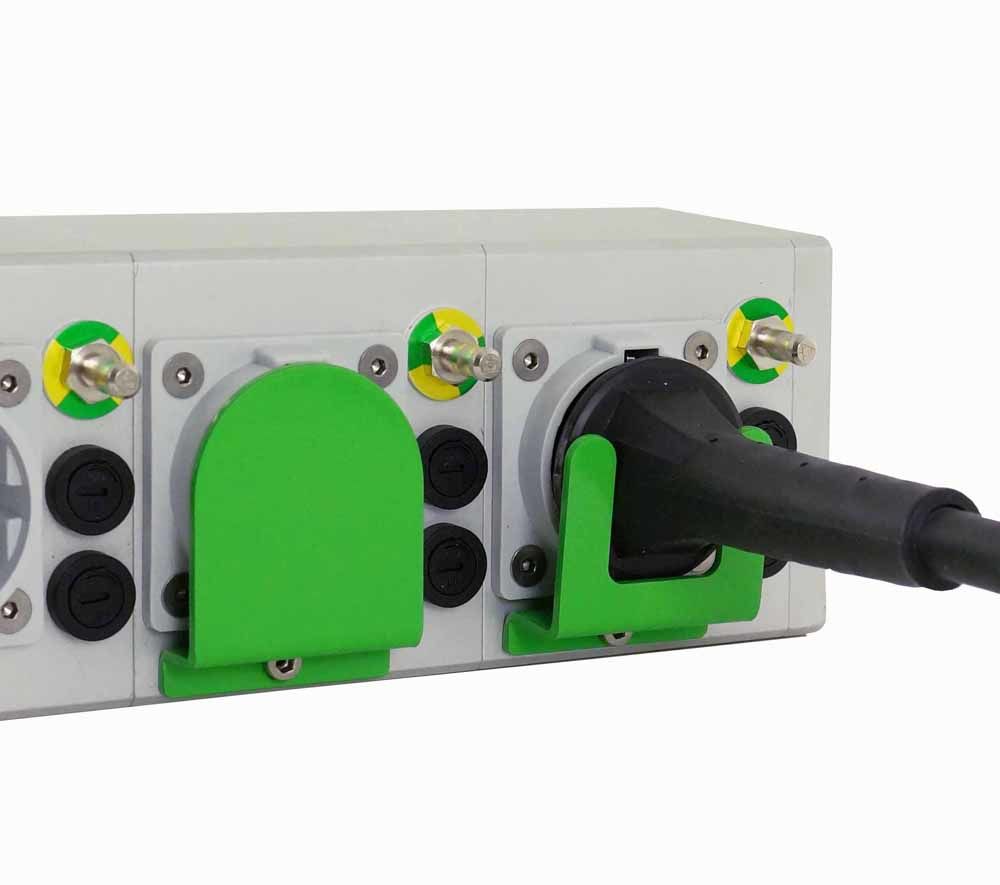

Designed for medical use, the MEDX ZPA power strip is TÜV-certified, making it perfect for use with anesthesia equipment. Each outlet module is double-protected, and the 2.5 mm² power cable is safeguarded by a kink protector. The pull-off protection ensures the system is not accidentally altered. The power strip can be mounted on standard rails or IV stands and comes with a 5-year warranty – offering Made in Germany quality.

Technical data:

• Number of outlets: 7
• Fuses: 2 fine fuses 5x 20 mm per module
• Potential equalization: Additional ZPA per module and on the housing
• ZPA plug: According to DIN 42801
• Power cable: 2.5 mm² with kink protection
• Cable length: 5 m
• Load per outlet: Max. 2000 W
• Total power strip load: Max. 3600 W
• Dimensions per module (LWH): 90 x 78 x 60 mm
• Housing: Anodized aluminum
• Certifications: TÜV-certified, VDE outlets with VDE mark
• Standards: IEC 60601-1:2005 + A1:2012, IEC 60601-1:2005 + A1:2012/AMD1:2012, ISO 80601-2-13:2011/AMD1:2005
• Warranty: 5 years

Included items:

• MEDX ZPA 7-socket power strip
• User manual
• Mounting materials for standard rails or IV stands
• Warranty certificate
