Baaske Medical 2011540

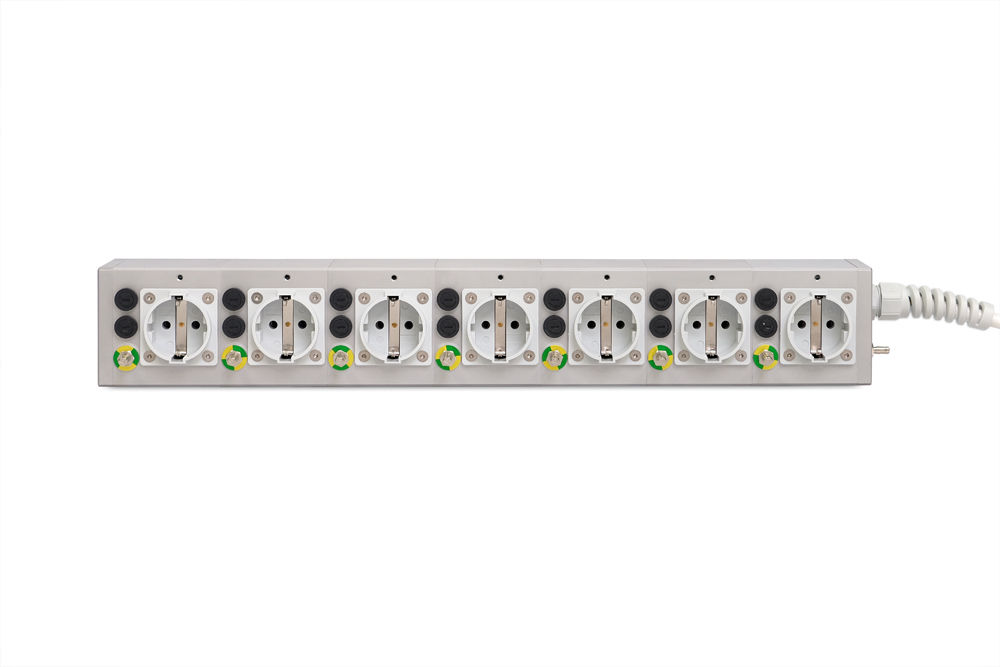

Baaske power strip MEDX ZPA 7 compartment 3m

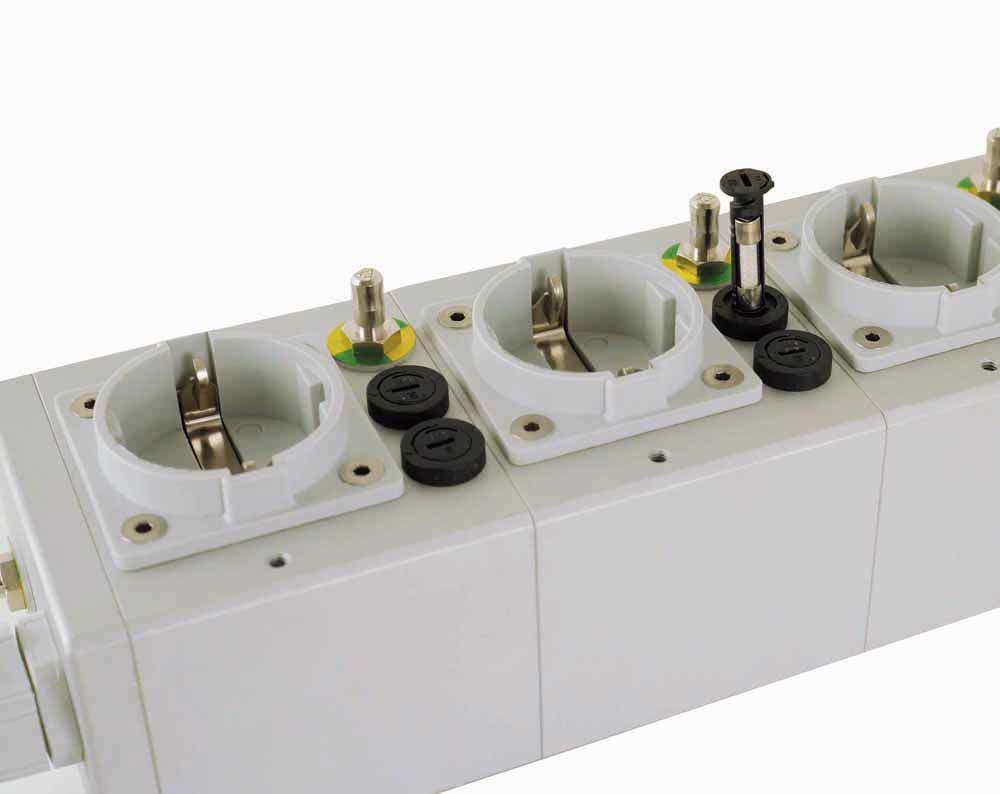

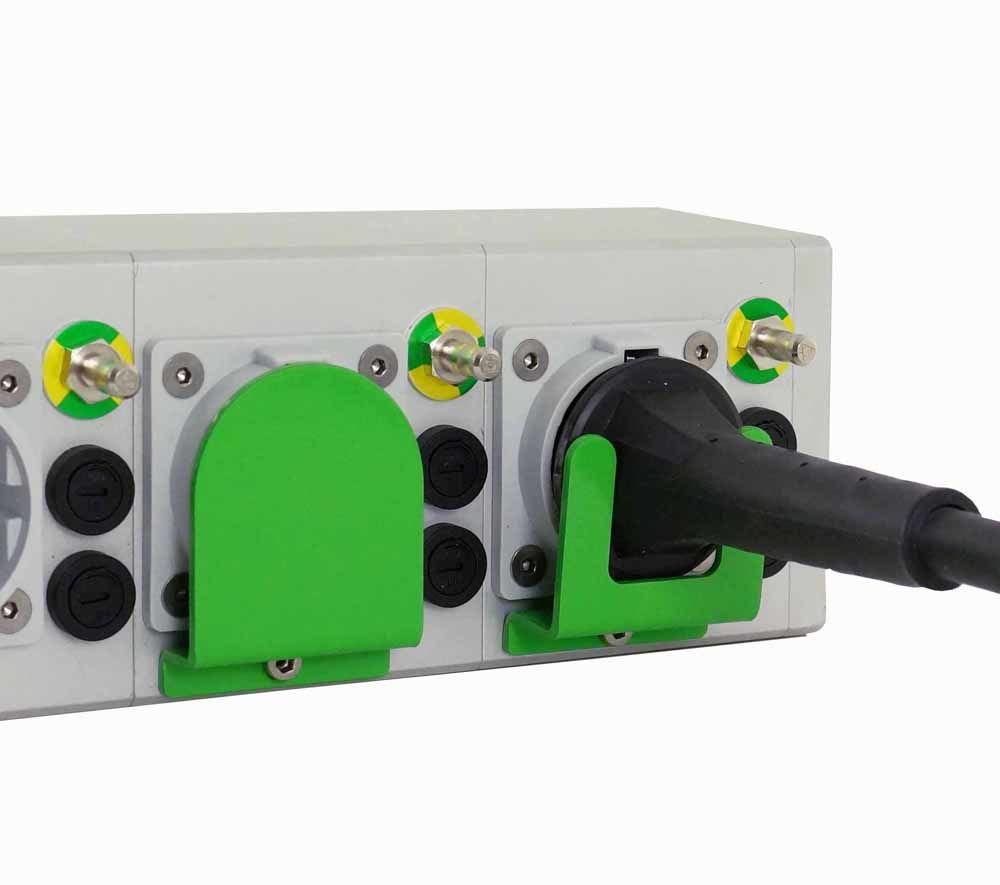

The MEDX ZPA medical power strip, 7-socket, 3 m, offers a flexible and secure solution for use in medical environments. This modular power strip is TÜV-certified and specifically designed for use with anesthesia equipment and other medical systems. Its modular construction allows for customization, providing a tailored solution in terms of space and load management. With up to eight socket modules and a 3-meter cable, it is highly adaptable. Each of the seven socket modules features double protection with two G-fuses and an additional potential equalization (ZPA), enabling the power strip to also function as a local ZPA distributor. The robust anodized aluminum housing ensures added security and durability. A pull-out safety feature prevents unintentional changes to the electrical system, and the power strip can be mounted on standard rails or infusion stands.

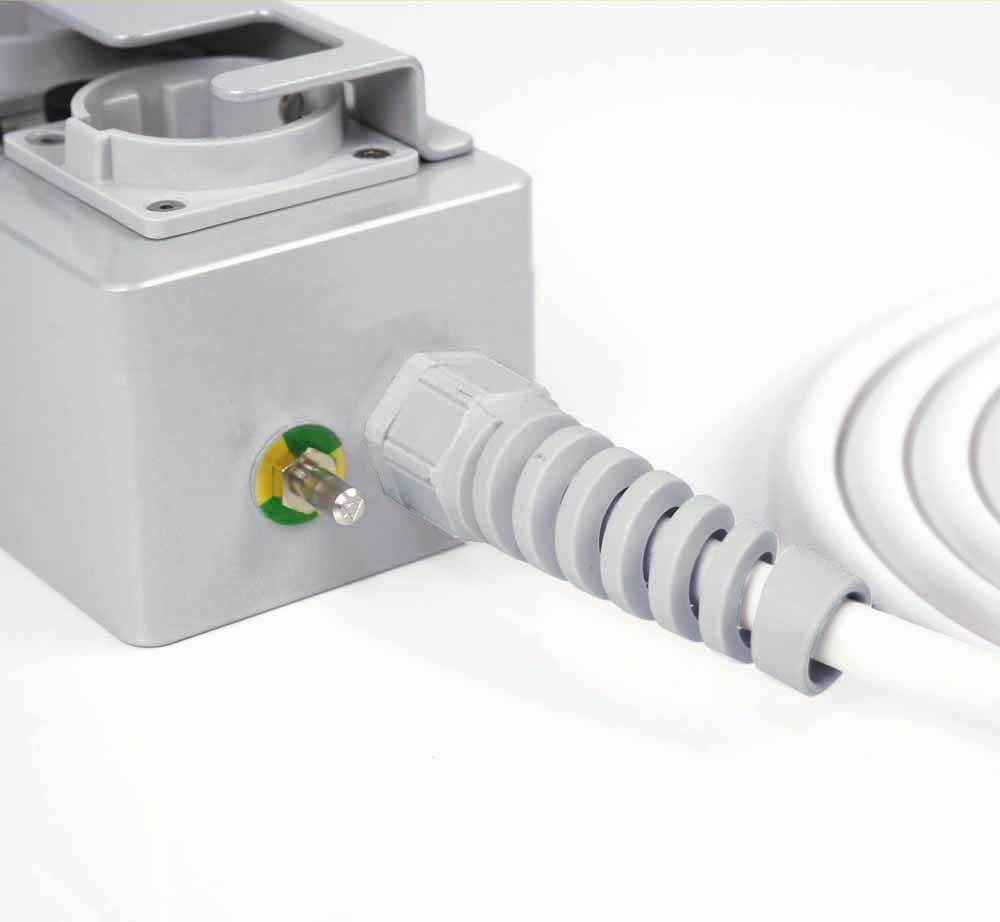

Manufactured in Germany, the MEDX ZPA power strip meets the highest safety standards, as evidenced by its certifications under IEC 60601-1 and ISO 80601-2-13. With its 2.5 mm² thick supply cable and kink protection at the housing, a safe power supply is guaranteed. With a maximum load of 2000 W per socket and a total load capacity of 3600 W, the power strip is suitable for a wide range of medical devices. It comes with a 5-year warranty, making it a reliable choice for use in sensitive medical areas.

Technical Data:

• Fuse per socket module: 2 fine fuses 5 x 20 mm
• ZPA plug: According to DIN 42801
• Cable length: 3 m
• Number of modules: 7
• Load per socket: Max. 2000 W
• Total power strip load: Max. 3600 W
• Dimensions per module (L x W x H): 90 x 78 x 60 mm
• Housing: Anodized aluminum
• Standards:
- IEC 60601-1:2005 + A1:2012
- IEC 60601-1:2005 + A1:2012/AMD1:2012
- ISO 80601-2-13:2011/AMD1:2005

• Included per module:
- 1x customized power strip (as per customer specification)
- 1x MEDX pull-out safety green kit
- 1x socket key

• Manufacturer warranty: 5 years
