Baaske Medical 2011536
Baaske power strip MEDX ZPA 5 compartment 3m

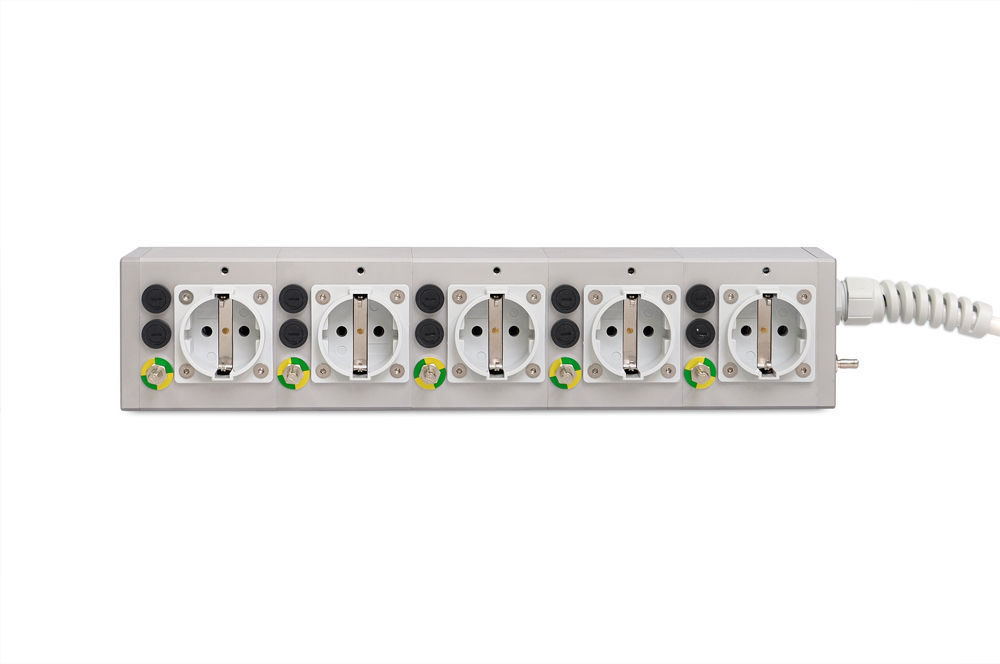

Modular 5-socket power strip TÜV certified
Modular. Customizable. Unique.

The MEDX ZPA power strip offers the ideal solution for systems requiring flexible and secure power distribution. This 5-socket power strip perfectly balances load management and space efficiency, and can be tailored to meet individual requirements. Its modular design allows for configuration without compromising on essential safety features. Each module is equipped with an additional potential equalization (ZPA) and two G-fuses, providing the highest level of safety. The strip also features an additional potential equalization on the housing, enabling it to function as a local ZPA distributor.

Designed specifically for medical applications, the MEDX ZPA power strip is TÜV-certified for use with anesthesia equipment and offers double protection for each socket module. A robust 2.5 mm² power cable with kink protection ensures added safety. The pull-off protection prevents accidental changes to the electrical system. Additionally, the power strip can be easily mounted on standard rails or IV stands, making it both versatile and user-friendly. This product, made in Germany, comes with a 5-year warranty.

Technical data:

• Number of outlets: 5

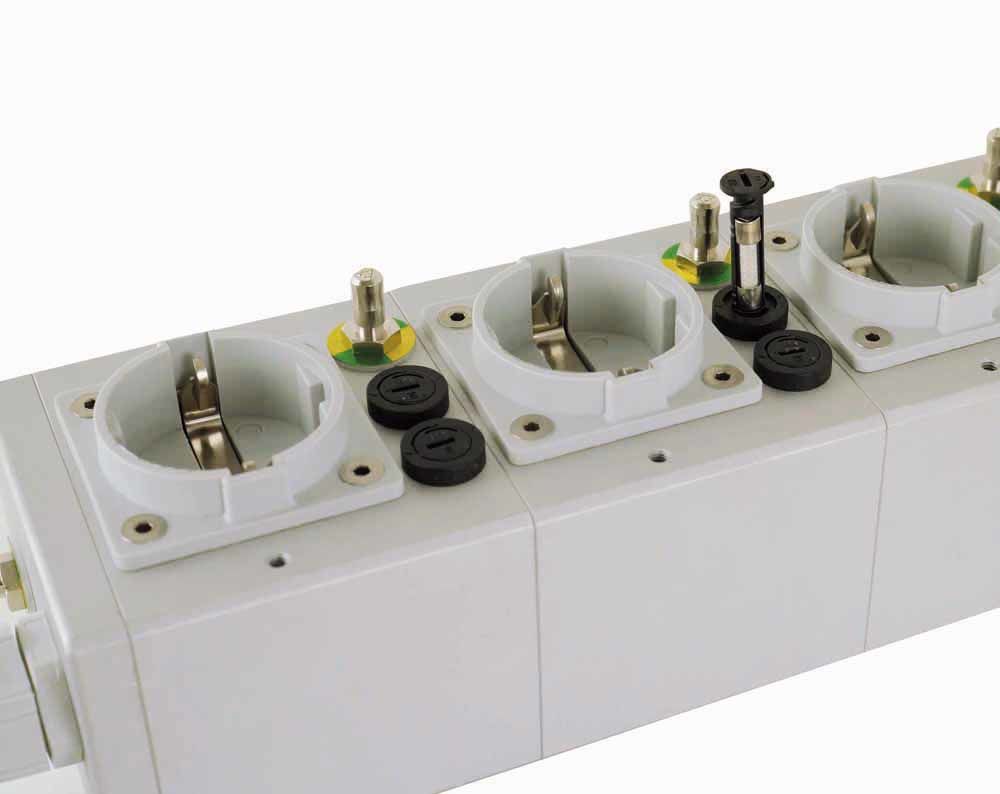

• Fuses: 2 fine fuses 5x 20 mm per module
• Potential equalization: Additional ZPA per module and on the housing
• ZPA plug: According to DIN 42801

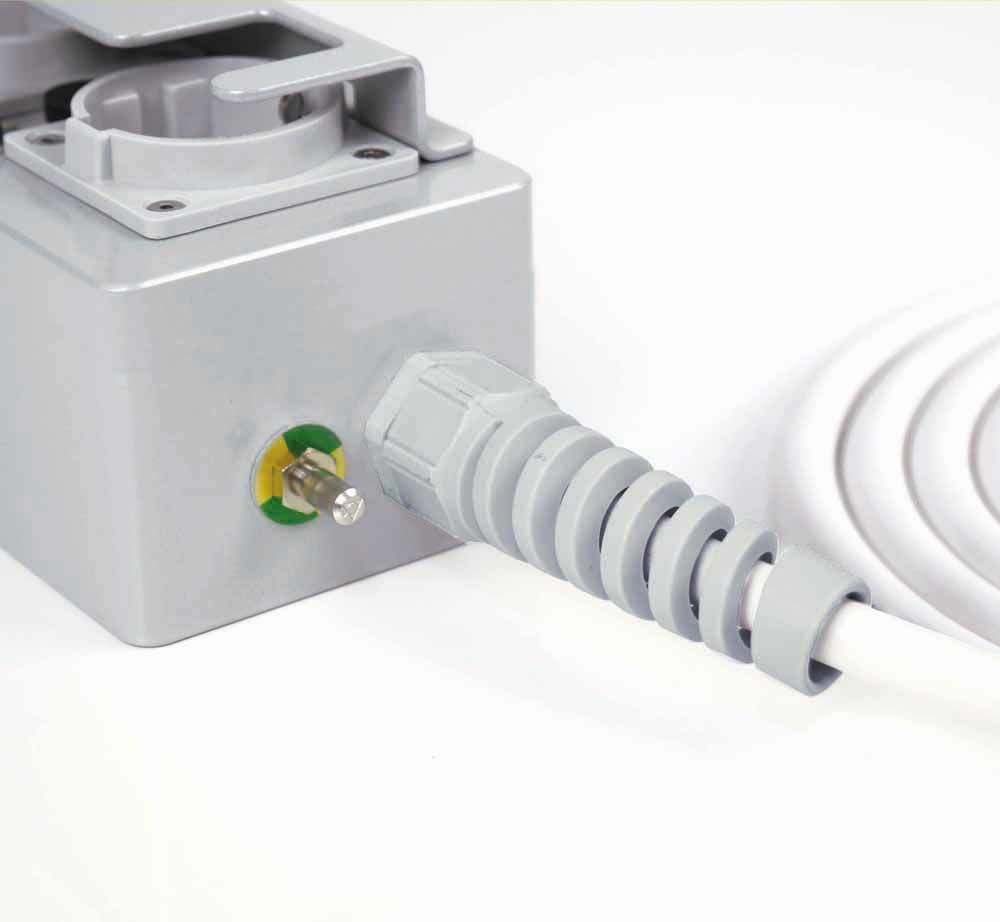

• Power cable: 2.5 mm² with kink protection
• Cable length: 3 m
• Load per outlet: Max. 2000 W
• Total power strip load: Max. 3600 W
• Dimensions per module (LWH): 90 x 78 x 60 mm
• Housing: Anodized aluminum
• Certifications: TÜV-certified, VDE outlets with VDE mark
• Standards: IEC 60601-1:2005 + A1:2012, IEC 60601-1:2005 + A1:2012/AMD1:2012, ISO 80601-2-13:2011/AMD1:2005
• Warranty: 5 years

Included items:

• MEDX ZPA 5-socket power strip
• User manual
• Mounting materials for standard rails or IV stands
• Warranty certificate
